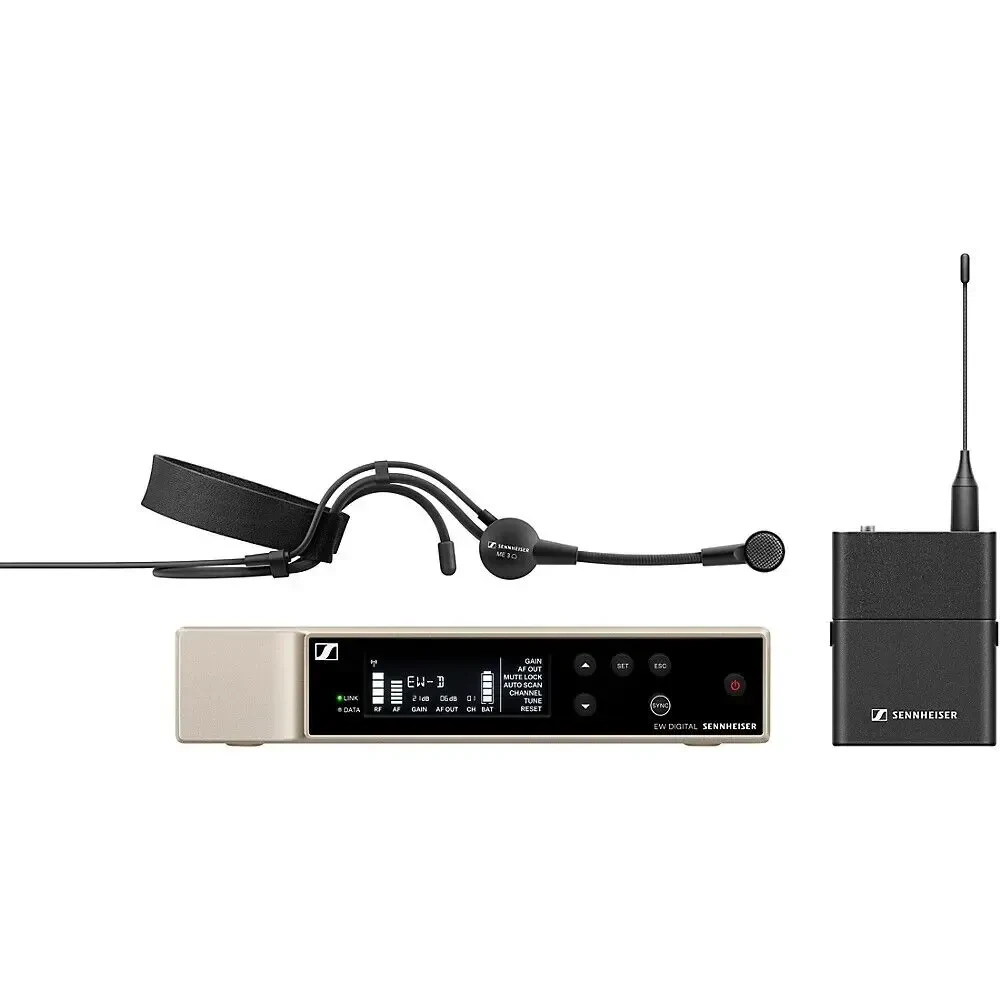

Микрофонная радиосистема Sennheiser EW-D Evolution Wireless Digital System ME3 Headset Microphone Q1-6

Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability

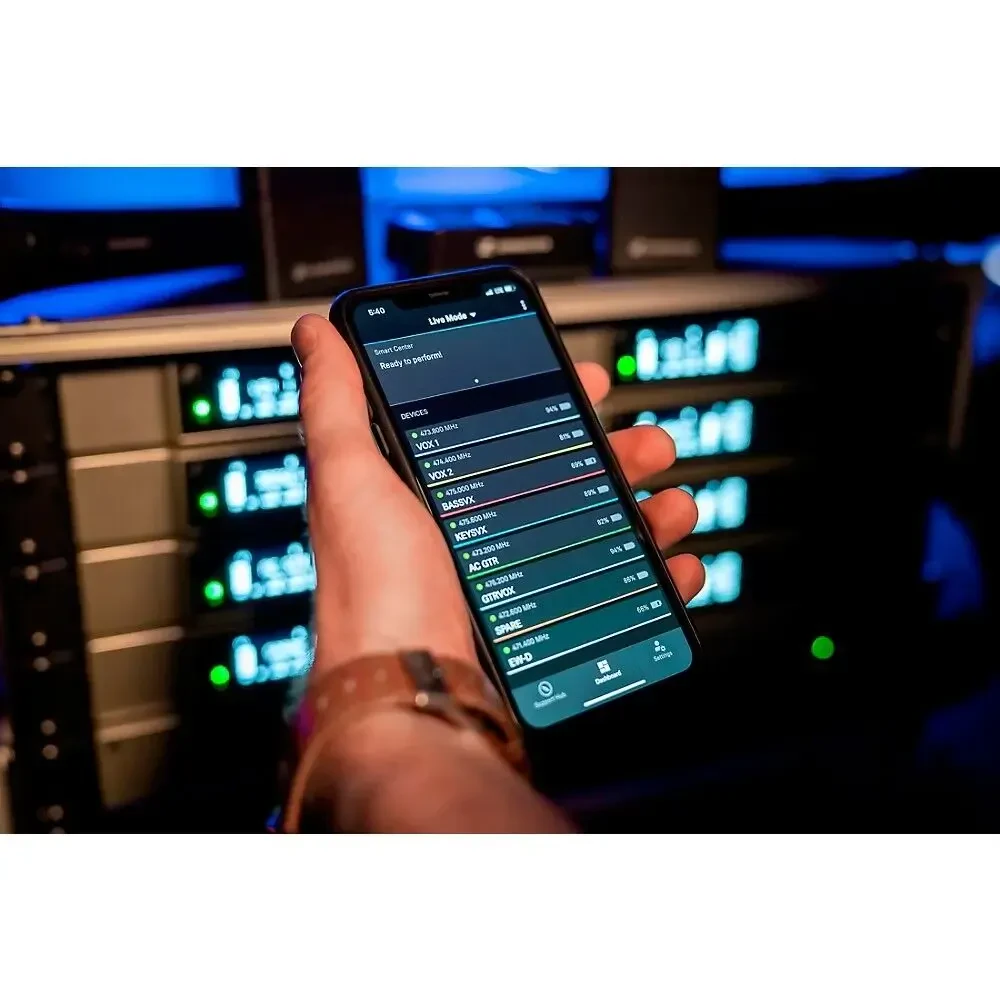

Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies support up to 24 wireless systems per frequency range
Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
56mHz bandwidth will allow for up to 90 channels
Preserves every detail of even the most dynamic performances with 134dB transmitter dynamic range
Delivery includes
EW-D EM rack receiver

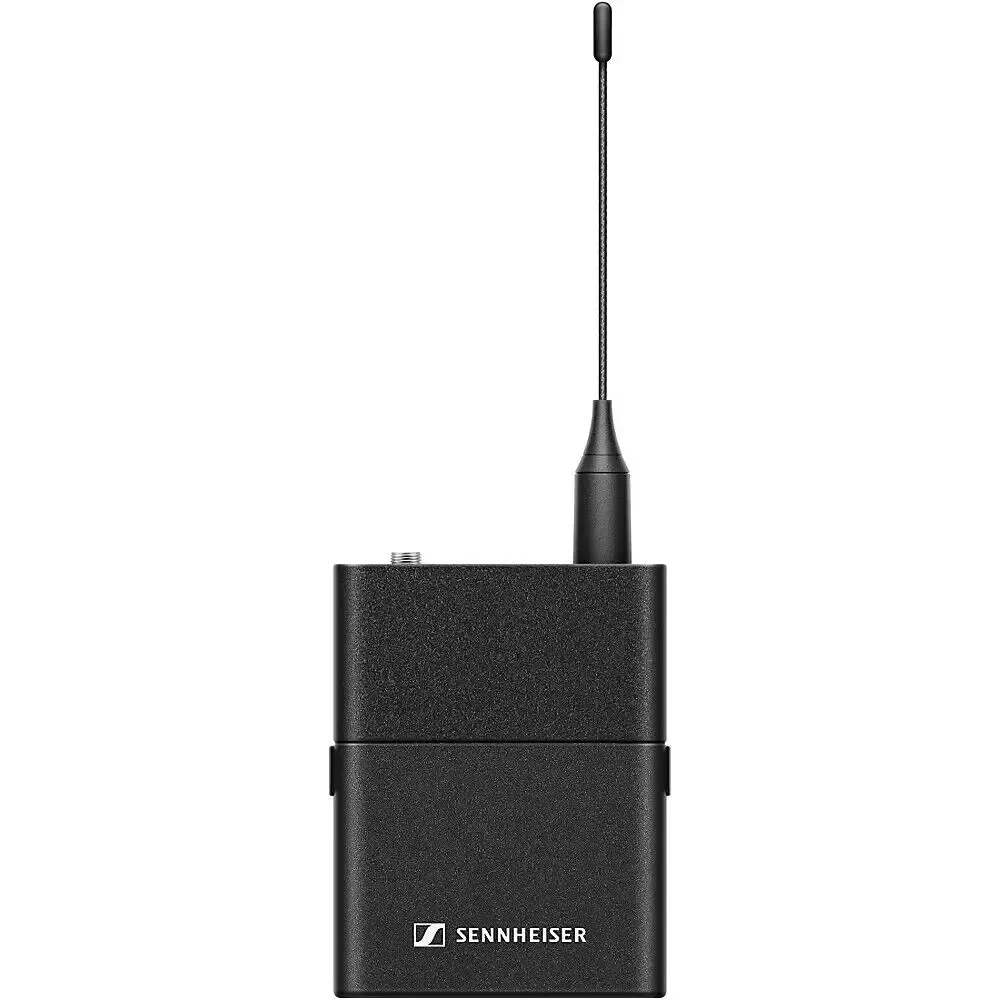

EW-D SK bodypack transmitter
ME 3 headset microphone (cardioid)
2 rod antennas
Power supply with country adapters
Rackmount set
4 rubber feet
Quick guide
Safety guide
Manufacturer declaration sheet
Frequency ranges
Q1-6 (470.2–526 MHz)
R1-6 (520–576 MHz)
R4-9 (552–607.8 MHz)
S1-7 (606.2–662 MHz)
S4-7 (630–662 MHz)
S7-10 (662–693.8 MHz)
U1/5 (823.2–831.8 MHz & 863.2–864.8 MHz)
V3-4 (925.2–937.3 MHz)
V3-4 (1,785.2–1,799.8 MHz)
Bluetooth Low Energy (BLE) frequency range
2402–2480 MHz
Audio frequency response
20 Hz–20 kHz (-3dB) @ 3dBfs
Audio THD
≤ -60dB for 1kHz @ -3dBfs input level
Operating temperature
-10 °C–+55 °C (14 °F–131 °F)
Relative humidity
5–95% (non-condensing)
ME 3 (Headset Microphone)
Transducer principle
Pre-polarized condensor microphone
Pickup pattern
Cardioid
Sensitivity (free field, no load) (1 kHz)
1.6 mV/Pa
Max. SPL at 1 kHz
150dB
Frequency response
50 Hz to 18 kHz
Connector
3.5 mm jack
Cable length approx.
1.60 m
