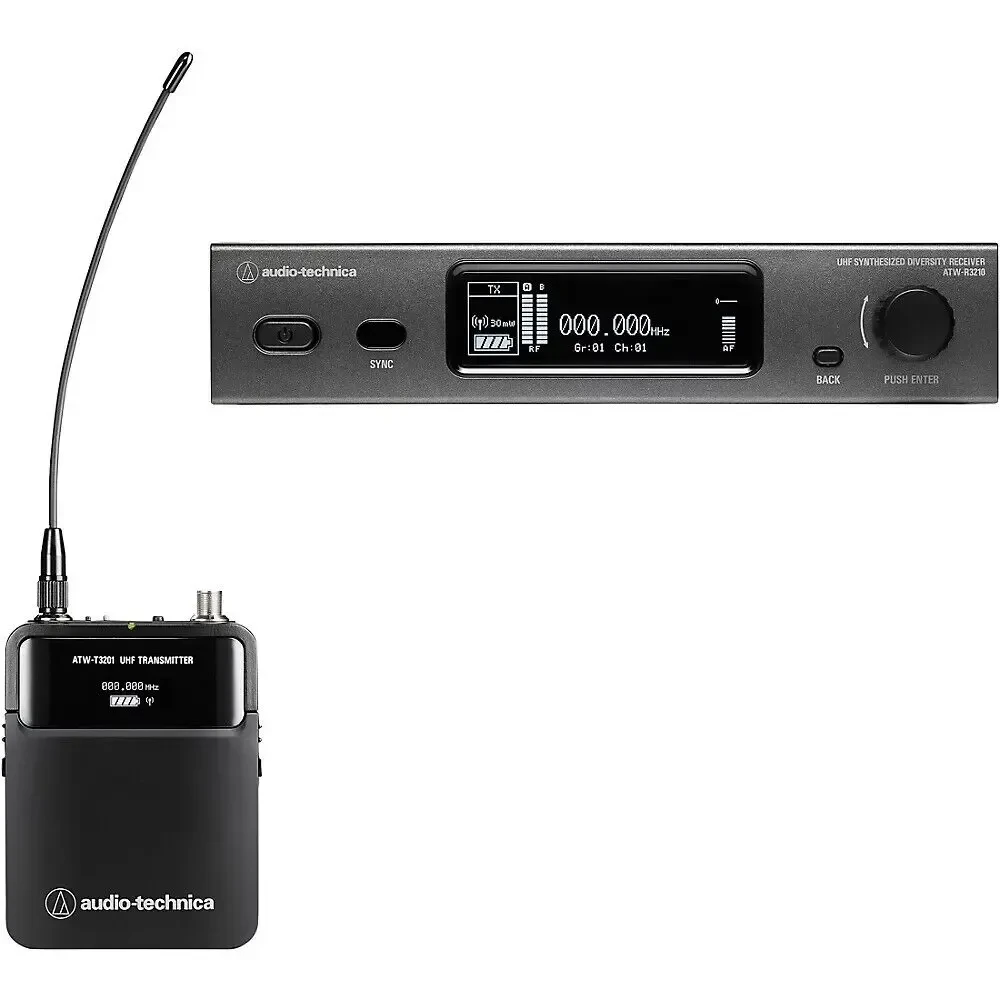

Микрофонная радиосистема Audio-Technica ATW-3211 Frequency-agile UHF Wireless Systems Band EE1

Overall System
Operating Frequencies
Band DE2: 470.125 – 529.975 MHz
UHF Band EE1: 530.000 – 589.975 MHz
Minimum frequency step
25 kHz
Modulation Mode
FM
Maximum Deviation
ATW-T3201: ±38 kHz (THD: 10%);
ATW-T3202: ±36 kHz (THD: 10%)
Dynamic Range (A-weighted, typical)
ATW-T3201: Mic input: >115 dB;
ATW-T3201: Inst input: >112 dBl;
ATW-T3202: >115 dB
Total harmonic distortion
<1% (at 1 kHz, ±17.5 kHz deviation)
Operating Range
100m (328’) (open range enviorment with no interfering signals)
Operating Temperature range
–5° C to +45° C (23° F to 113° F)
(battery and LCD performance may be reduced at very low temperatures)
Maximum Simultaneous Use (recommended)
40 channels per band (region and band dependent)
Frequency Response
ATW-T3201: 31 Hz to 15,500 Hz
ATW-T3202: 25 Hz to 16,700 Hz
(Frequency response depends on attached microphone element)
Maximum simultaneous use (recommended): 40 channels per band (region and band dependent)

ATW-R3210 Receiver
Receiving system
True Diversity
Image rejection
60 dB nominal
Maximum output level
XLR Balanced: +14 dBV
6.3 mm (¼") Unbalanced: +8 dBV
Antenna input
BNC-type, 50 ohms
Antenna power
12V DC, 160 mA (combined)
Dimensions
210.0 mm (8.27") W x 191.0 mm (7.52") D
x 43.4 mm (1.71") H
Net weight
1,100 g (38.8 oz), without accessories

ATW-T3202 handheld transmitter
High-pass (low-freq. roll-off)
150 Hz, 6 dB/octave
Batteries
Two 1.5V AA, not included
Battery life
High: 8.0 hours (alkaline); Low: 9.0 hours (alkaline)
High: 9.0 hours (NiMH 1,900 mAh);
Low: 9.5 hours (NiMH 1,900 mAh) (depending on battery type
and use pattern)
Net weight
Without capsule: 200 g (7.1 oz)
With C510 capsule: 330 g (11.6 oz)
With C710 capsule: 314 g (11.1 oz)
