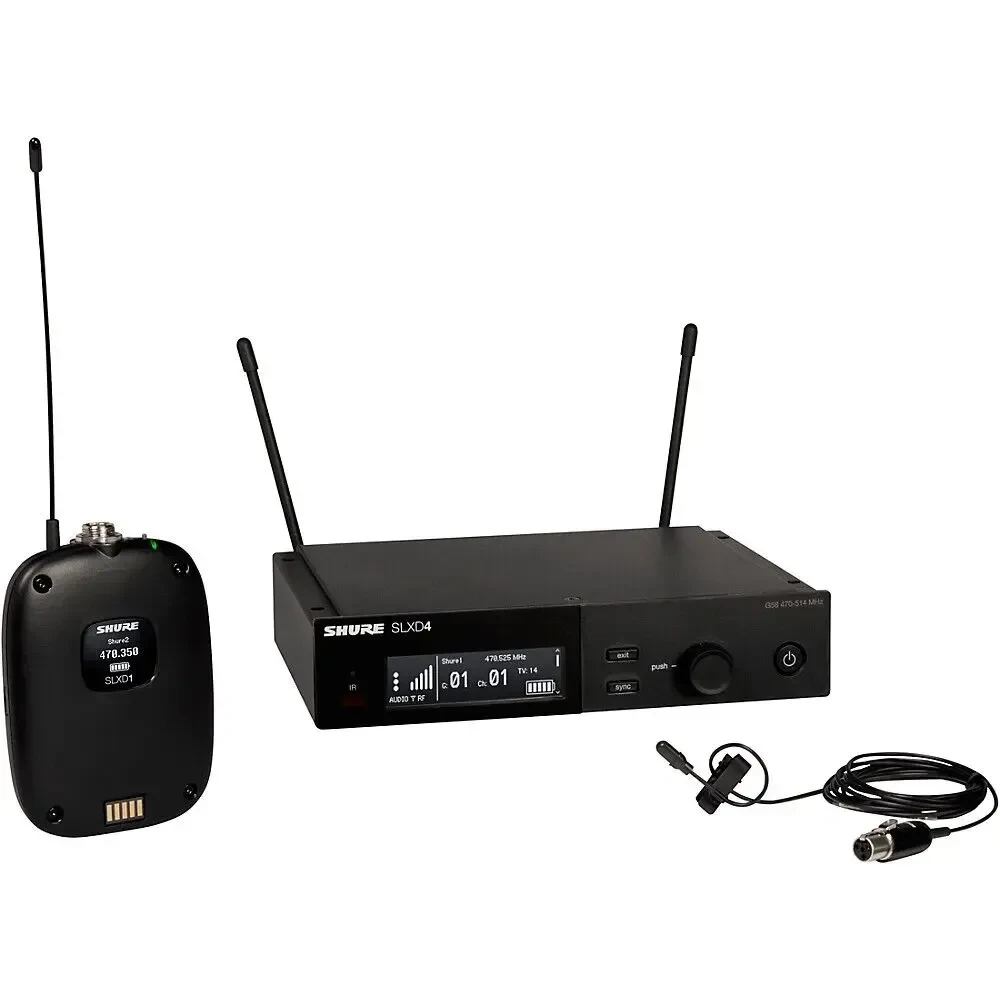

Микрофонная радиосистема Shure SLXD14/DL4 Wireless System w/Bodypack Trans/Receiver/Lavalier Mic Band H55

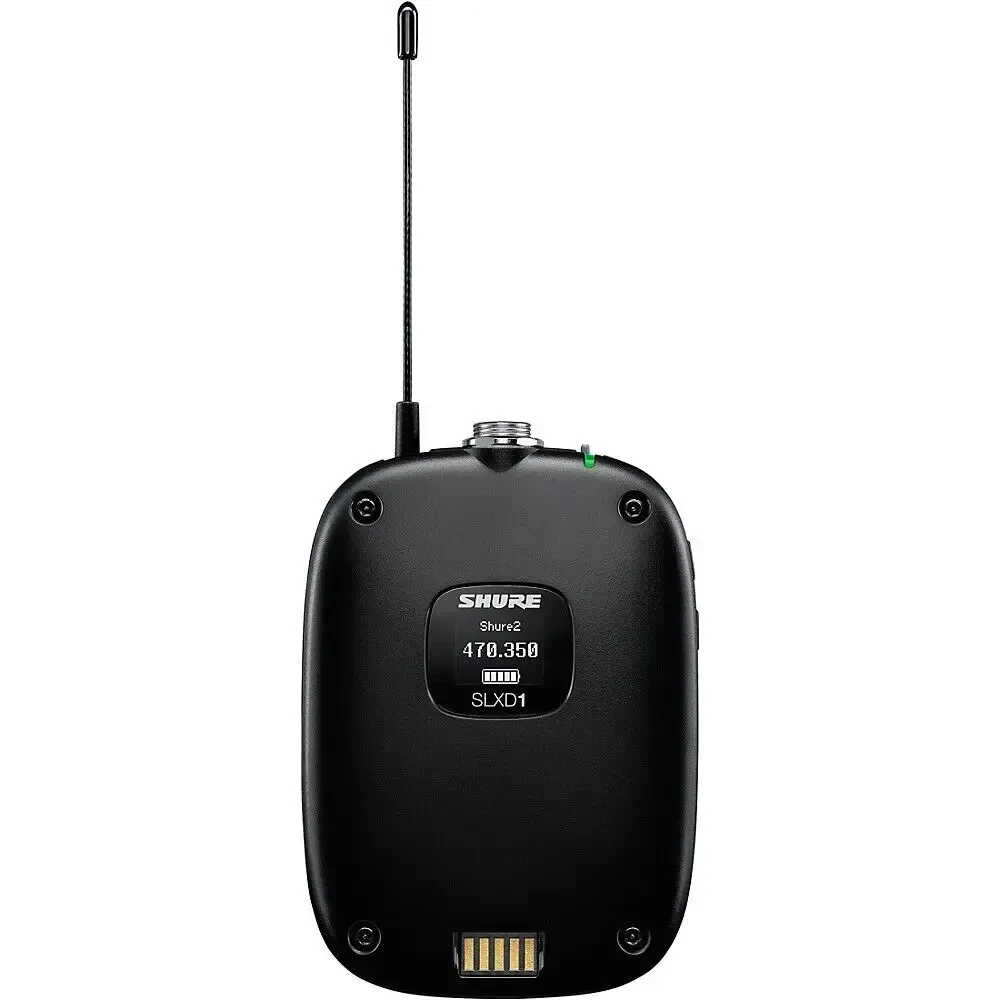

Slxd1 Digital Wireless Bodypack Transmitter
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions: (H × W × D)3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
Weight: 3.1 oz (89 g)
Housing: PC/ABS
Audio Input
Connector: 4-Pin male mini connector (TA4M)
Configuration: Unbalanced
Impedance: 1 MΩ
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Preamplifier Or Equivalent Input Noise (EIN): 118 dBV
FF Output
Antenna Type: 1/4 Wave
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW/10 mW – Varies by region.
Microphone Options
DL4B: DuraPlex Omnidirectional Waterproof Lavalier Microphone
WL183: Omnidirectional Condenser Lavalier Microphone
WL185: Cardioid Condenser Lavalier Microphone
WL93: Omnidirectional Miniature Condenser Microphone
MX153T: Microflex Headworn Earset Microphone, Tan
MX153B: Microflex Headworn Earset Microphone, Black
SM35: Cardioid Condenser Headworn Mic
WB98: H/CBeta® 98H/C Clip-On Condenser Instrument Microphone
WA305: 1/4"Locking Instrument Cable.

SLXD4D Dual-Channel Digital Wireless Receiver
Dimensions: (H × W × D)1.65 × 15.5 × 5.98 in(42 × 393 × 152 mm)
Weight : 3.2 lb (1451 g)without antennas
Housing: Galvanized Steel
Power Requirements: 15 VDC @ 600 mA
Supplied by external power supply (tip positive)
FF Input
Spurious Rejection: >75 dBTypical
Connector Type: BNC
Impedance: 50 Ω
Audio Output
Gain Adjustment Range: 18 to +42 dB in 1 dB steps
Configuration: 1/4" (6.35 mm): Balanced
(Tip =audio +, Ring=audio –, Sleeve=ground)
XLR: Balanced (1=ground, 2 =audio +, 3=audio –)
Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
XLR (line): 400 Ω (200 Ω Unbalanced)
XLR (mic): 150 Ω
Full Scale Output: 1/4" (6.35 mm): +15 dB differentially
(+9 dBV single)
XLR (LINE setting): +15 dBV
XLR (MIC setting): –15 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection: 1/4" (6.35 mm): Yes, XLR: Yes
Networking
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)

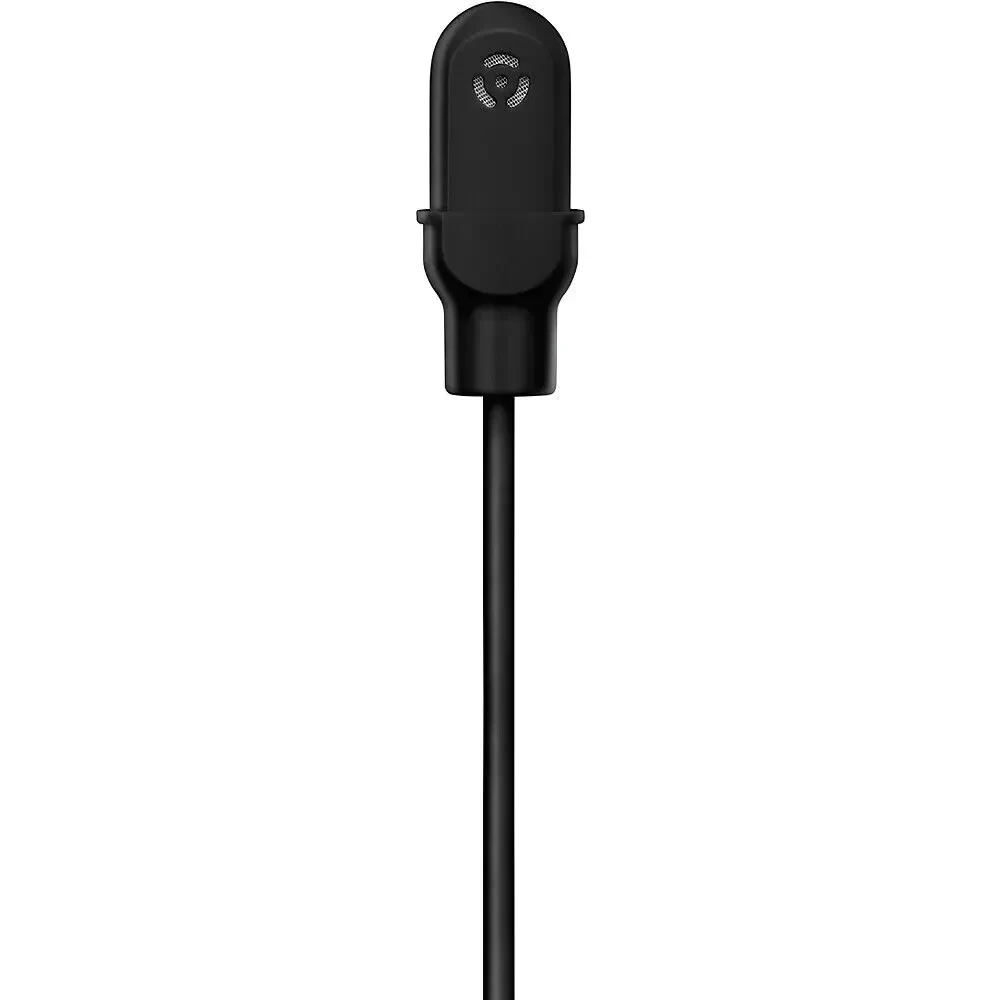

Shure DL4B Lavalier Microphone
Polar Pattern: Omnidirectional
Frequency Response: 20 Hz to 20 kHz
Sensitivity: –42.5 dBV (7.5 mVRMS ) @ 1 kHz, 31 dB SPL-A
Self-Noise: A-weighted, Equivalent Acoustical
Signal-to-Noise Ratio: 63 dB
Maximum SPL: 132.0 dB SPL kHz @ 1% THD, typical, 101.0 dB
Dynamic Range: Typical
Draw: 220 µA, maximum
Bias Voltage : Recommended
Operating Voltage: 5 VDC
Housing: Molded ABS
Polarity: MTQG; Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
Cable Diameter: 1.6 mm
Cable Length: 66.0 in (1.67 m)
Net Weight: 15.0 g (0.53 oz)
Capsule Dimensions : 14.5 mm × 5.2 mm (L × D)
