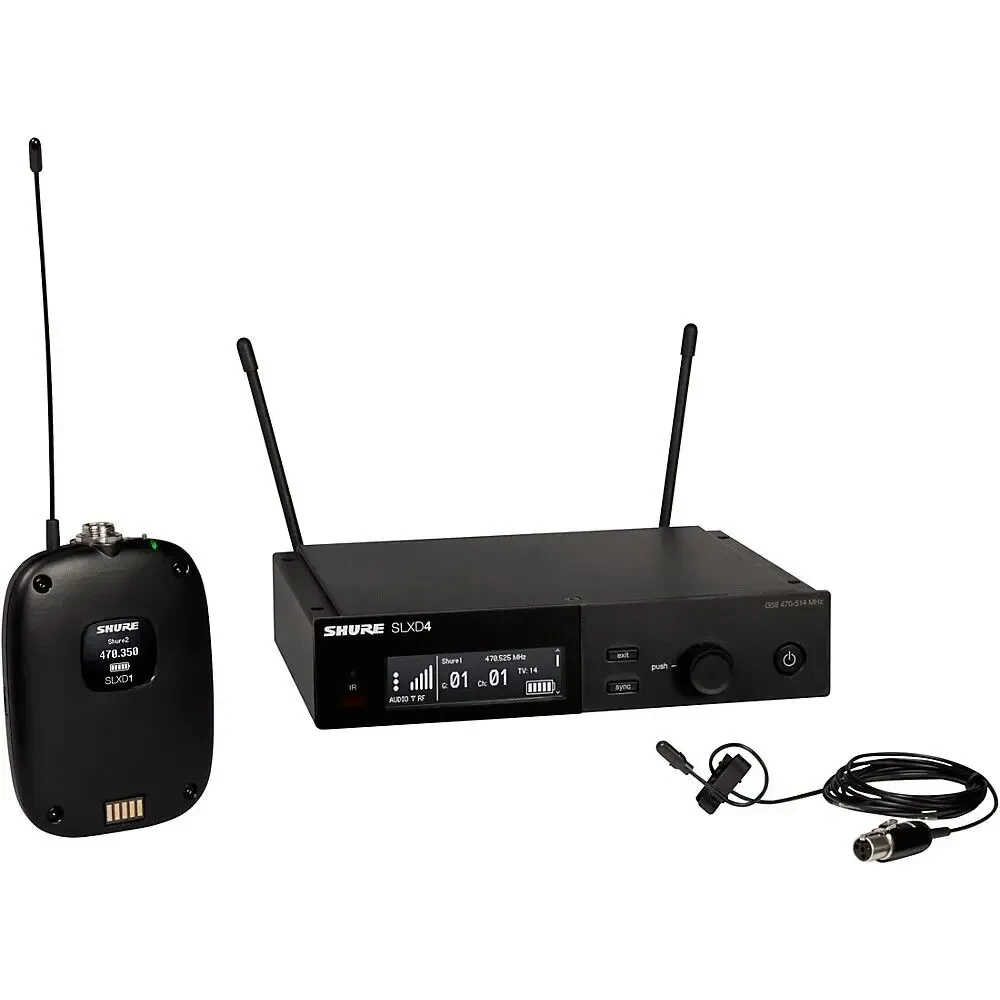

Микрофонная радиосистема Shure SLXD14/DL4 Wireless System w/Bodypack Trans/Receiver/Lavalier Mic Band G58

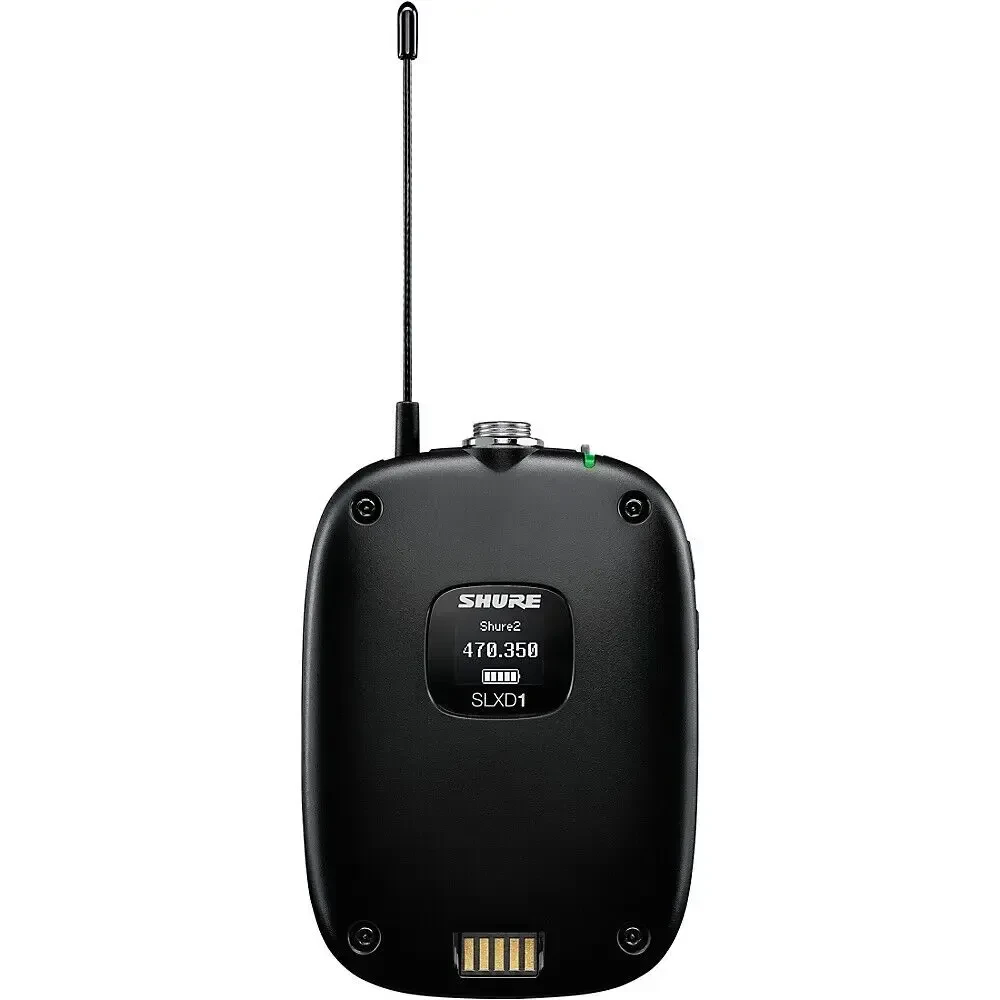

SLXD1 Digital Wireless Bodypack Transmitter
Battery Type: Rechargeable Li-Ion or 1.5V AA batteries
Dimensions (HxWxD): 3.86" x 2.68" x 1"
Weight: 3.1 oz.
Housing: PC/ABS
Audio Input
Connector: 4-Pin male mini connector (TA4M)
Configuration: Unbalanced
Impedance: 1 mohm
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Preamplifier Or Equivalent Input Noise (EIN): 118 dBV
FF Output
Antenna Type: 1/4 Wave
Occupied Bandwidth: <200kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW/10 mW – varies by region
Microphone
DL4B: DuraPlex Omnidirectional Waterproof Lavalier Microphone

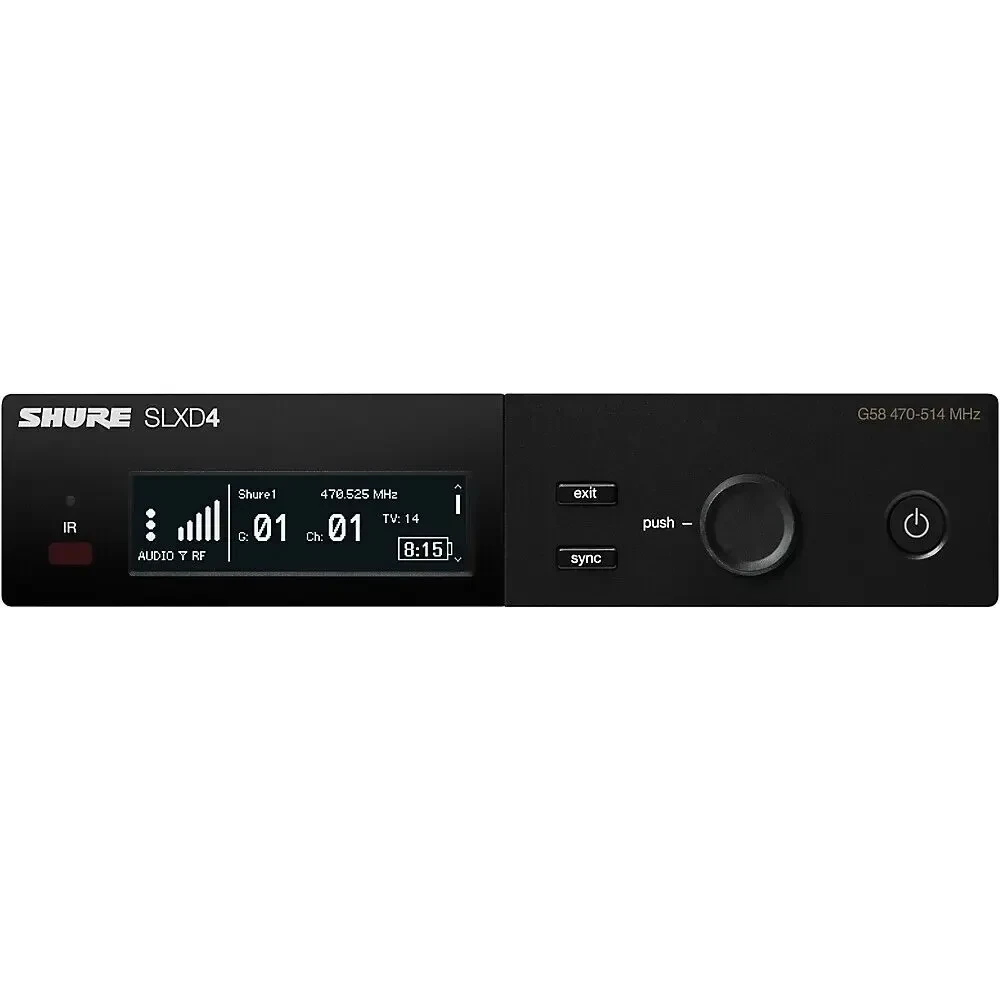

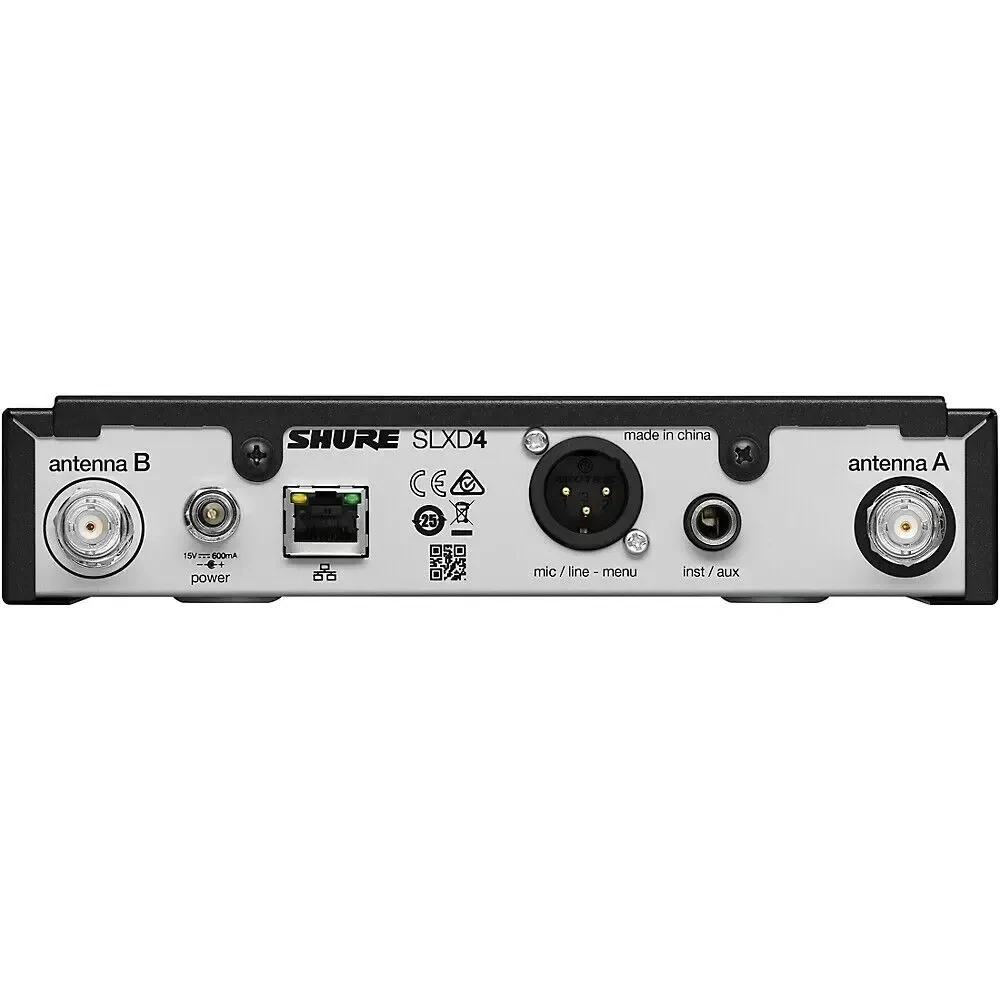

SLXD4D Dual-Channel Digital Wireless Receiver
Dimensions (HxWxD): 1.65" 15.5" x 5.98"
Weight : 3.2 lb. (without antennas)
Housing: Galvanized Steel
Power Requirements: 15 VDC @ 600 mA
Supplied by external power supply (tip positive)
FF Input
Spurious Rejection: >75 dB Typical
Connector Type: BNC
Impedance: 50 ohm
Audio Output
Gain Adjustment Range: 18 to +42dB in 1dB steps
Configuration: 1/4" (6.35 mm): Balanced
(Tip =audio +, Ring=audio –, Sleeve=ground)
XLR: Balanced (1=ground, 2 =audio +, 3=audio –)
Impedance: 1/4" (6.35 mm): 1.3 kohm (670 ohm Unbalanced)
XLR (line): 400 ohm (200 ohm Unbalanced)
XLR (mic): 150 ohm
Full Scale Output: 1/4" (6.35 mm): +15dB differentially
(+9 dBV single)
XLR (LINE setting): +15 dBV
XLR (MIC setting): –15 dBV
Mic/Line Switch: 30dB pad
Phantom Power Protection: 1/4" (6.35 mm): Yes, XLR: Yes
Networking
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328")

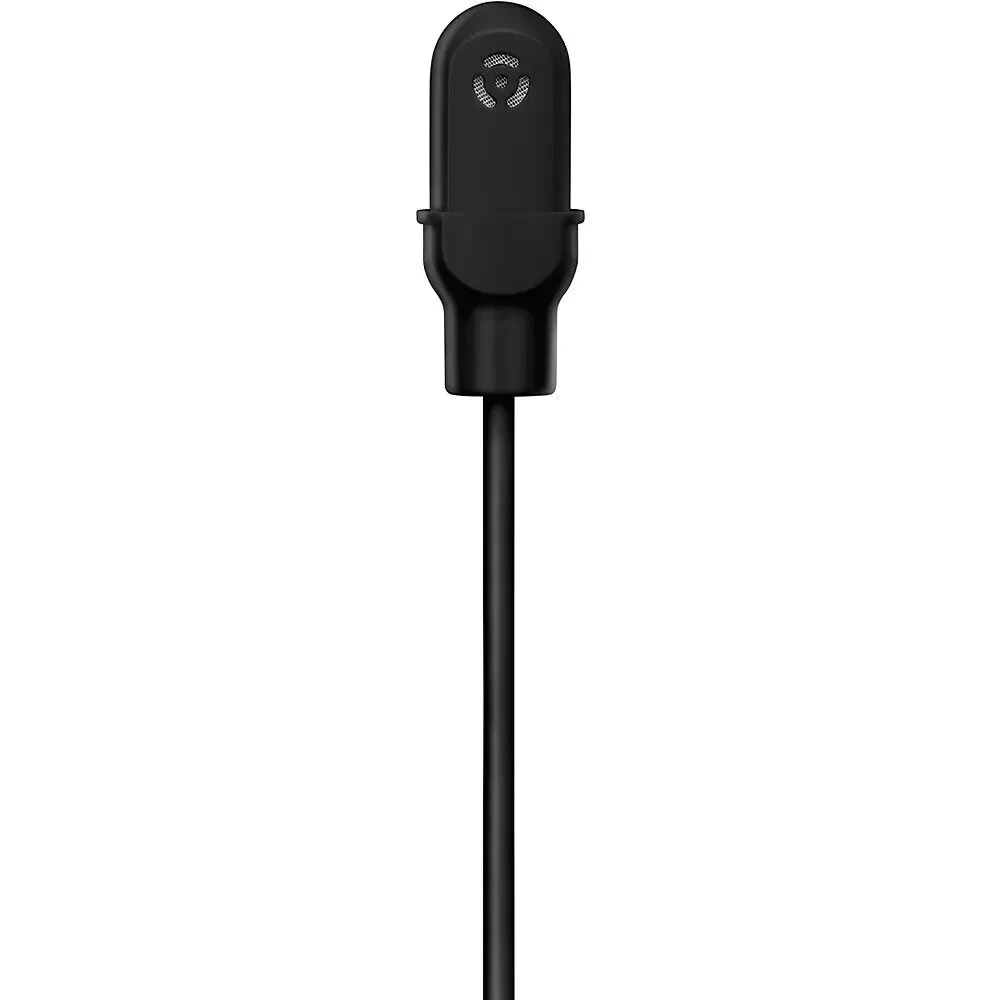

Shure DL4B Lavalier Microphone
Polar Pattern: Omnidirectional
Frequency Response: 20Hz to 20kHz
Sensitivity: –42.5dBV (7.5 mVRMS ) @ 1kHz, 31dB SPL-A
Self-Noise: A-weighted, Equivalent Acoustical
Signal-to-Noise Ratio: 63dB
Maximum SPL: 132dB SPL kHz @ 1% THD, typical, 101dB
Dynamic Range: Typical
Draw: 220 µA, maximum
Bias Voltage : Recommended
Operating Voltage: 5 VDC
Housing: Molded ABS
Polarity: MTQG; Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
Cable Diameter: 1.6 mm
Cable Length: 66" (1.67 m)
Weight: 15 g (0.53 oz.)
Capsule Dimensions (LxD): 14.5 mm x 5.2 mm
