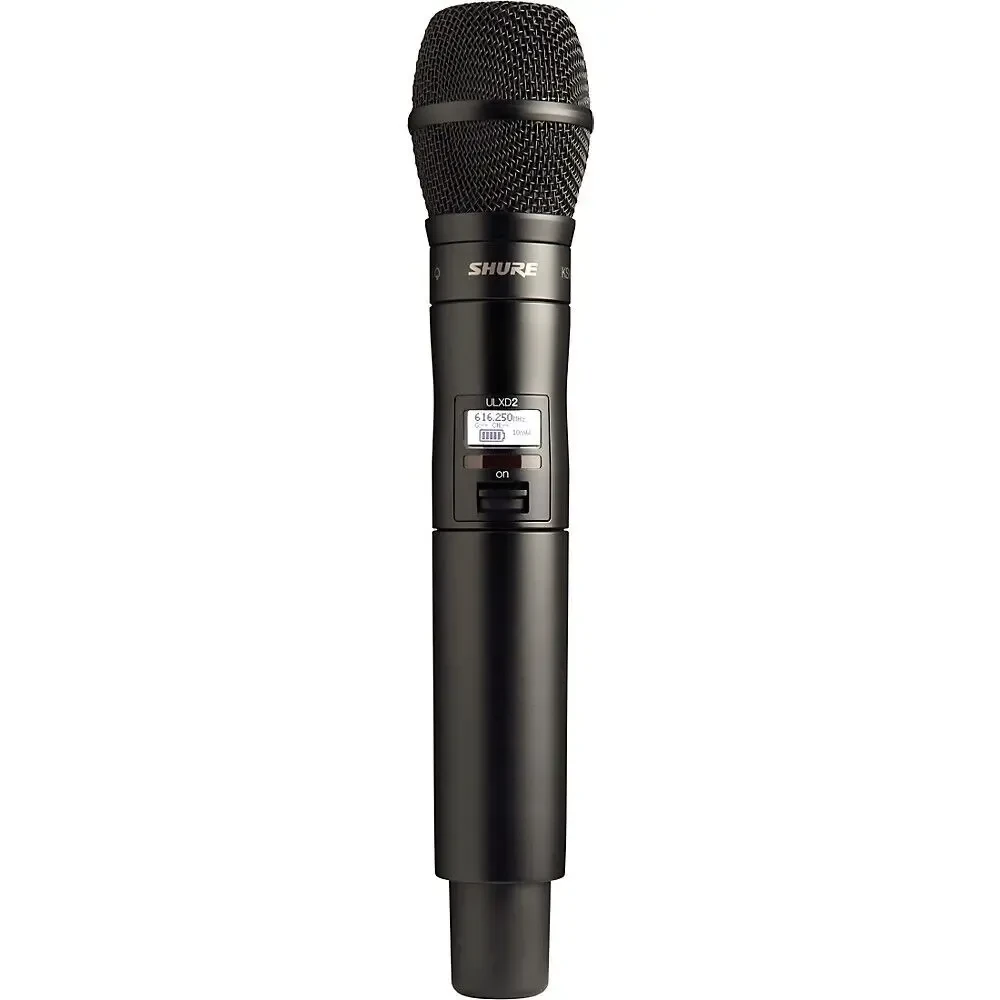

Передатчик для радиосистем Shure ULXD2/KSM9HS Digital Handheld Transmitter with KSM9HS Capsule Band G50

RF Carrier Range 174–216 MHz, 470–865 MHz, 1492–1525 MHz, 1785–1805 MHz
Note: Varies by region (See Frequency Range and Ouput Power table)
Working Range 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz, varies by region
Image Rejection >70 dB, typical
RF Sensitivity -98dBm at 10-5 BER
Latency <2.9 ms
Audio Frequency Response ULXD1: 20 Hz – 20 kHz (±1 dB) ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type
Audio Dynamic Range System Gain @ +10 XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion (−12 dBFS input, System Gain @ +10):<0.1%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range −18 °C (0 °F) to 50 °C (122 °F) Note: Battery characteristics may limit this range.
Storage Temperature Range −29°C (−20°F) to 74°C (165°F) Note: Battery characteristics may limit this range.
