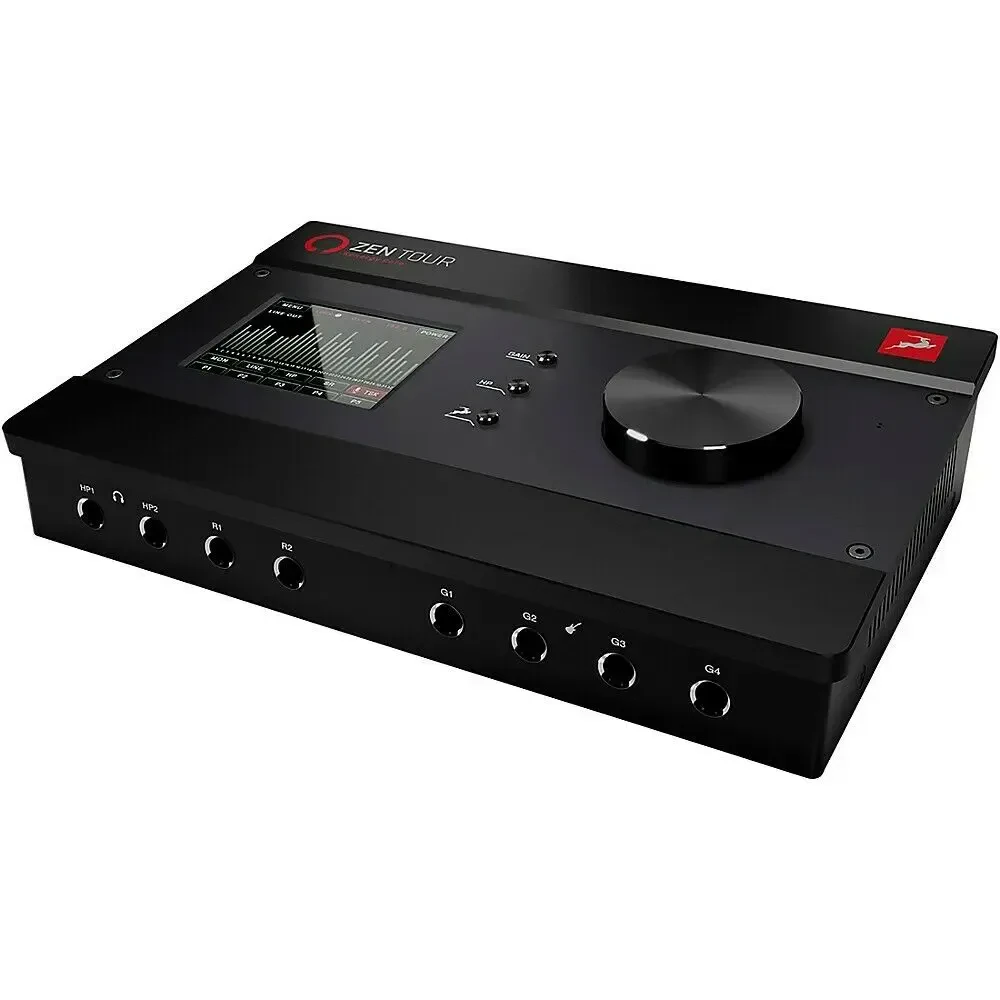

Звуковая карта внешняя Antelope Audio Zen Tour Synergy Core Audio Interface

ANALOG
Analog Inputs
4 x Hi-Z / Line Inputs
4 x Mic / Line Inputs on Combo XLR jacks
Analog Outputs
1 x Monitor Out Pair on TRS 1/4 Jacks, +20 dBu max
8 x Line Outs on TRS, +20 dBu max (DC-Coupled)
2 x Stereo Headphone Outputs
2 x Re-amp Outputs
Mic Preamp
EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input: +20 dBu
Max Gain: 65 dB
D/A Monitor Converter
Dynamic Range: 130 dB
THD + N: -115 dB
D/A Converter (Line Out)
Dynamic Range: 127 dB
THD + N: - 106 dB
DC Coupled
A/D Converter
Dynamic Range: 124 dB
THD + N: -110 dB
DIGITAL
Digital Inputs
1 x ADAT (up to 8CH)
1 x S/PDIF (up to 2CH)
Digital Outputs
1 x ADAT (up to 8CH) also transmitting word clock
1 x S/PDIF (up to 2CH) also transmitting word clock
USB 2.0 I/O
USB 2.0 Type B connector
(Up to 24 channels)
Thunderbolt 3
Thunderbolt 3 Type C connector
(Up to 32 channels)
CLOCKING
Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
OTHER
Operating Temperature
0-50°C, 32-122°F
Weight (Approx)
1.6 kg/ 3.5 lbs
Dimensions (Approx)
Width: 255 mm / 10.0”
Height: 62 mm / 2.4”
Depth: 168 mm /6.6”
Power Consumption
25 Watts
IN THE BOX
Zen Tour Synergy Core Interface
Quick Start Guide
Inline External Power Supply Unit
USB Cable
Warranty Card
System Requirements
WINDOWS
PC: Computer with USB ports and Thunderbolt™ 3 (backwards compatible with Thunderbolt™ 2)
OS: Windows 10 x64 with the latest updates
RAM: 4GB minimum (8GB or more recommended)
CPU: Intel Core i3™ or AMD FX and higher
MAC
Model: Apple Mac 2012 or newer with USB ports and Thunderbolt™ 3 (backwards compatible with Thunderbolt™ 2)
OS X: macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)
Memory: (RAM)4GB minimum (8GB or more recommended)
Additional Info: Internet connection required for product activation.
