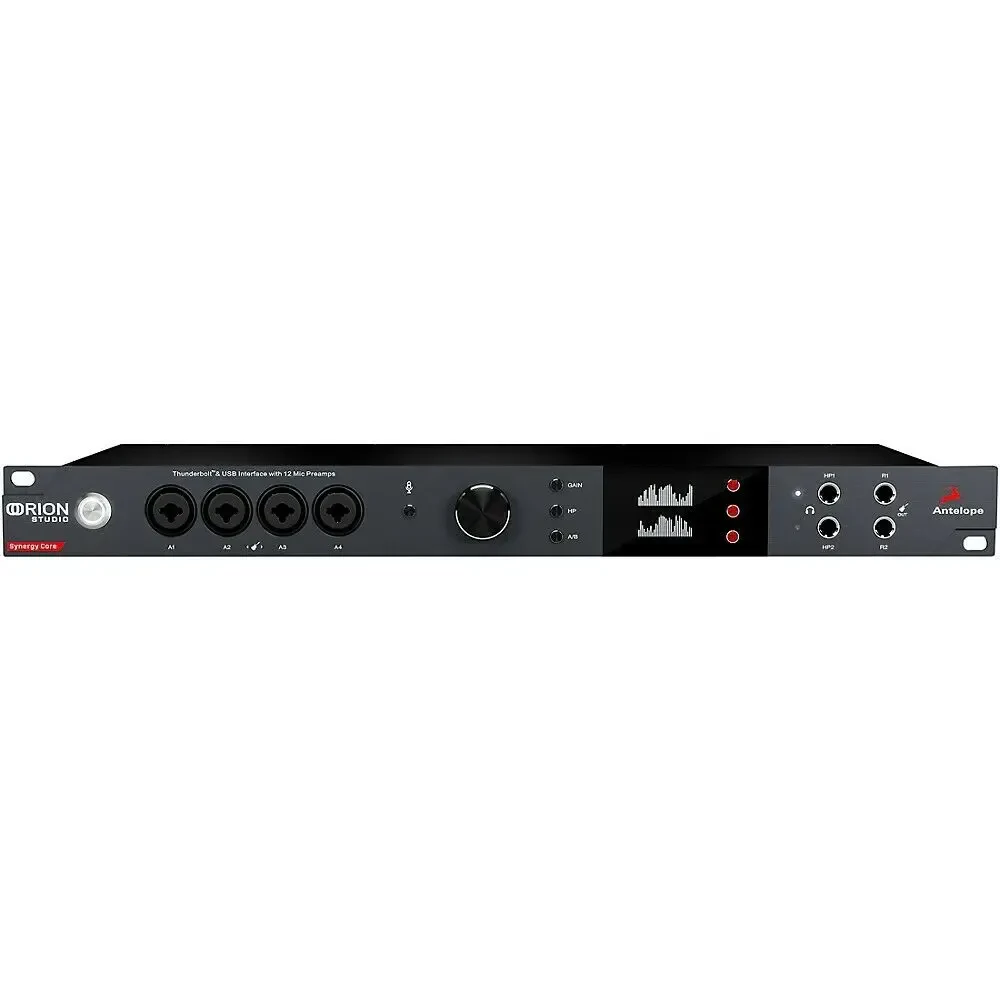

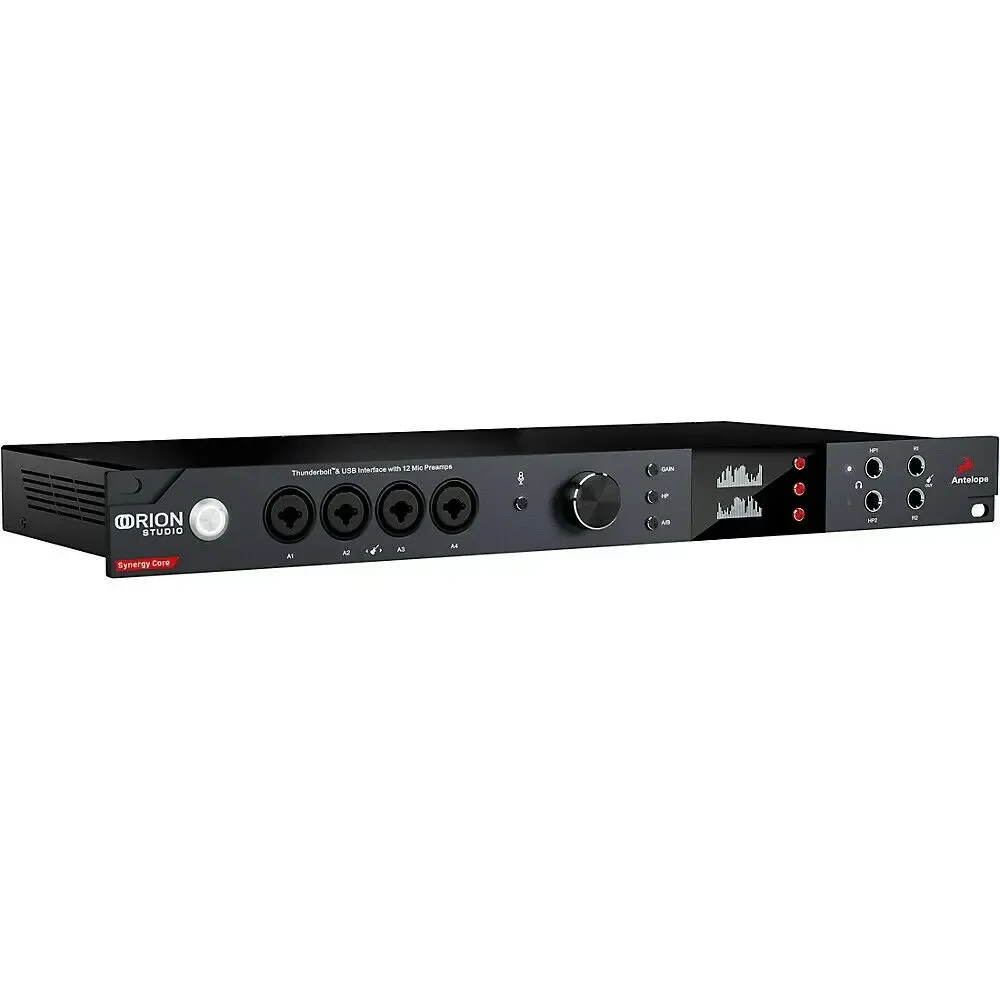

Звуковая карта внешняя Antelope Audio Orion Studio Synergy Core

ANALOG
Analog Inputs
8 x Mic / Line Inputs / Direct In
4 x Mic / Line / Hi-Z Inputs / Direct In
Analog Inserts
2 x Inserts on TRS (inputs 1,2)
Analog Outputs
2 x Monitor Out on TRS 1/4 Jacks: Can work both simultaneously and in A/B mode
2 x ReAmp Out on TRS 1/4 Jacks
2 x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
2 x Stereo Headphone Outputs
D/A Monitor Converter
Dynamic Range: 130 dB
THD + N: -115 dB
A/D Converter
Dynamic Range: 124 dB
THD + N: -112 dB
D/A Converter
Dynamic Range: 128 dB
THD + N: -115dB
Discrete Mic Preamps
EIN: -128 dBu
Dynamic Range: -121 dB
THD: -106 dB
Max input: +20 dBu
Max Gain: 75 dB
DIGITAL
Digital Inputs
2 x ADAT (up to 16CH)
1 x S/PDIF on RCA
Digital Outputs
2 x ADAT (up to 16CH)
1 x S/PDIF on RCA
USB 2.0 Hi-Speed
USB 2.0 Type B connector
(up to 24 channels)
Thunderbolt™ 3 I/O
Thunderbolt™ 3 connector
(up to 32 channels)
CLOCKING
Word Clock Input
1 × Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Word Clock Outputs
1 × Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven-controlled crystal oscillator
Clocking Stability
<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF
Clock Aging
< 1 ppm per year
Clock Calibration
<+/-0.001 ppm
Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
OTHER
Operating Temperature
0-50°C, 32-122°F
Weight
3.1 kg/ 6.83 lbs (Approx.)
Dimensions (Approx.)
Width: 483 mm / 19”
Height: 44 mm / 1.7”
Depth: 220 mm /8.6”
Electrical specs
DC Universal input: 18V
Power Consumption: 25 Watts Max
In the box
Orion Studio Synergy Core Thunderbolt™ 3 and USB AD/DA Interface with 12 Discrete Mic Pres
Quick Start Guide
Warranty Card
1 In-Line DC Power supply
1 USB cable
System Requirements
WINDOWS
PC: Computer with Thunderbolt™ 3 and/or USB ports
OS: Windows 10 x64 with the latest updates
RAM: 4GB minimum (8GB or more recommended)
CPU: Intel Core i3™ or AMD FX and higher
MAC
Model: Apple Mac 2012 or newer Thunderbolt™ 3 and/or USB ports
OS X: macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)
Memory: (RAM)4GB minimum (8GB or more recommended)
Additional Info: Internet connection required for product activation.
