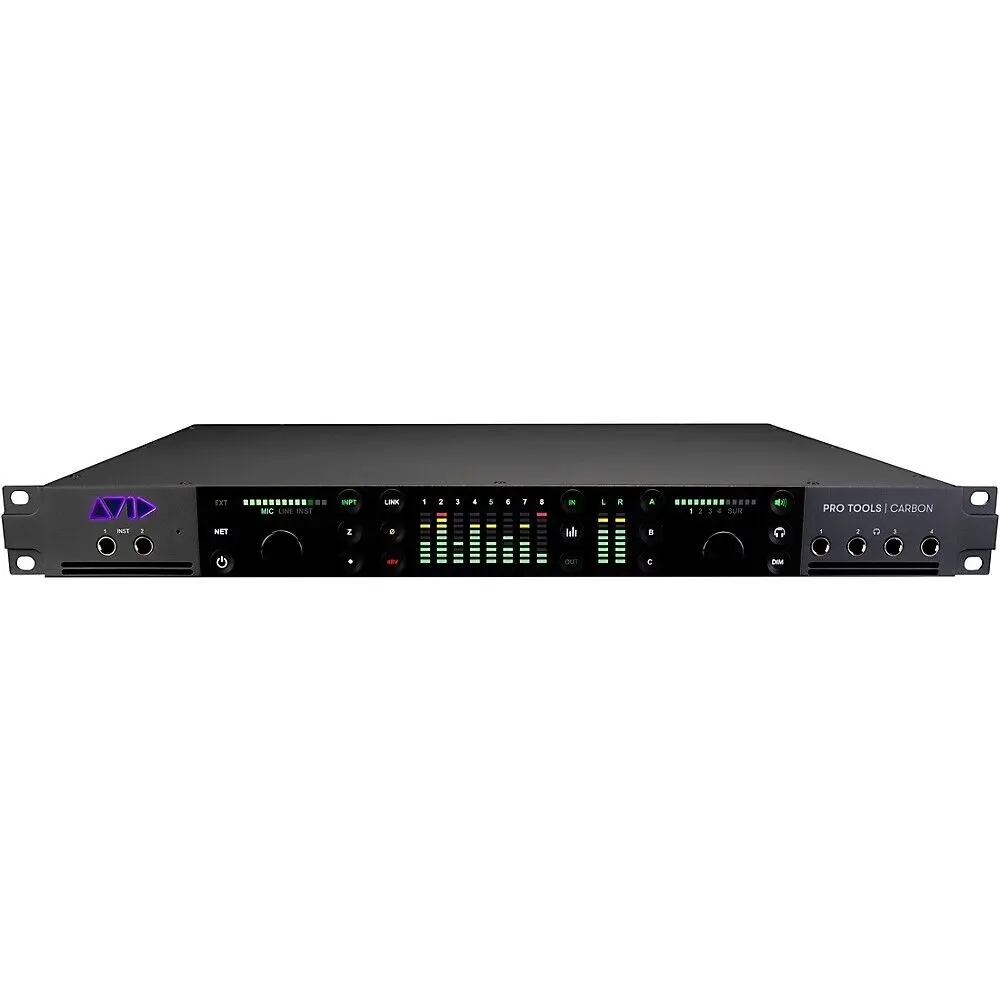

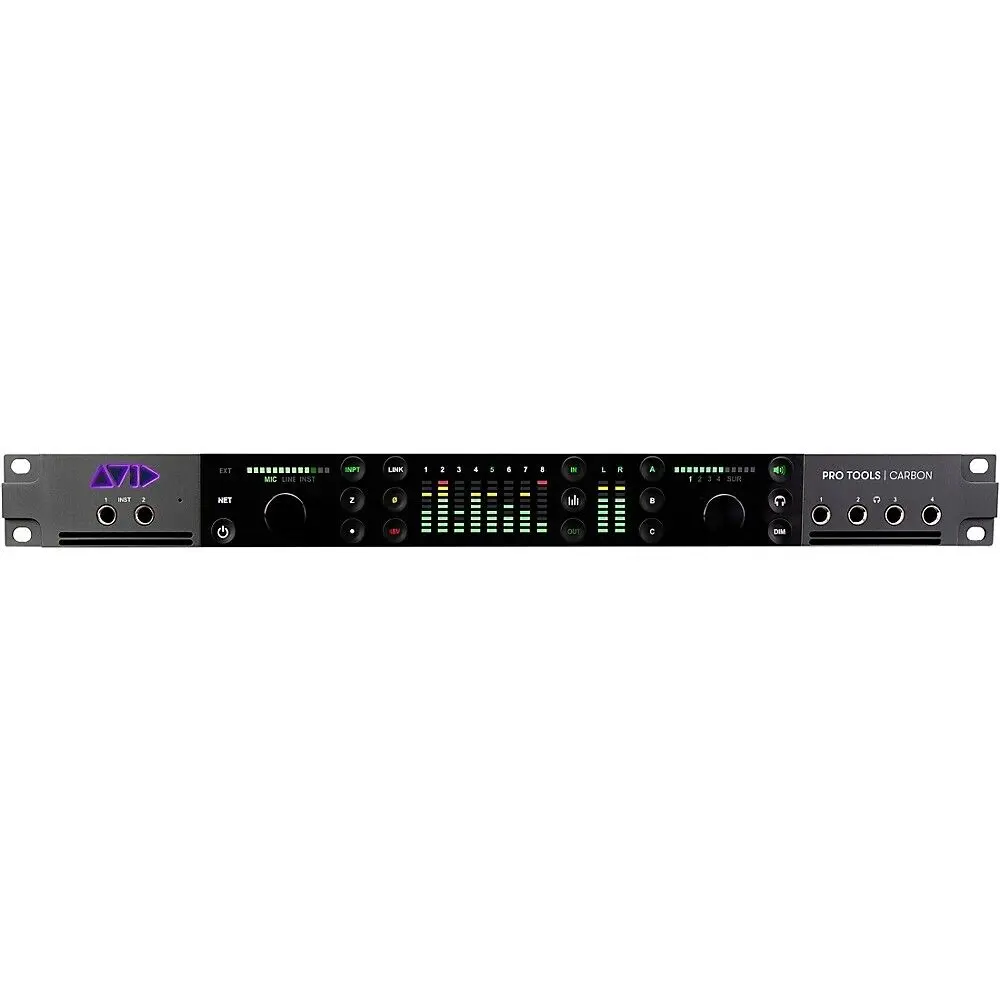

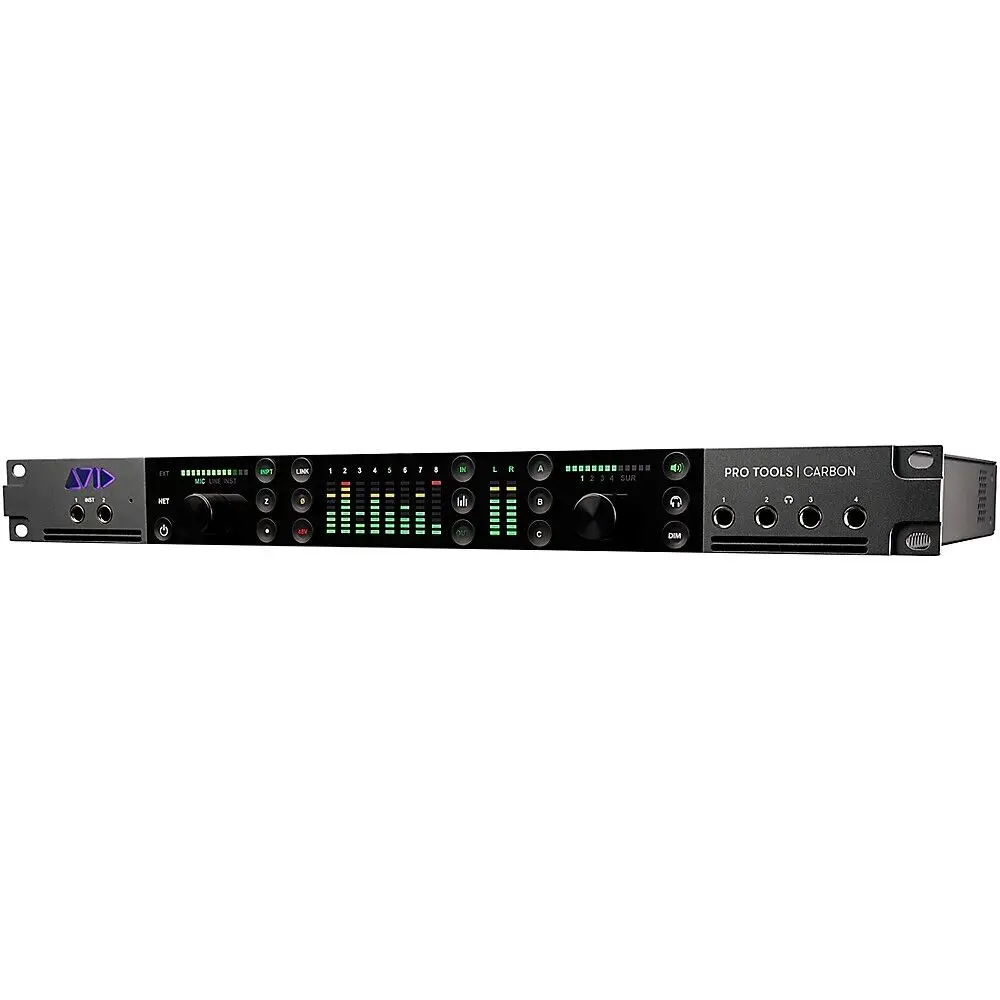

Звуковая карта внешняя Avid Pro Tools | Carbon Hybrid Ethernet Audio Interface

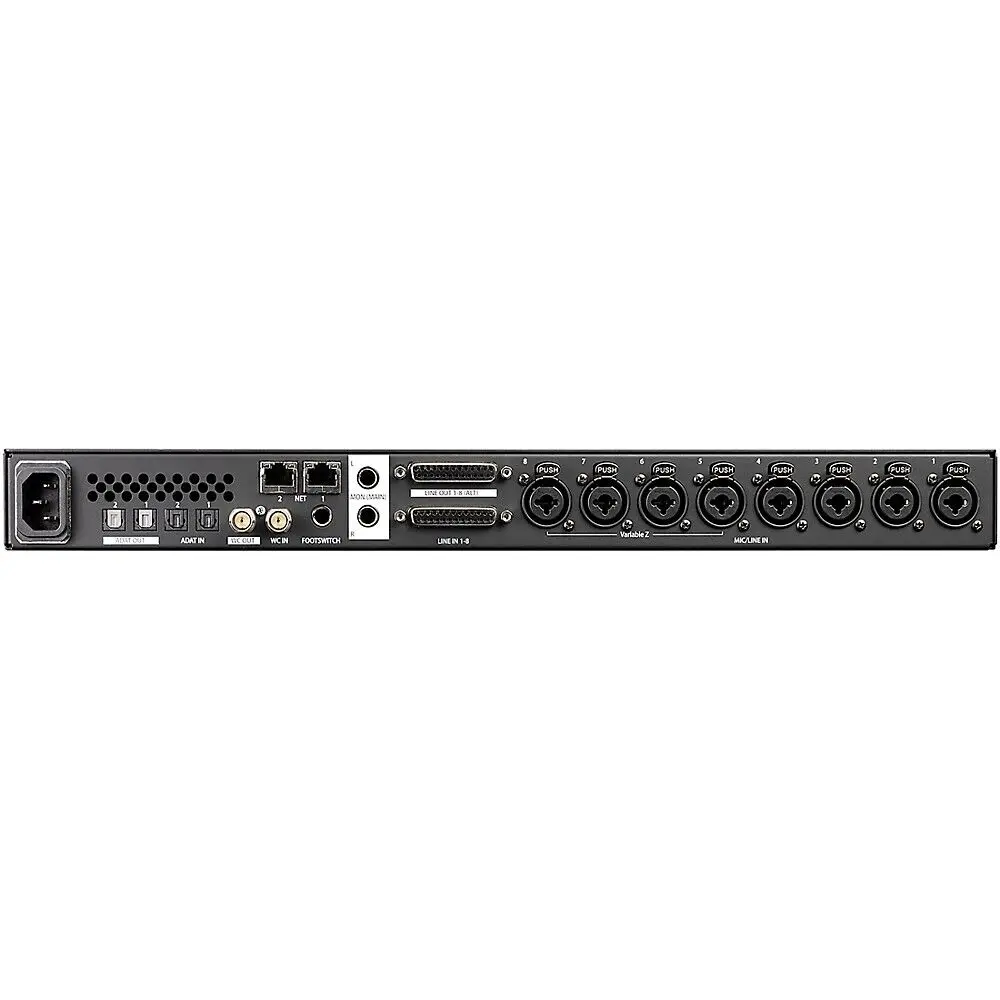

Combo mic/line inputs
8 balanced XLR/TRS with Variable Z (impedance) on inputs 5–8
DB25 line inputs:
8 balanced via 25-pin D-sub
Instrument (Variable Z) inputs:
2 unbalanced 1/4" TS
Digital inputs:
ADAT: 16 channels @ 44.1–96kHz
ADAT: 8 channels @ 176.4–192kHz
A/D Conversion
Mic preamps:
Dynamic Range: 126 dB (A-weighted)
THD+N: -105 dB (0.00056%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB
EIN: -129 dB (A-weighted)
Line inputs:
Dynamic Range:125 dB (A-weighted)
THD+N: -106 dB (0.0005%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB
Line inputs (true bypass):
Dynamic Range: 126 dB (A-weighted)
THD+N: -113 dB (0.00022%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB
Instrument inputs:
Dynamic Range: 125 dB (A-weighted)
THD+N: -103 dB (0.0007%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB
Outputs
DB25 line outputs:
8 balanced via 25-pin D-sub
Monitor outputs: 2 balanced ¼-inch TRS
Headphone outputs 4 stereo ¼-inch TRS
Digital outputs:
ADAT: 16 channels @ 44.1–96 kHz
ADAT: 8 channels @ 176.4–192 kHz
D/A Conversion
Line outputs:
Dynamic Range: 120 dB (A-weighted)
THD+N: -110 dB (0.0003%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB
Monitor outputs:
Dynamic Range: 120 dB (A-weighted)
THD+N: -110 dB (0.0003%)
Frequency Response:
20 Hz–20 kHz, ±0.1 dB
Headphone outputs:
Power:100 mW into 300 ohm; 200 mW into 32 ohm
Dynamic Range: 116 dB (A-weighted)
THD+N (32 ohm): -87 dB (0.0045%)
THD+N (300 ohm): -100 dB (0.001%)
Frequency Response: 20Hz–20kHz, ±0.1 dB

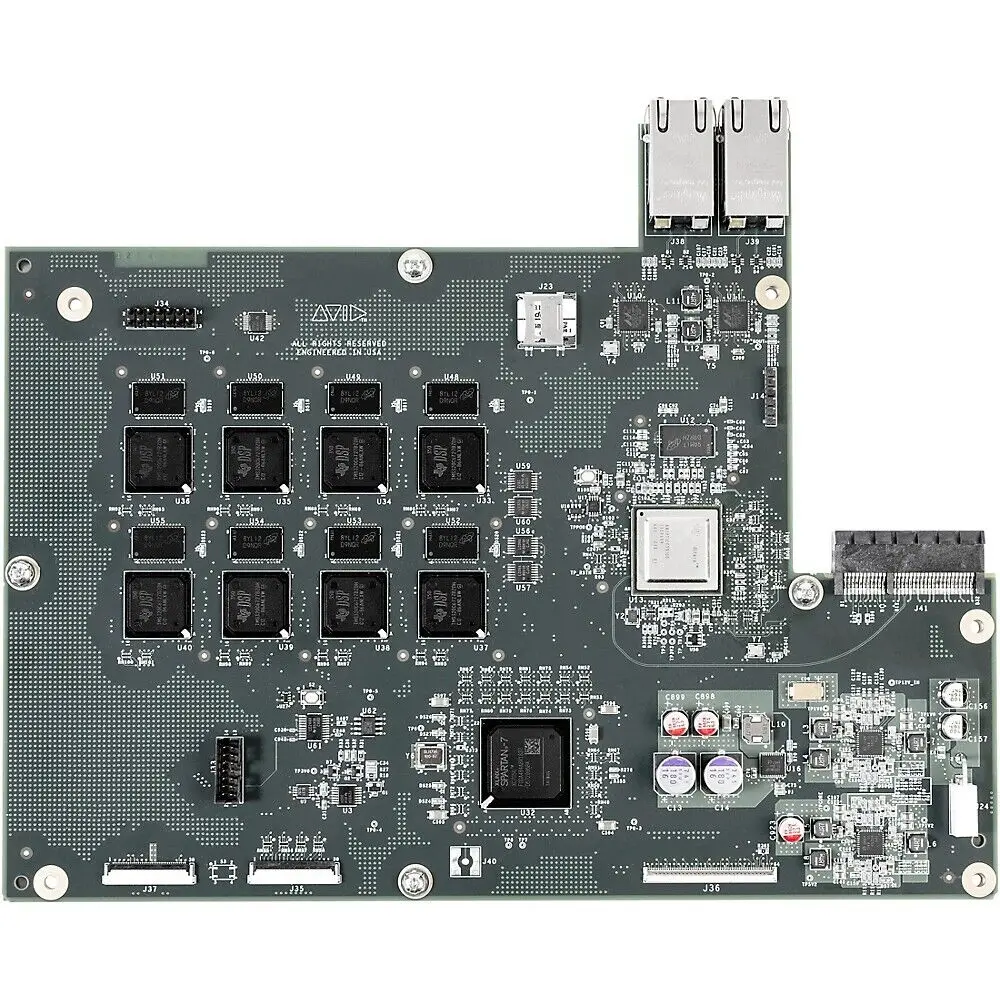

DSP Acceleration
HDX DSP 8:
HDX DSP processors (2.8 GHz aggregated processing)
Additional Specifications
Supported sample rates:
44.1kHz–192kHz; 32-bit, 192 kHz max
Host connection:
Ethernet
Power supply:
Single (internal)
Chassis:
1U 19" rackmountable unit
