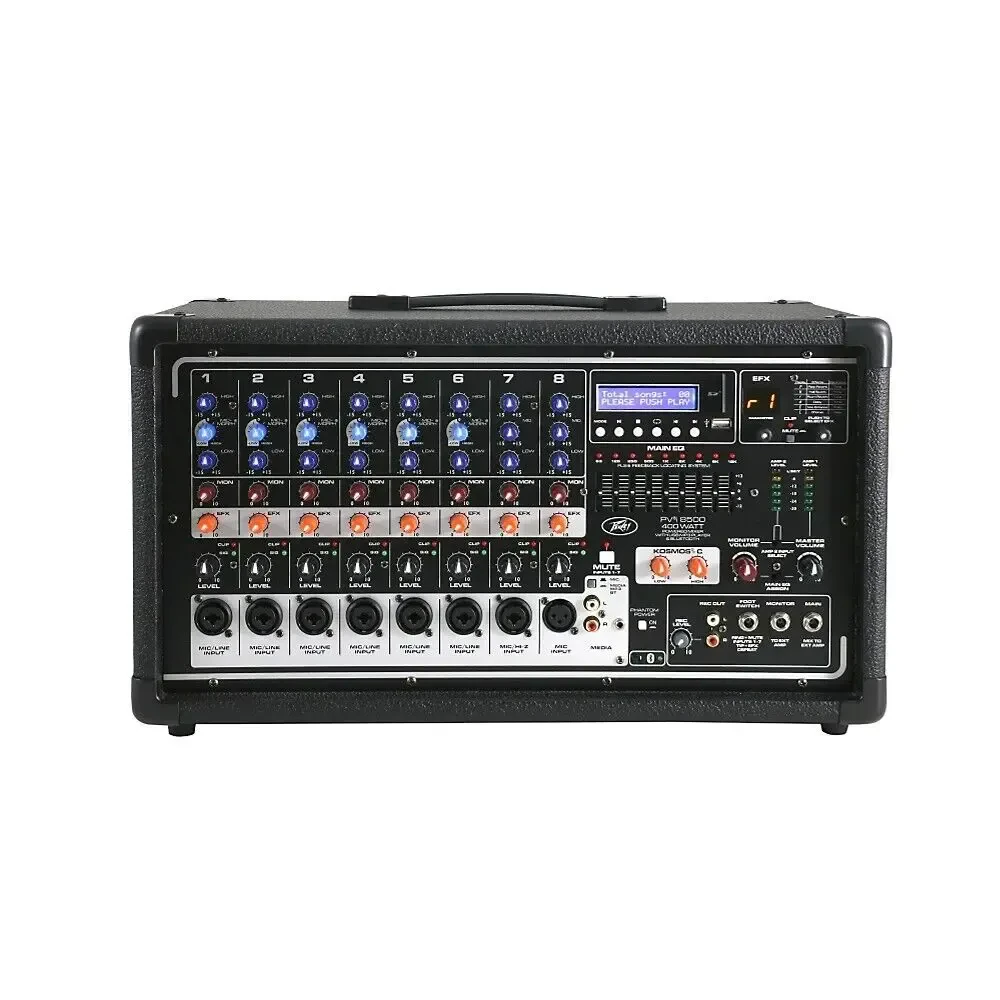

Микшер с усилителем Peavey PVi 8500 400W

INPUT SENSITIVITY
Mic In to full power at the power amp. Master Volume Nom.
Full: -40 dBu
Nominal: -22 dBu
Line In to full power at the power amp. Master Volume Nom.
Full: -10 dBu
Nominal: +8 dBu
CHANNEL EQ
Shelving EQ
Low: EQ 80Hz ±15dB
Mid-Morph
Low: 250Hz ±15dB
High: 4kHz ±15dB
High: EQ 12kHz ±15dB
CLIP LED
Clip LEDs come on 3 dB before clipping
FREQUENCY RESPONSE
All controls nominal (detent)
Mic to Main 20Hz–20kHz +0, -1dB
Line to Main 20Hz–30kHz +0, -1dB
Mic to Amp 50Hz–20kHz +0, -3dB
Line to Amp 40Hz–20kHz +0, -3dB
PHANTOM POWER
+48 Volts
NOISE
Main = Main line output, 22–22kHz filter
Amp 1 = Amplifier output, loaded at 4 ohms, through AP
AUX-0025 switching amplifier filter
All controls full down
Main: <-95 dBu
Amp: 1 <-70 dBu
Master Volume nominal
Main: <-88 dBu
Amp: 1 <-67 dBu
THD
All controls nominal
<0.01% @ main line output, -30 dBu in mic input Channel 1
<0.5% @ amp 1 @ 100 watts into 4 ohms
All controls nominal
<0.005% @ main line output, +4 dBu in line input Channel 1
MASTER EQ
63Hz ±12dB
125Hz ±12dB
250Hz ±12dB
500Hz ±12dB
1kHz ±12dB
2kHz ±12dB
4kHz ±12dB
8kHz ±12dB
12kHz ±12dB
METER ARRAY
LIMIT
-6dB
-12dB
-18dB
-24dB
-30dB
AMP LIMITER
Limits amplifier power just before clipping. The limiter holds the amp power
without clipping and can be driven up to 18dB past maximum output.
AMPLIFIER OUTPUT POWER
120VAC
Both channels loaded at 8 ohms: 60W RMS per ch.,120W Peak per ch.
Both channels loaded at 4 ohms: 100W RMS per ch., 200W Peak per ch.
POWER REQUIREMENTS
Domestic: 120VAC 50/60Hz 74W Nominal
Export: 230VAC 50/60Hz 74W Nominal
SIZE
Dimensions: HxWxD: 11.25" x 19.375" x 10.75"
Weight: 22.2 lb.
