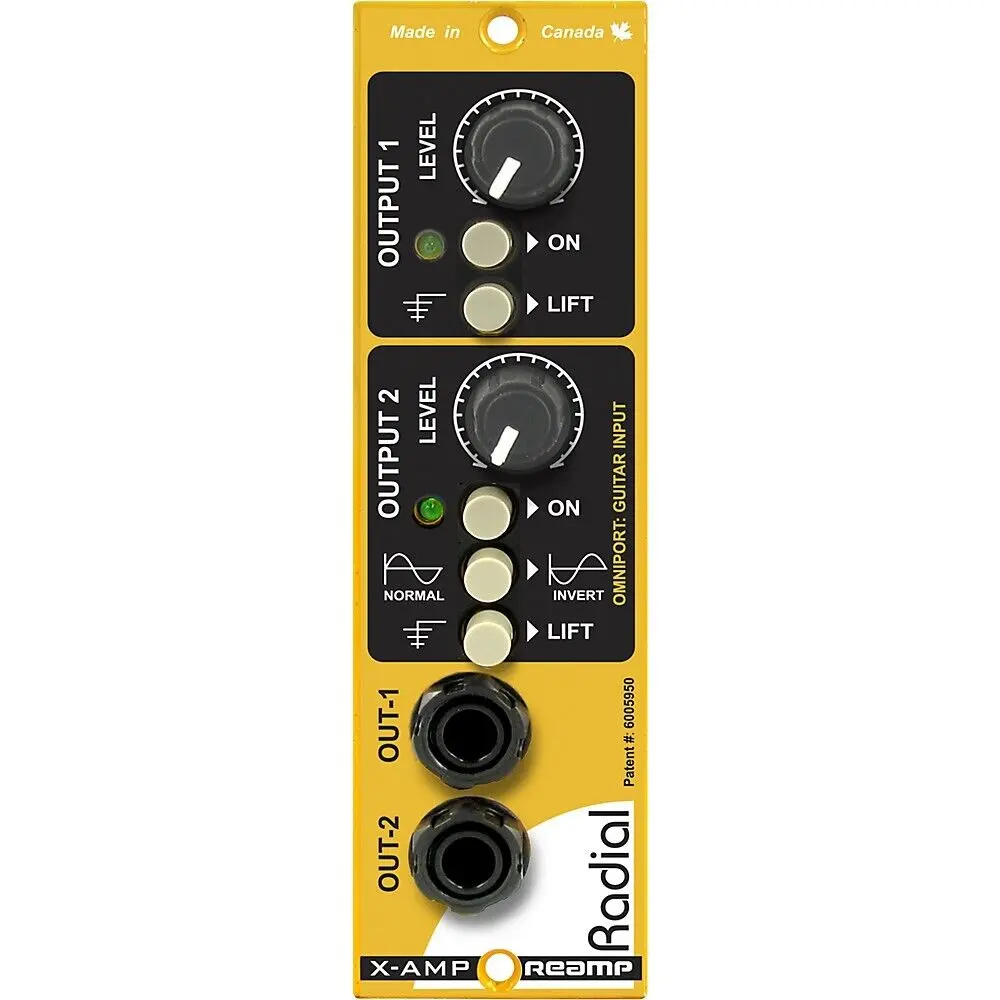

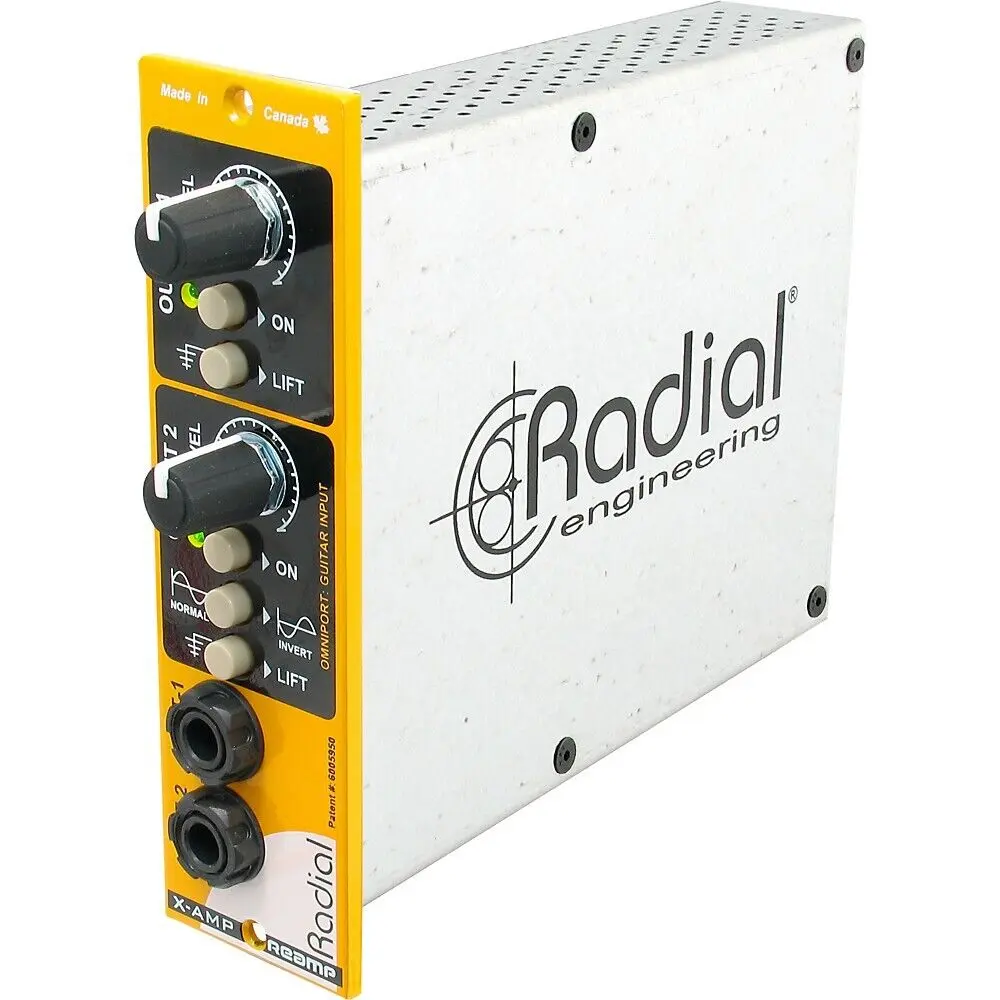

Radial Engineering X-Amp 500 Reamp

Circuit type: Class-A discrete, transformer coupled
Power Requirement: 40mA, +/-16VDC
Frequency Response: 20Hz to 20kHz (adjusted for guitar signals -5dB@20kHz) - 100K Load
XLR

Voltage Gain:
XLR Input to XLR Output: 0dB +/- 0.5dB
Omniport to XLR Output: -3dB +/- 0.5dB
XLR Input to 1/4" outputs: -0.6dB +/- 0.5dB

THD+N:
XLR Input to XLR Output: <0.002% @ 0dBu(20Hz20kHz)
Omniport to XLR Output: <0.002% @ 0dBu (20Hz20kHz)
XLR Input to 1/4" outputs: <0.006% @ 0dBu (1KHz)

Noise:
XLR Input to XLR Output: -114dB below 0dBu
Omniport to XLR Output: -95dB below 0dBu
XLR Input to 1/4" outputs: -98dB below 0dBu

Intermodulation distortion:
XLR Input to XLR Output: <0.04% @ 0dBu input
Omniport to XLR Output: <0.005% @ 0dBu input
XLR Input to 1/4" outputs: <0.027% @ 0dBu input

Maximum input:
XLR Input to XLR Output: +26dBu
Omniport to XLR Output: +20dBu
XLR Input to 1/4" outputs: +19dBu

Connector I/O details
XLR input type**: +4dB, balanced female XLR, AES standard, input impedance 1.2k Ohms
XLR output type**: Parallel ˜thru-put' with XLR input, +4dB balanced, output impedance 600 Ohms

** Typical connectors found on most 500 series racks
OUT-1 type: Instrument-level (variable), unbalanced 1/4", transformer isolated, impedance 3k Ohms
OUT-2 type: Instrument-level (variable), unbalanced 1/4", transformer isolated, impedance 3k Ohms
Omniport type: Instrument-level input, unbalanced 1/4", (on Workhorse), input impedance 220K Ohms
Shipping Weight: 1.5lbs (0.7kg)
Size: Standard 500 series rack format
Warranty: 3 years, transferable
