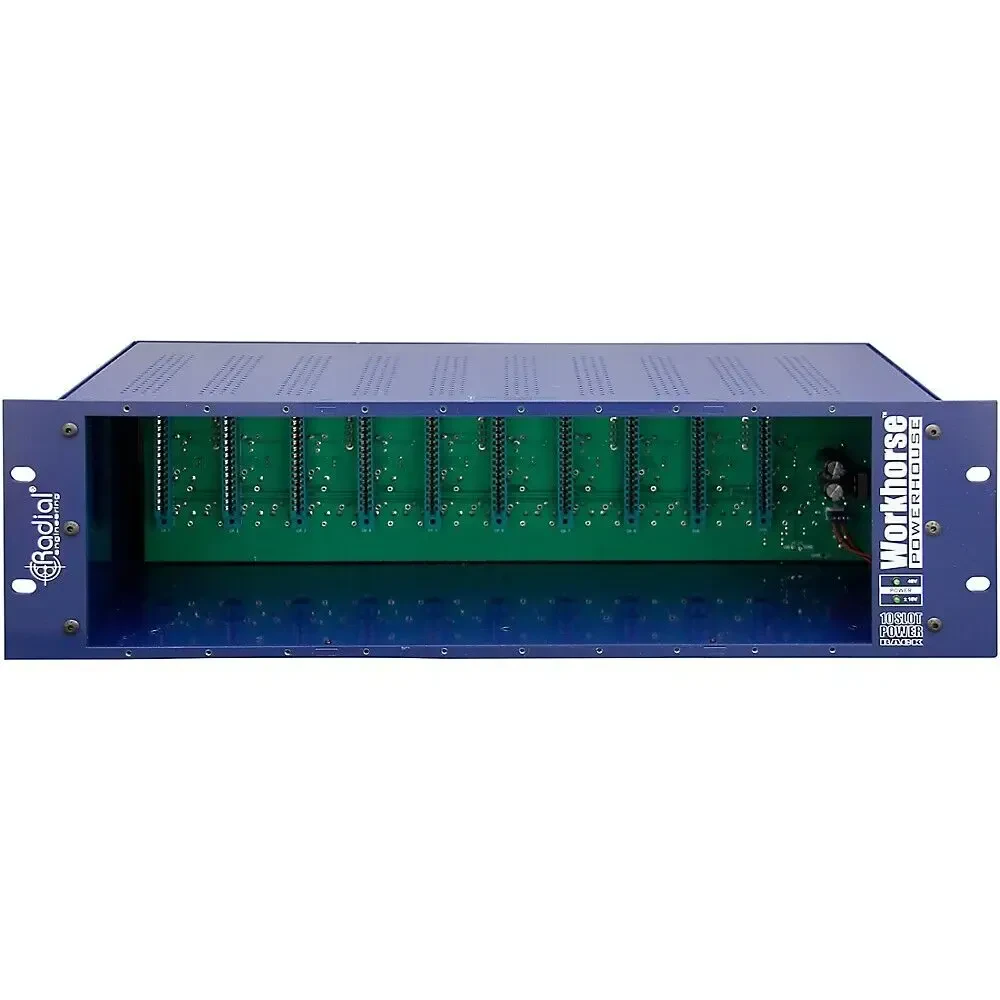

Radial Engineering Workhorse Powerhouse 10 Space 500 Series Rack

Circuit type
Connection buss from modules to connectors
Format
19” rack mount, 3 rack space
Number of slots
10

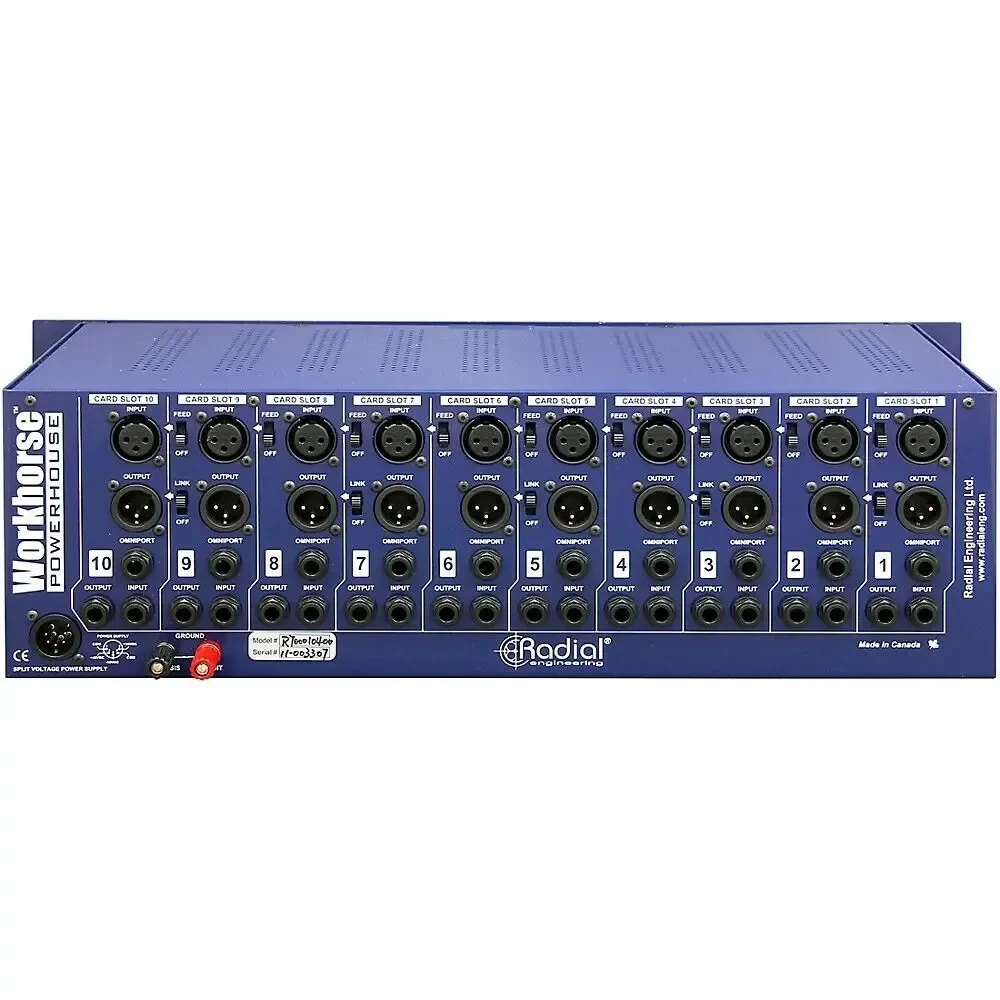

Input connectors
10 balanced XLR male, 10 ¼” TRS
Output connectors
10 balanced XLR female, 10 ¼” TRS
Compatibility
Adheres to the Whos-Doc and VPR Alliance

Functions
Omniport
Yes, TRS I/O jack, module dependent

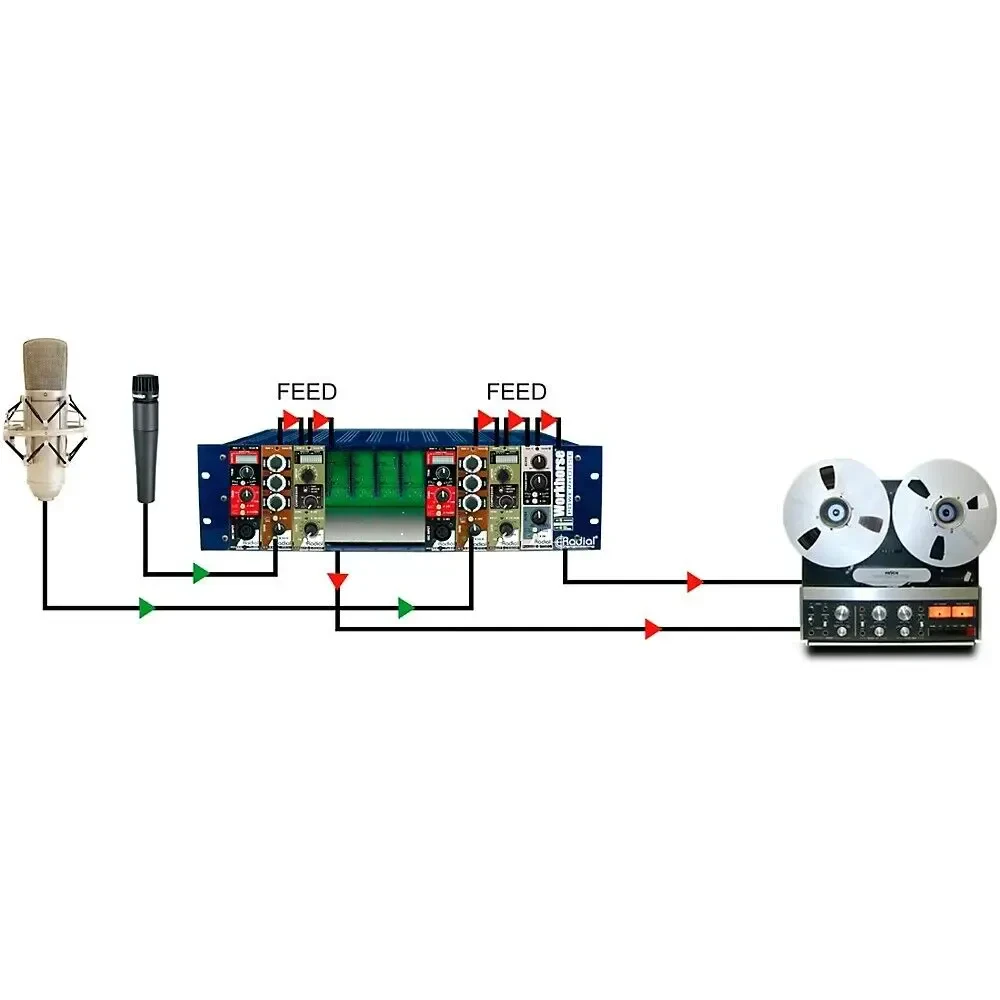

Feed switch
Yes, feeds input of adjacent module
Stereo link
Yes, links two stereo compatible modules
48V phantom power
Yes, on all channels

Electrical
Available current
1600 milliamps
Average current
160 mA per slot (all slots used)
Card slot impedance
Module dependent
Ground connections
Chassis & audio ground
XLR pin wiring
AES standard: pin-1 ground, pin-2 (+), pin-3 (-)
Power supply
External 100V - 240V AC with 48V Phantom
PSU Connection
Locking 5 pin XLR female on cable

Size And Weight
Product Size
(W x H x L) 19” x 5.25” x 7.5” (482mm x 133mm x 190mm)
Product Weight
15.3lbs / 6.9kg (without modules)

Conditions
For use in dry locations only between 5°C and 40°C

Specifications are subject to change without notice.
