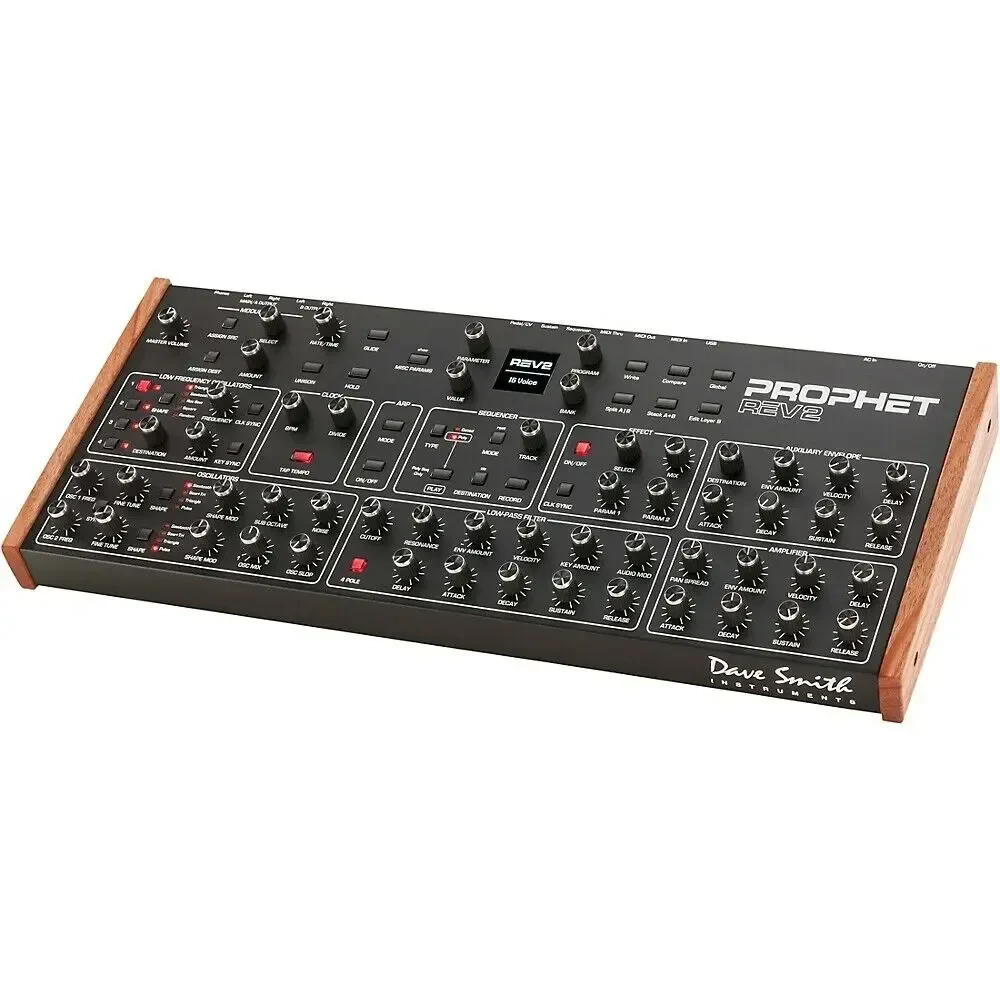

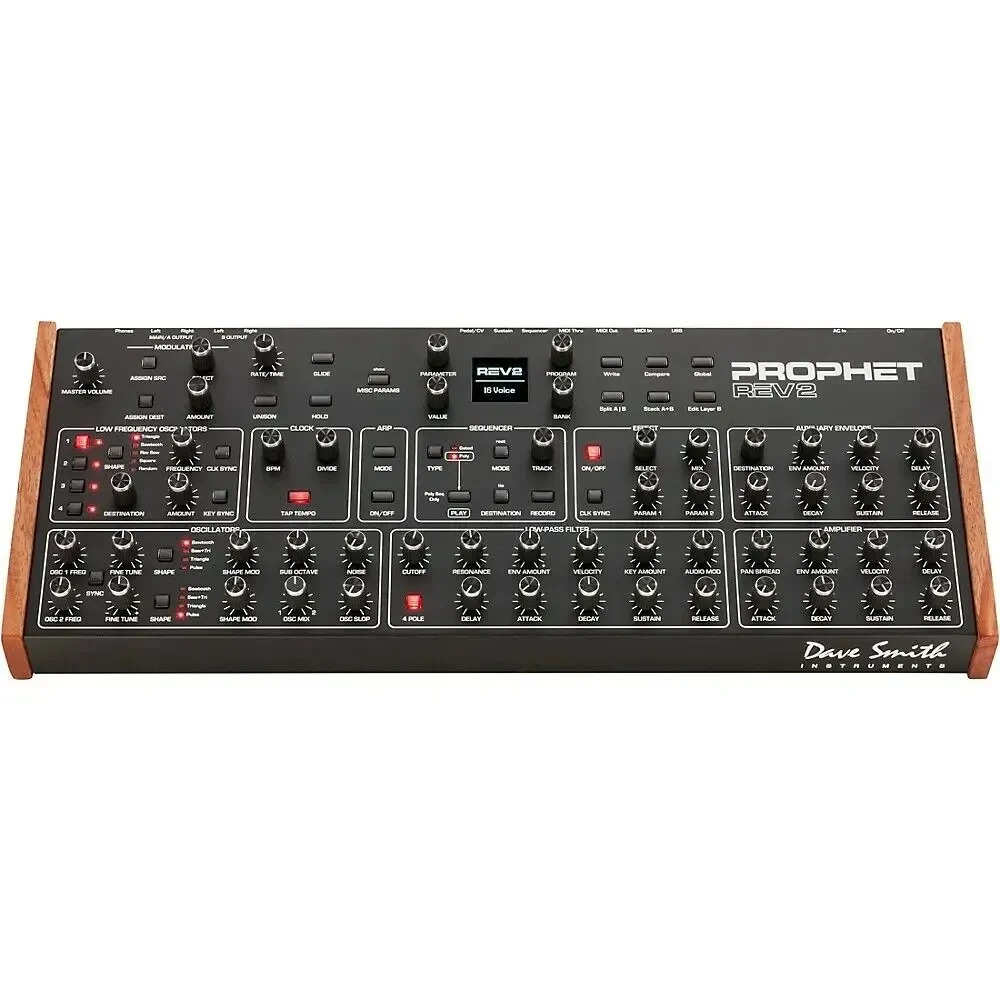

Модульный студийный синтезатор Sequential Dave Smith Instruments Prophet Rev2 Synthesizer Module

OSCILLATORS
2 DCOs per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
Glide: separate rates per oscillator
White noise generator
Analog VCAs
Hard sync

FILTERS
1 analog Curtis low-pass filter per voice
Selectable 2- and 4-pole operation (self-resonating in 4-pole mode)

ENVELOPES
3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay)
Envelope 3 can loop.

SEQUENCER
Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests
Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence

LFOS
4 LFO’s with key sync per LFO

MODULATION
8-slot modulation matrix
22 sources
53 destinations
5 additional dedicated sources: mod wheel, pressure, velocity, breath controller, footswitch

ARPEGGIATOR
Programmable arpeggiator with up, down, up+down, random, assign modes
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Re-latching arpeggiation
Note repeat

CONTROLS
5-octave keyboard with semi-weighted action, velocity, and aftertouch
55 knobs and 35 buttons enable deep and comprehensive editing
Spring-loaded pitch wheel and assignable mod wheel

MEMORY
512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program
IN/OUT
MIDI In, Out, Thru
Main stereo audio output: 1/4 in. unbalanced
Output B stereo audio output: 1/4 in. unbalanced
Sustain pedal input: accepts normally on or normally off momentary footswitch
Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages)
Headphone output: 1/4 in. stereo phone jack

POWER
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz
Power consumption: 22 watts maximum (17 watts for 8-voice configuration; 22 watts for 16-voice configuration)

PHYSICAL SPECS
Oiled African mahogany wood end panels
Dimensions: 12.70 x 35.12 x 3.80 in.
Weight: 20.5 lbs. (9.3 kg)
