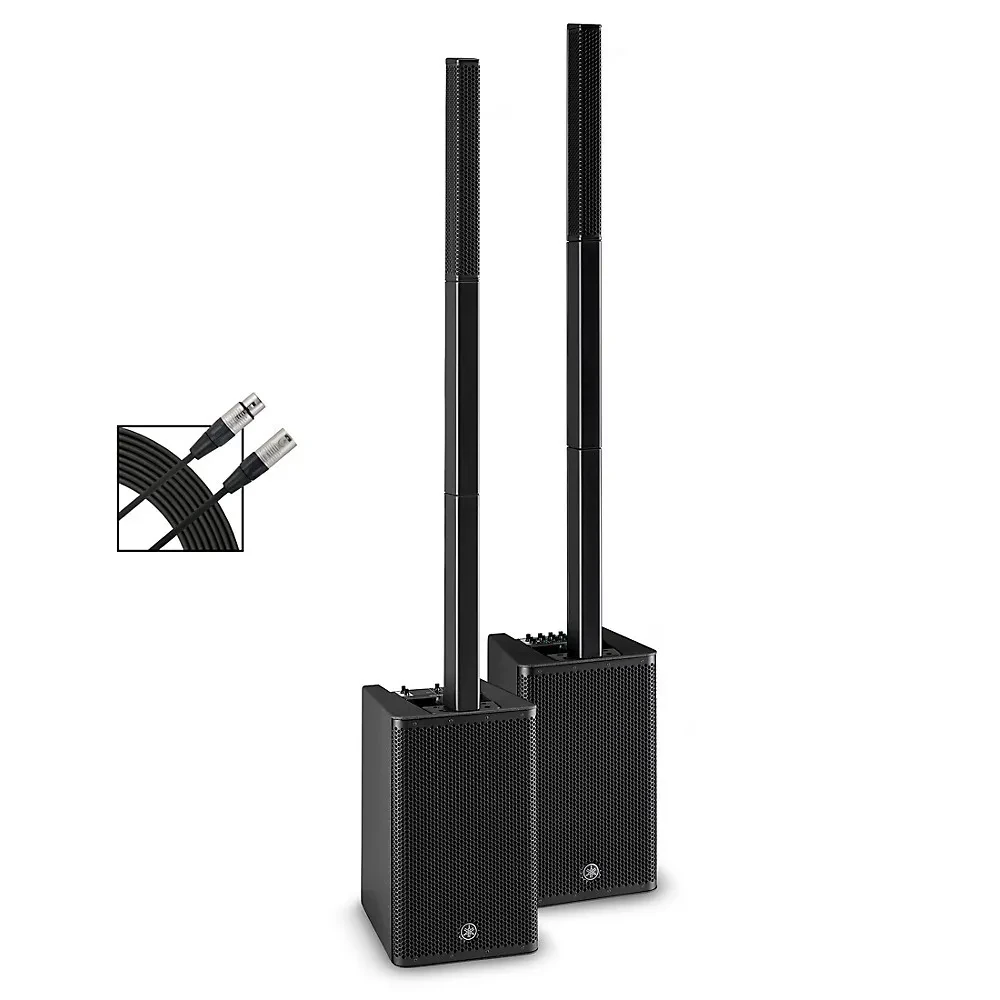

Yamaha Stagepas 1K MKII Stereo Portable PA Package With DXL1K Speaker System

Stagepas 1K mkII Stereo
Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
Frequency range (–10dB): 37Hz–20kHz
Coverage area (HxV): 170º x 30º
Crossover: 240Hz
Maximum output level: (1 m; on axis): 125dB SPL
LF: Powered subwoofer: 12" cone
HF: Line array speaker: 1.5” cone x10
Amplifier class: D
Power rating: Dynamic,1,100W
Power consumption: 25W (idle), 91W (1/8 power)
Power requirements: Depending on region: 100V 50Hz/60Hz, 110–120V 60Hz, 220V–240V 50Hz/60Hz
Handle: Top of powered subwoofer x1
System dimensions (WxHxD): 3.15" x 78.74" x 16.46" (maximum)
System weight: 50.71 lb.
Accessories: Power cord x1, cover x1
Options: Yamaha DL-SP1K (dedicated dolly), FC5 (footswitch for reverb ON/OFF)
Other
Type: Powered subwoofer with a line array speaker
Mixing channels: 5 (mono x3 + stereo x1)

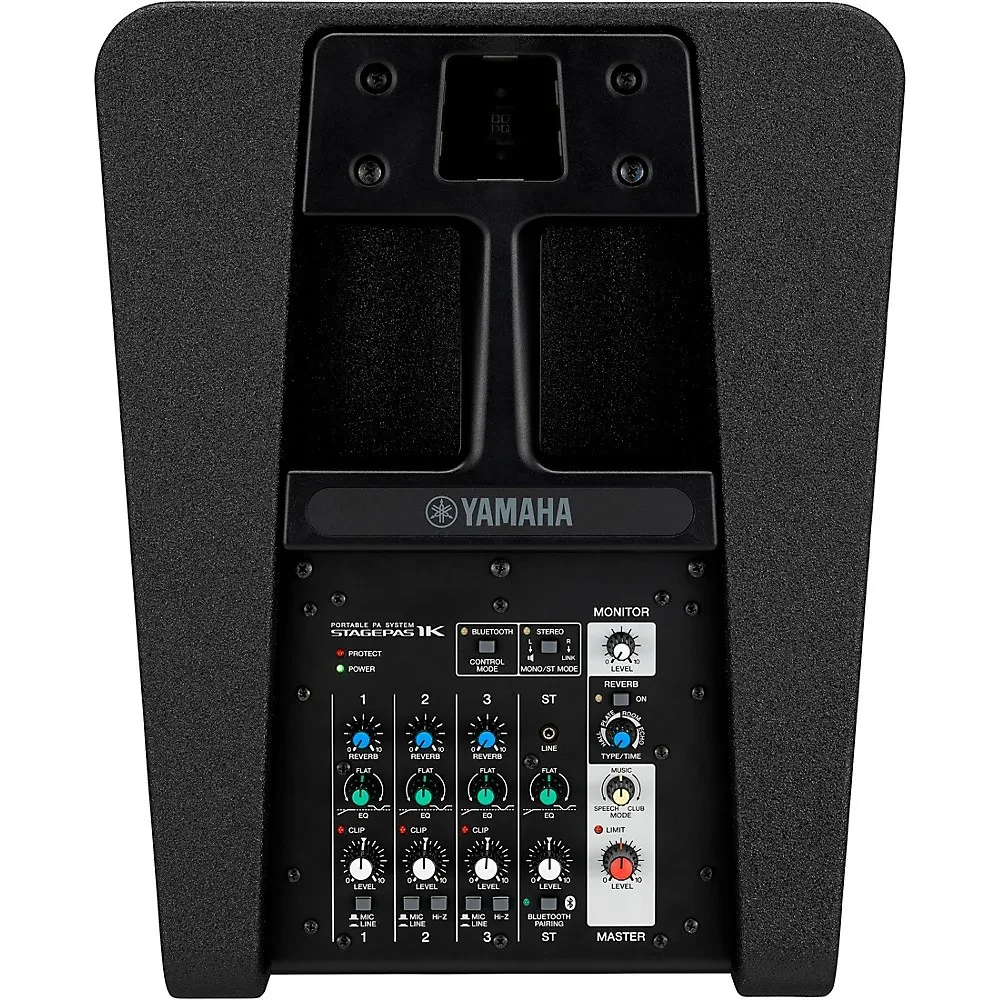

Input channel functions
Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
Output channel functions
MODE (SPEECH/MUSIC/CLUB)
Inputs: Mono x3 (mic/line) + stereo x1 (line)/mono x2 (line), link in x1
Outputs: Link out x1, monitor out x1
Bluetooth: Ver. 5.0, A2DP (SBC, AAC)
Control and others: Reverb footswitch, STAGEPAS Controller (iOS/Android app)
Onboard processors: DSP SPX digital reverb (4 program, parameter control)
DXL1K Speaker
Type: Powered subwoofer with a line array speaker
Frequency response (–10dB): 37Hz–20kHz
Number of mixing channels: 2
Coverage angle (horizontal x vertical): 170° x 30°
Crossover frequency: 240Hz
Maximum output level (measured peak, IEC noise @ 1 m): 125dB SPL
Power Requirements
100V: 50/60Hz
220–230V: 50/60Hz
220–230V: 60Hz
110V/220V: 60Hz
110–120V: 60Hz,
220–240V: 50/60Hz
220V: 50Hz
Power consumption: 25W (Idle), 91W (1/8 power)
Dimensions (WxHxD)
System (maximum) 13.15" x 78.74" x 16.46"
Weight: 50.71 lb.
Analog Inputs
Mono mic/line: 1
Mono line: 1
LINK IN (mono)
EQ and Effects
MODE (SPEECH/MUSIC/CLUB)
Outputs
LINK OUT (mono/R)
Rated Output
Dynamic: 1,100W (subwoofer: 500W, line array speaker: 600W)
Enclosure
Line array speaker: Enclosed
Subwoofer: Bass-reflex type
Nominal Impedance
Line array speaker: 8 ohms
Subwoofer: 4 ohms
