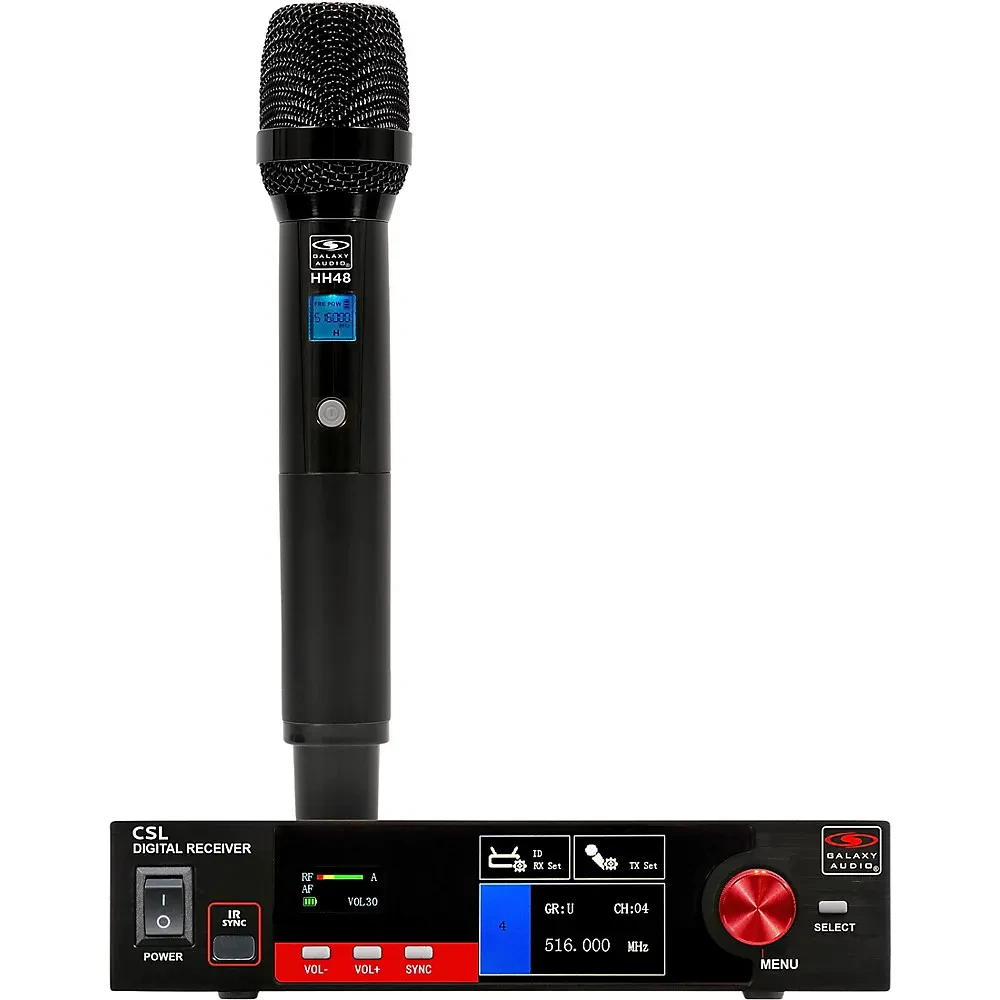

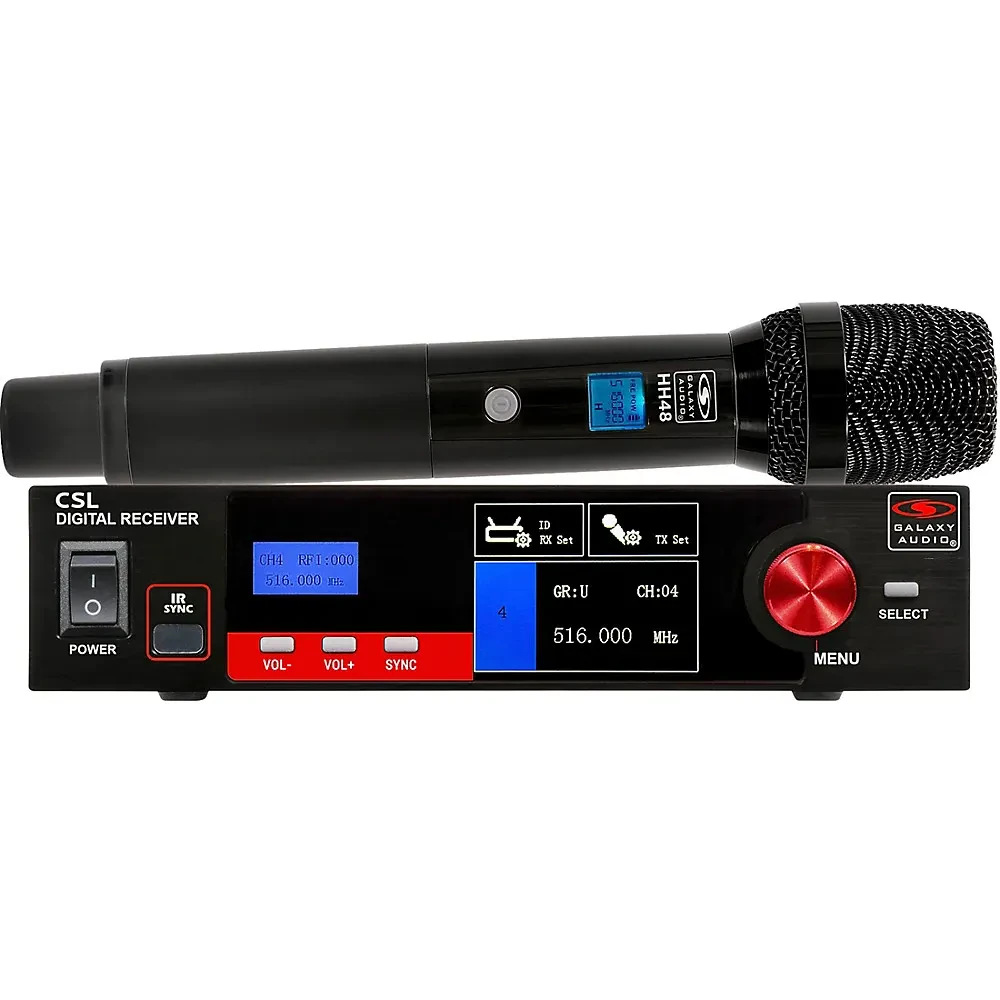

Galaxy Audio CSLHM Digital UHF Wireless Handheld Mic System Frequency CODE M3

General
Product type: Digital UHF wireless handheld microphone system
Model: CSL-HM
Wireless band: Digital UHF Diversity
Frequency range: 520–554MHz
System Features
Channels: Single channel
Frequency scanning: Auto frequency scanning

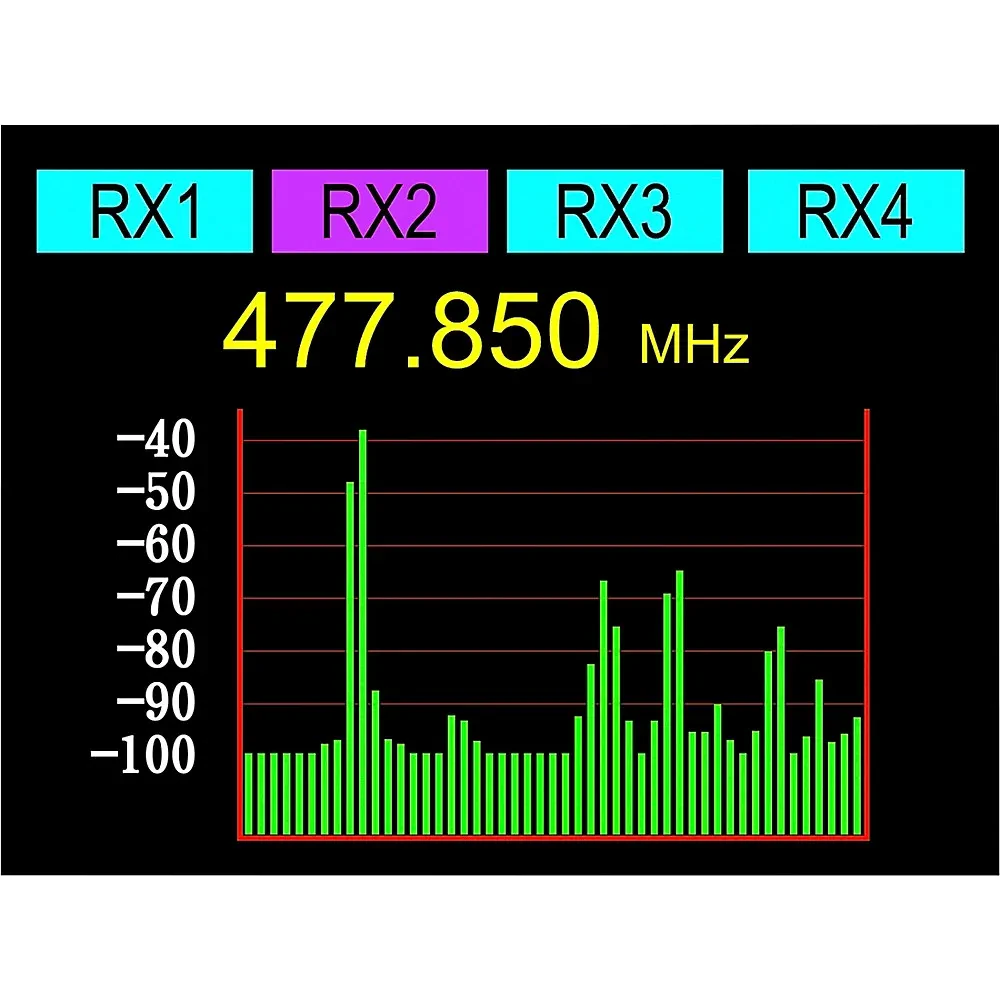

RF analyzer: RF spectrum analyzer
Frequency sync: IR Sync
Encryption: 32-bit encrypted digital modulation
Latency: <3ms
Operating range: Up to 300'

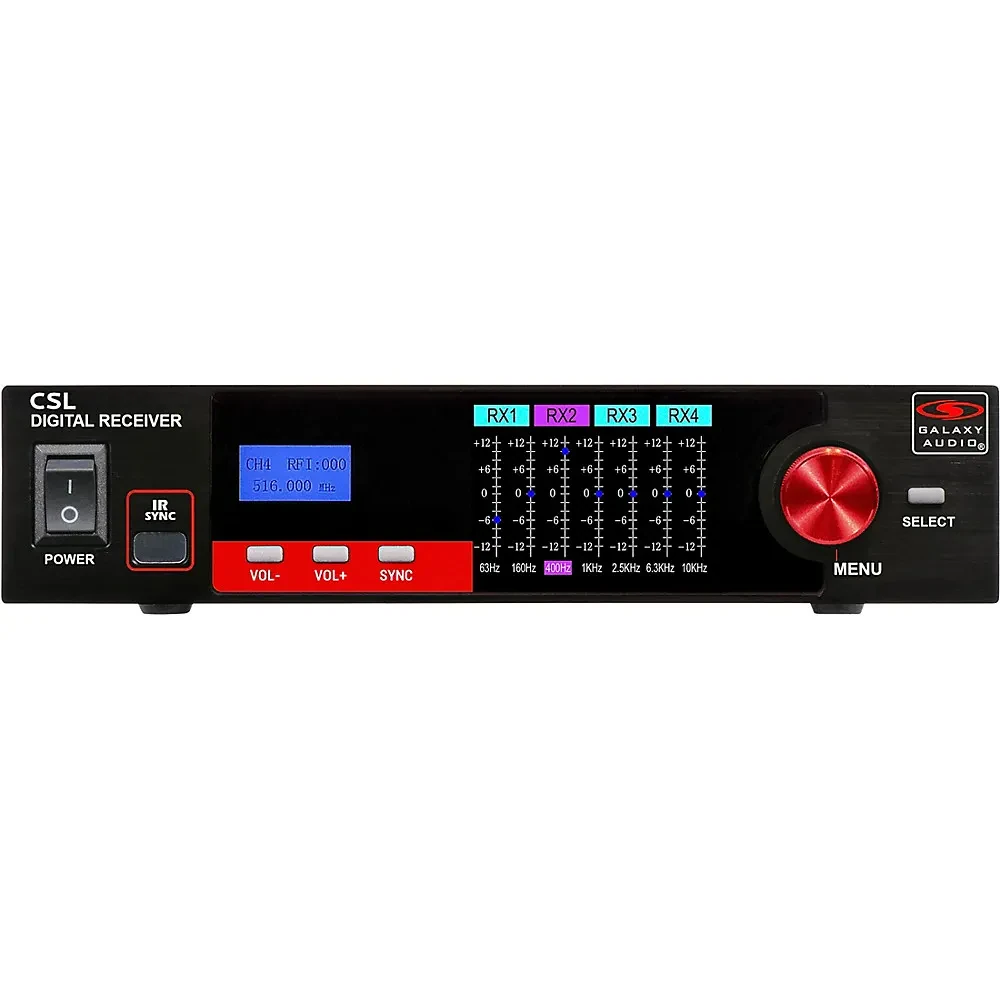

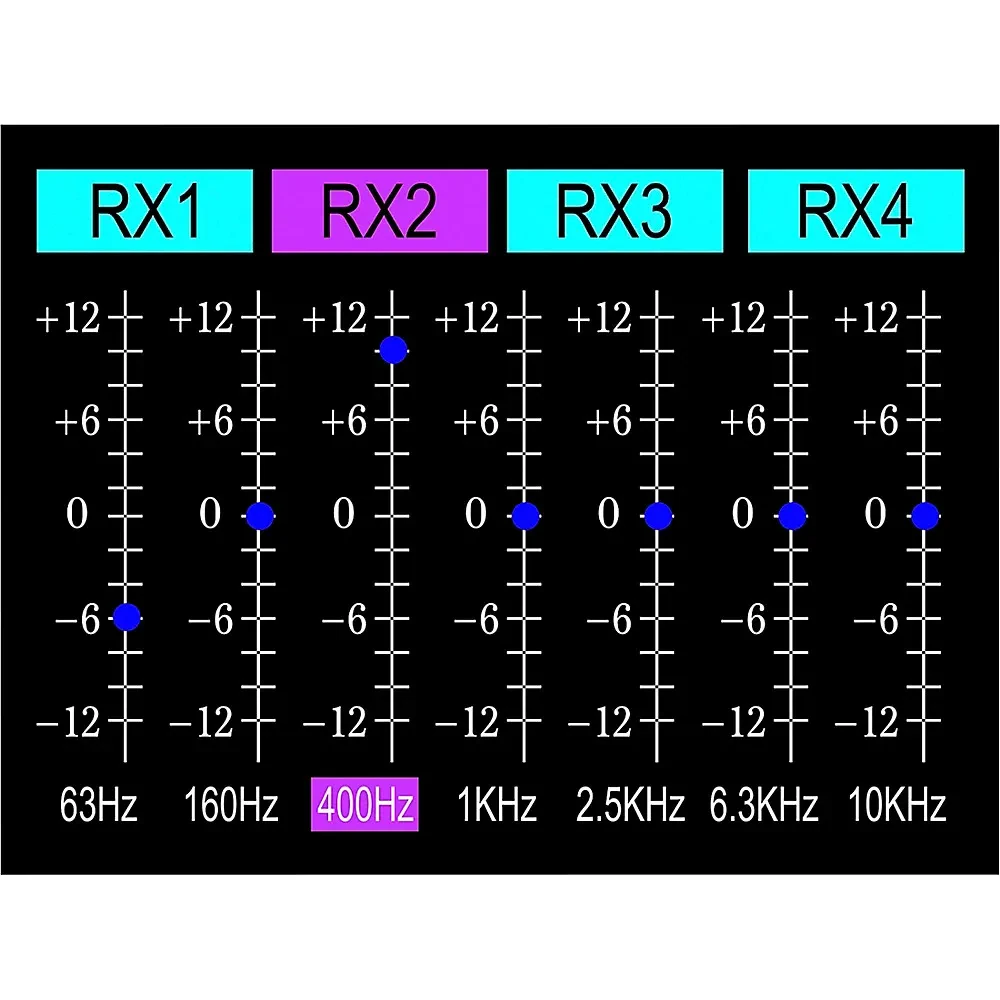

EQ: 7-band adjustable EQ
Display colors: 6 selectable colors
Receiver

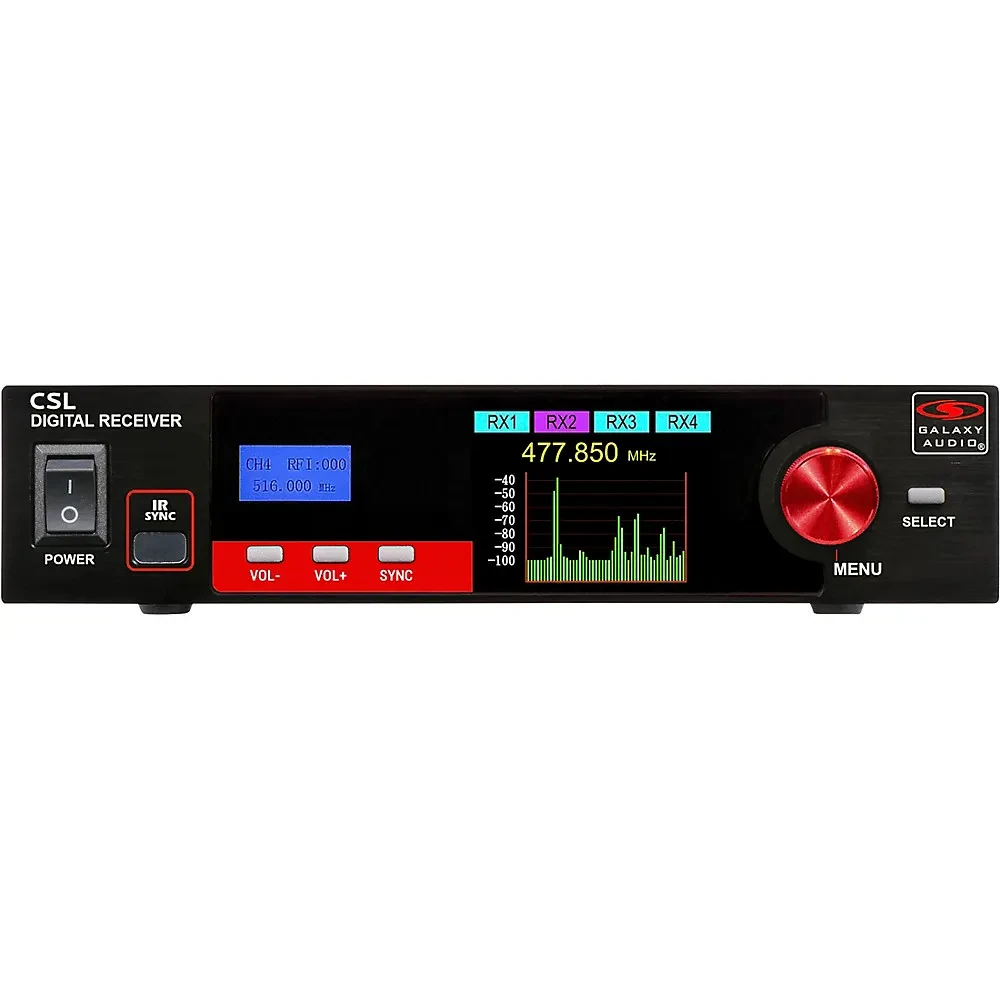

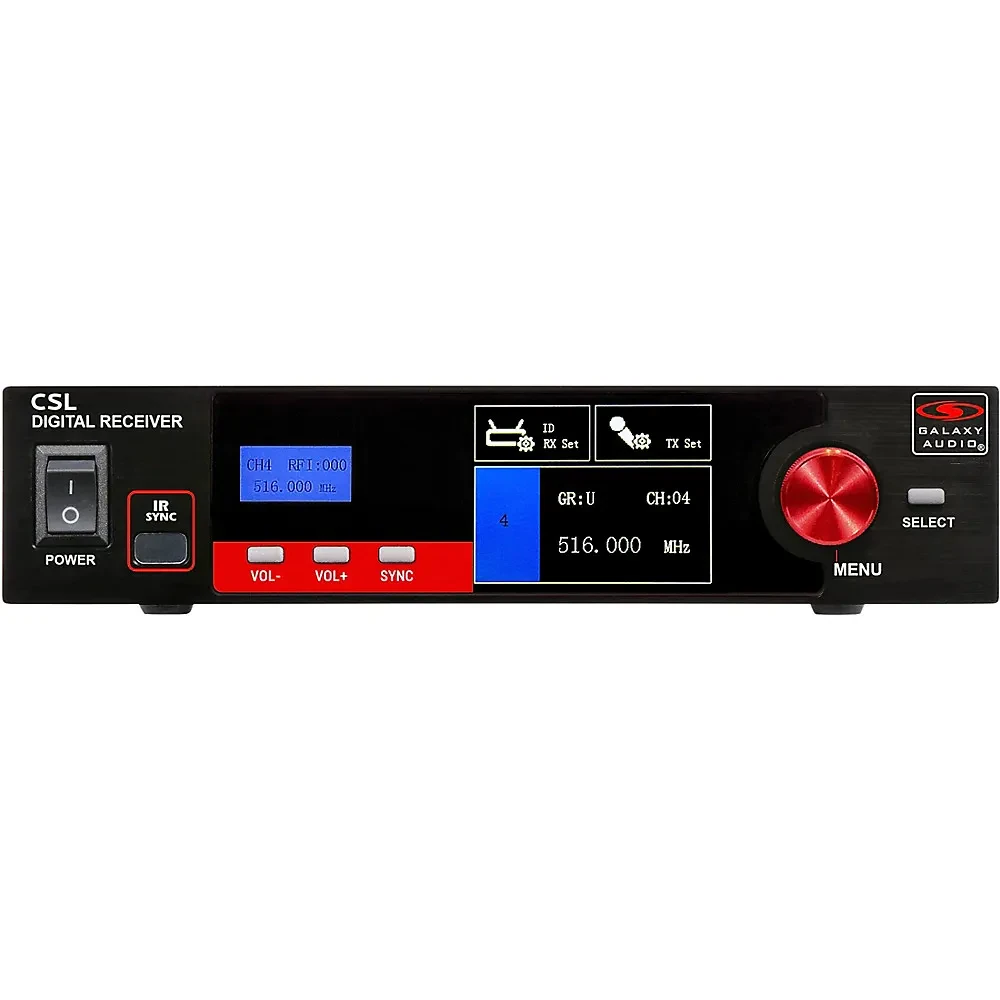

Receiver type: True-diversity digital receiver
Rackmount size: 1U with included single/dual rackmount kit
Outputs: Balanced XLR, unbalanced 1/4"
Frequency response: 50Hz–16kHz
Signal-to-noise ratio: >80dB
THD: <0.5% @ 1kHz
Power supply: 12V DC, 500mA
Included Transmitter
Transmitter type: HH48 handheld transmitter
HH48 Handheld Transmitter
Microphone element: Dynamic
Polar pattern: Cardioid
Display: Frequency, battery life, mute status
Oscillation mode: PLL phase-locked
Digital modulation: 32-bit encrypted
RF output power: 10mW
Gain: Fixed
Current draw: <130mA
Battery: 2 × AA batteries
Battery life: Approx. 8 hours
Connectivity

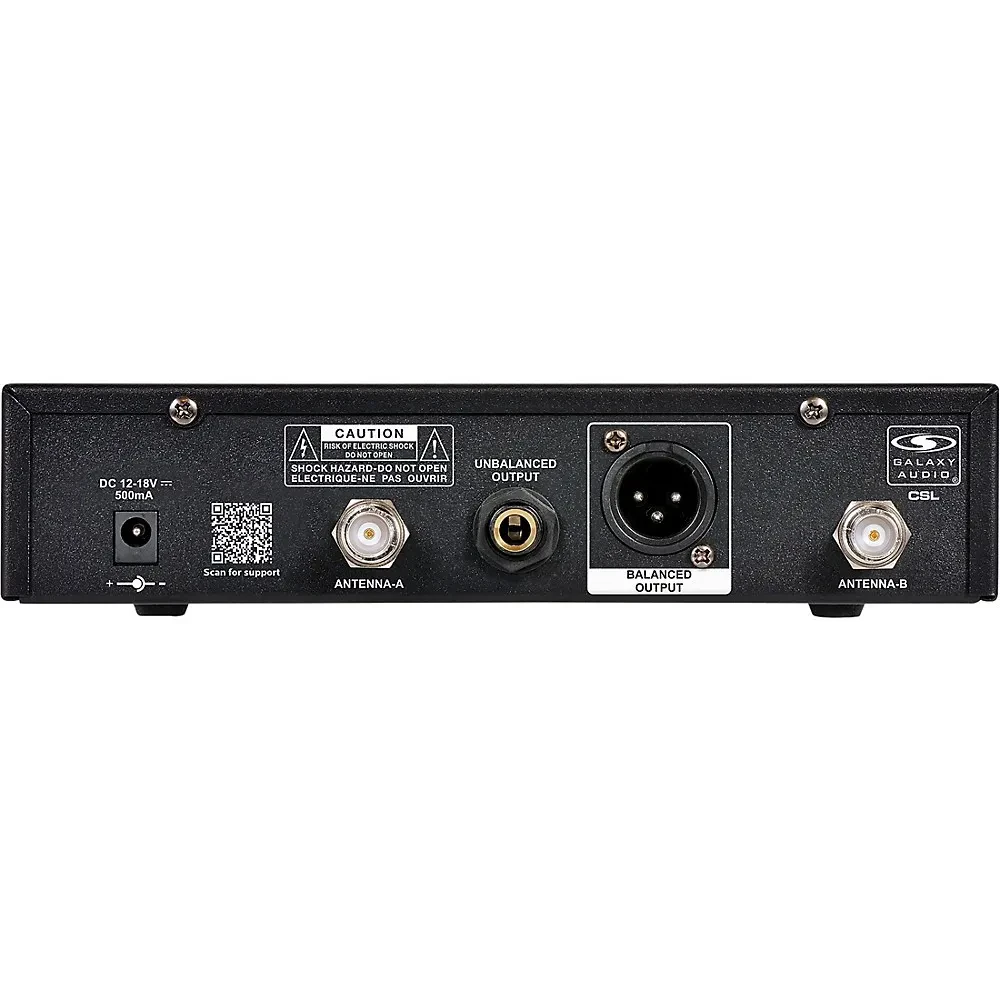

Receiver outputs: Balanced XLR and unbalanced 1/4"
Dimensions
Receiver: 1.79" × 8.27" × 7.0"
Handheld transmitter: 10.0" × 1.9"
Receiver weight: 1.96 lb.
Handheld transmitter weight: 12.2 oz
Included Accessories
HH48 handheld transmitter
Rackmount kit
Antennas
Power supply
1/4" audio cable
Quick-start guide
