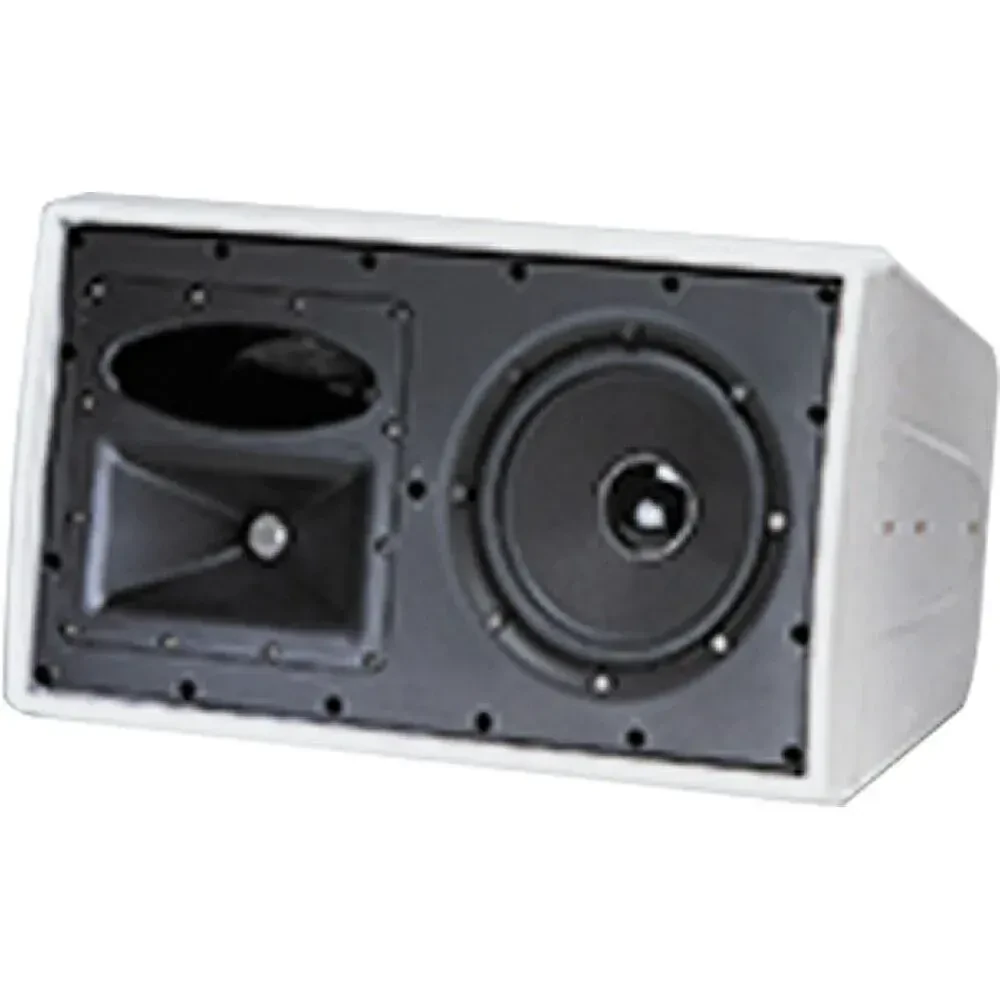

JBL C29AV-1 Control 2-Way Indoor/Outdoor Speaker White

Frequency Range (-10 dB): 37 Hz ” 18 kHz
Frequency Response (±3 dB): 43 Hz ” 15 kHz
100-Hour Power Capacity: 300 Watts Continuous Program Power, 150 Watts Continuous Pink Noise
Maximum SPL @ 1m3: Short-Term: 118 dB; Long-Term: 112 dB
Nominal Sensitivity (half-space average 100 Hz to 10 kHz): 90 dB, 1W @ 1 m (3.3 ft)
Nominal Coverage Angle: 110H x 85V, rotatable
Directivity Factor (Q): 6.7, averaged 500 Hz to 16 kHz
Directivity Index (DI): 8.3 dB, averaged 500 Hz to 16 kHz
Nominal Impedance: 8 ohms
Minimum Impedance: 6.3 ohms @ 230 Hz 3.3 ohms @ 4.1 kHz
Crossover Type: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
Transformer Taps: 70V: 110W, 55W, 28W & 14W; 100V: 110W, 55W, & 28W; through position: 8 ohms nominal

Transducers:
Low Frequency: 8" (200mm) kevlar cone with pure butyl rubber surround, 2" (50mm) voicecoil on fiberglass former
High Frequency: 1" (25mm) compression driver, pure titanium diaphragm with patented JBL diamond surround

Physical:
Enclosure Material: High impact polystyrene
Grille: Thermoset composite-coated steel
Overload Protection: Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during extreme overload conditions
Environmental: IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
Termination: Screw-down terminal strip, zinc-plated copper base, nickel-plated metal screws/washers. Accepts up to 9mm outside 4mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm)
Safety Agency Rating: Transformer is listed per UL1876
Dimensions: 20.5"H x 12"W x 10.9"D (520x306x277mm)
Net Weight (each): 26.8 lbs. (12.2 kg)
Shipping Weight (each): 30.8 lbs. (14.0 kg)
Included Accessories: 1-piece MTC-PC2 input panel cover, InvisiBall mounting base, 6x260mm hex wrench
