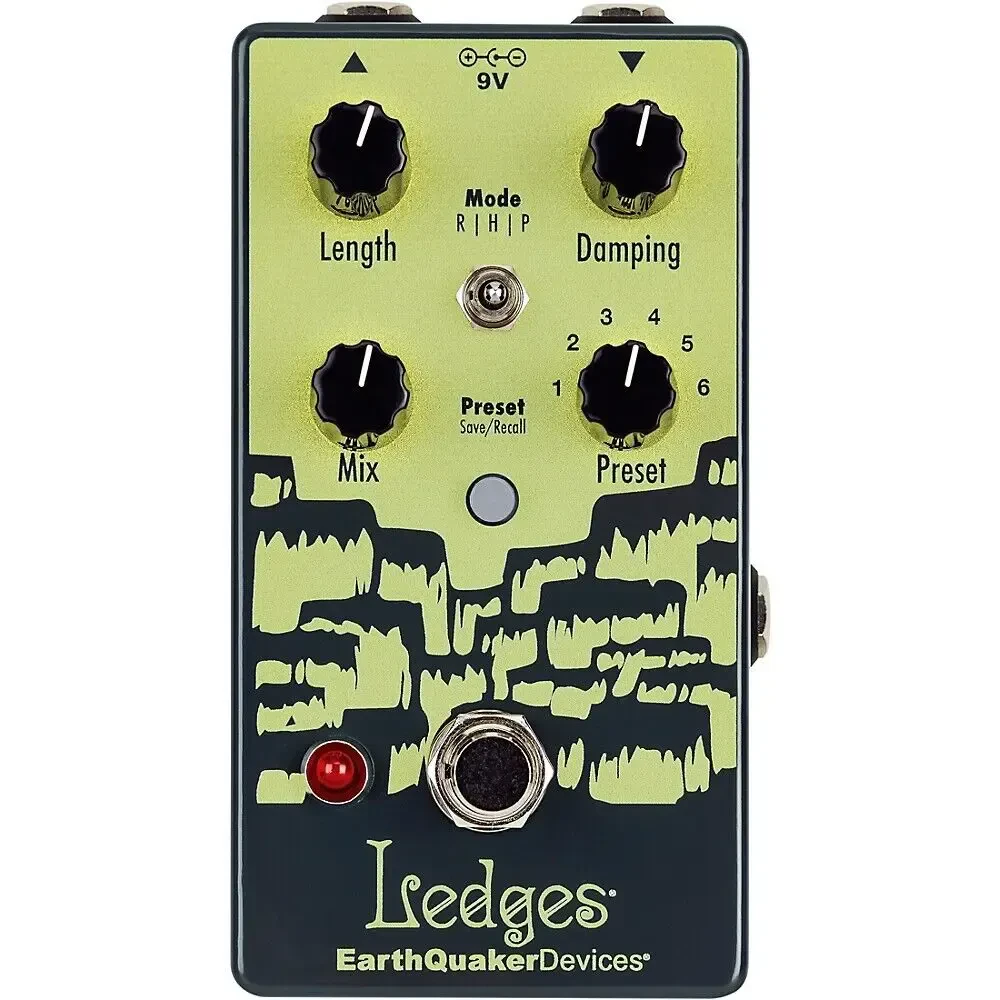

Педаль эффектов для электрогитары EarthQuaker Devices Ledges Tri-Dimensional Reverberation Machine Effects Pedal

The EarthQuaker Devices Ledges effects pedal is a three-mode reverb with the ability to save and recall six presets and user-assignable expression control with loads of customizable options. From classic, standard reverb tone to the furthest reaches of the sonic universe, the EarthQuaker Devices Ledges is everything anyone could ever want and need out of a reverb effects pedal.

The three switchable modes each deliver a unique blend of reverb but are connected through a spectrum where the Room (R) reverb’s longest setting is the Hall (H) reverb’s shortest setting, the Hall reverb’s longest setting is the Plate’s (P) shortest setting, and the Plate’s longest setting just keeps going.

The Mix knob lets you control how much your signal is affected, while the Length knob controls the size of the reverb. The Damping knob subtly mutes the high frequency reflections of the reverb, which you’ll hear clearly by adjusting your gain.

And let’s not forget that you have six Presets available at your disposal. Simply select a number with the switchable knob and then engage the Save on the center button and dial in your favorite setting. A quick Recall on the same button and you have all your personalized reverb sounds with the tap of your toe. And the best part is that you can assign an expression pedal to each of the three controls and then save it all in the presets.

Ledges comes factory set to start up in Live Mode.

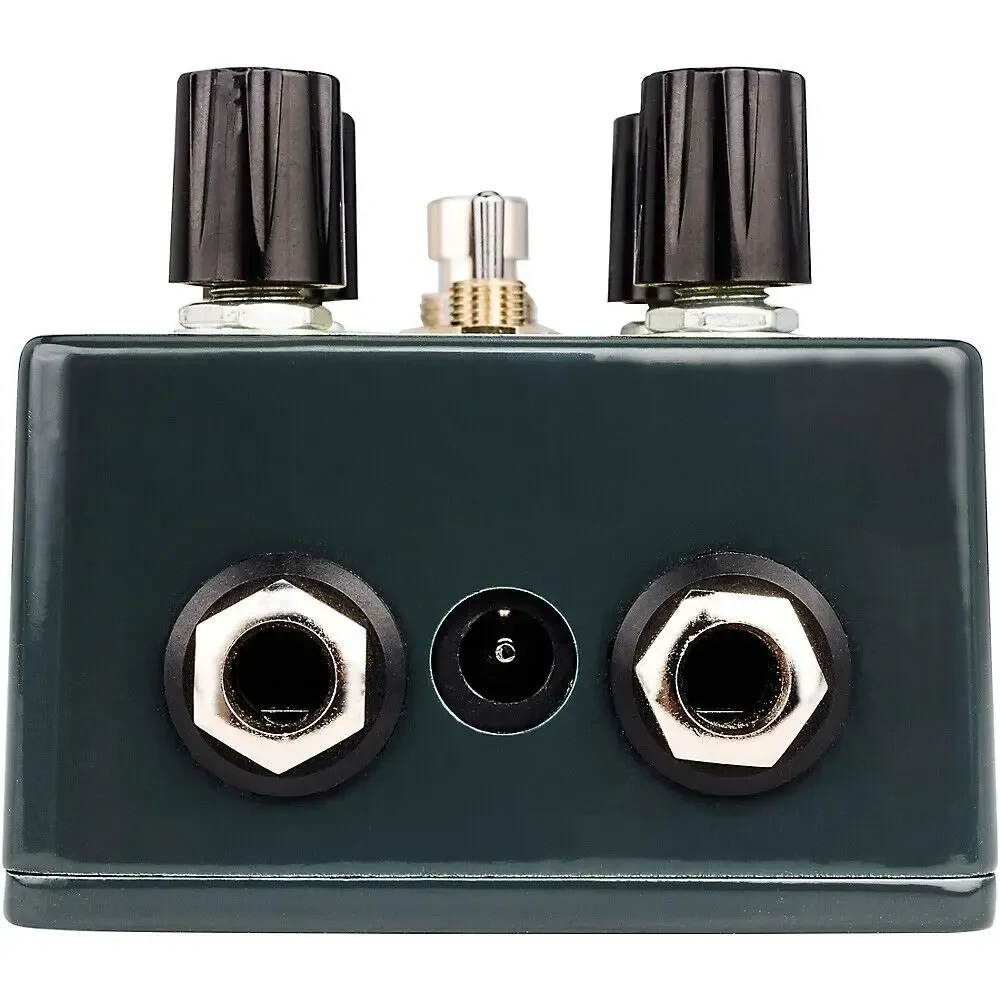

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. EarthQuake Devices recommends using a pedal-specific, transformer-isolated, wall-wart power supply or a power supply with multiple isolated-outputs. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not always filter dirty power and may result in unwanted noise. Do not run at higher voltages.

Features:

Three-mode reverb with the ability to save and recall six presets and user-assignable expression control:
Mode R: Room, shortest reverb setting
Mode H: Hall, medium reverb setting
Mode P: Plate, longest reverb setting
Two global operating modes which are indicated by the color of the Save/Recall switch
Green = Live Mode
Red = Preset Mode

Specifications:

Input Impedance: 500 kΩ
Output Impedance: 100 Ω
Power Requirements:
Current Draw: 75 mA
