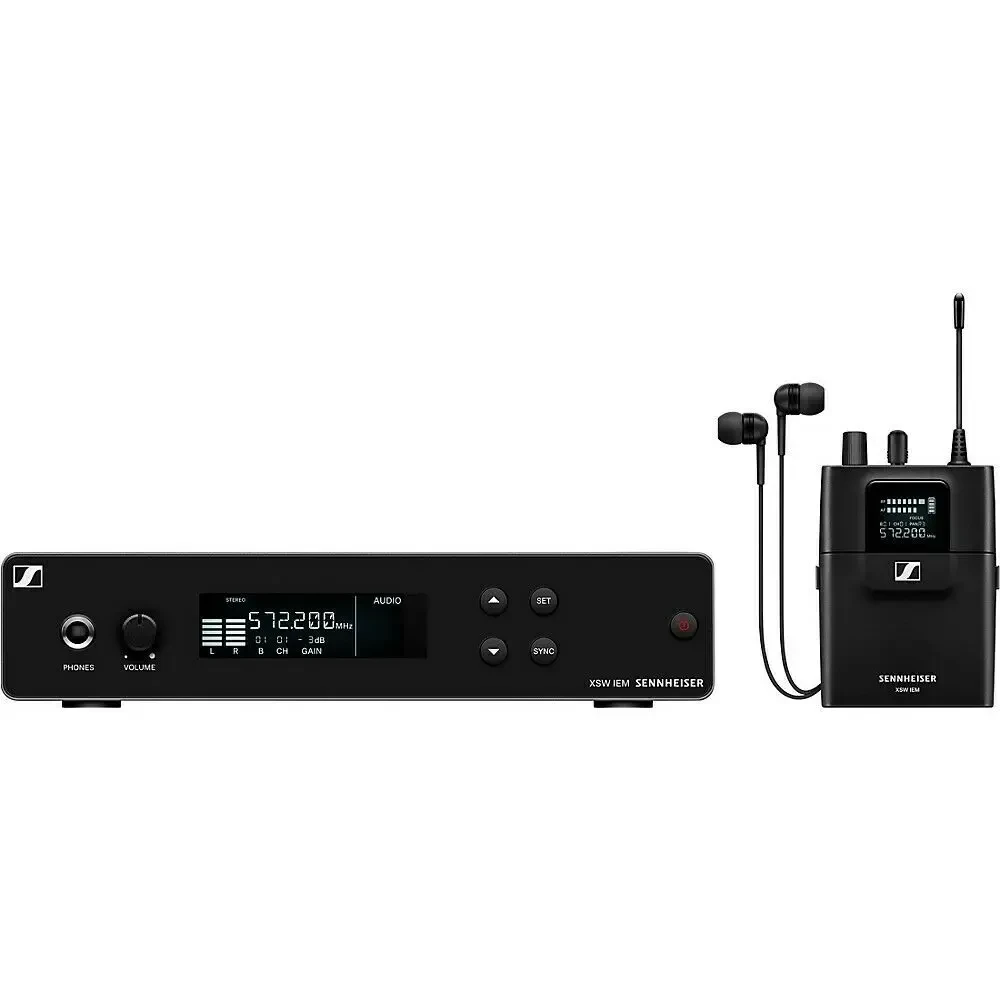

Микрофонная радиосистема персонального мониторинга Sennheiser XSW IEM Wireless In-Ear Monitoring System (Band A) Band A

Variant A frequency range: 476–500mHz
Variant B frequency range: 572–596mHz
Variant C frequency range: 662–686mHz
Variant E frequency range: 823.2–831.8mHz
Variant K: 925.2–937.3mHz
Variant A, B, C and E output power: 30mW
Variant K output power: 10mW
Modulation: FM stereo
Switching bandwidth: Up to 24mHz
Nominal/peak deviation: ±15kHz/±24kHz
Antenna output BNC socket: 50 ohm
AF frequency response: 45Hz to 15kHz

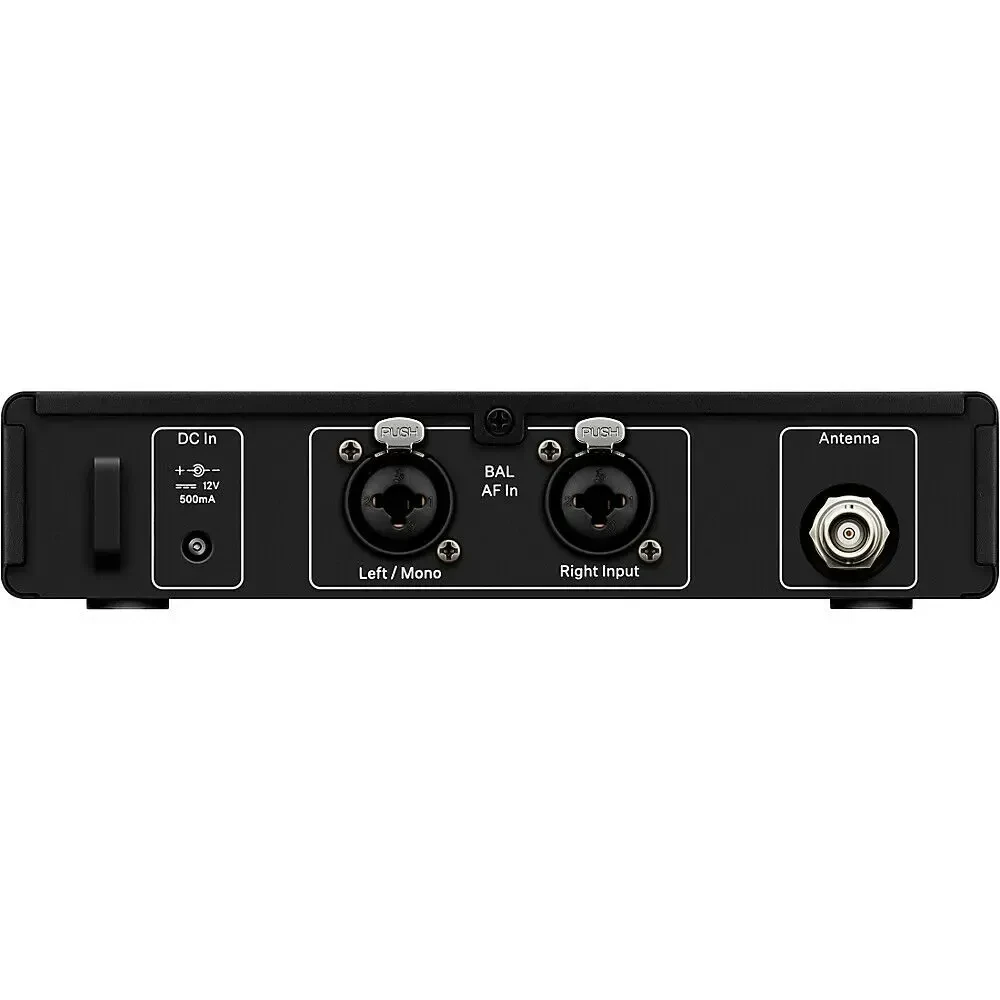

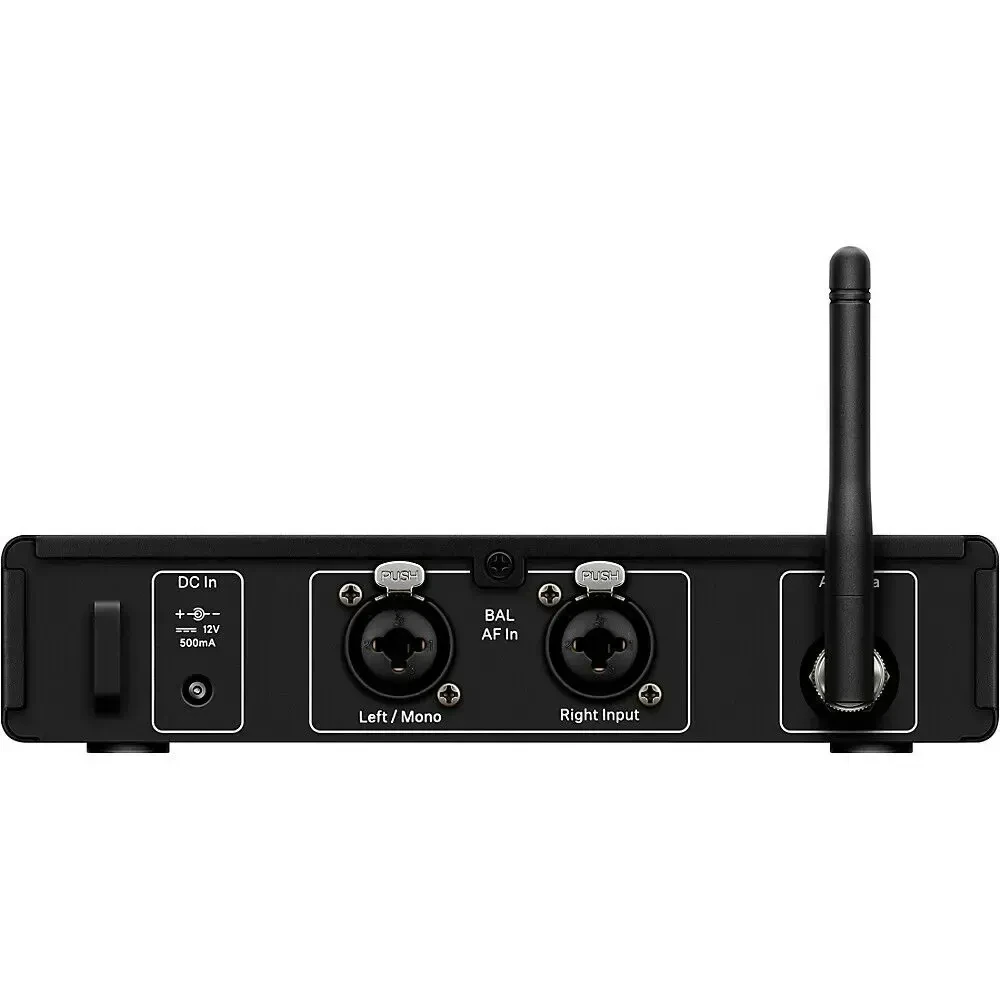

AF input: BAL AF IN L (I) + MONO/ BAL AF IN R (II) - 2x XLR 3" and 1/4" jack combo socket, electronically balanced
Total harmonic distortion (THD): <0.9 %
Signal-to-noise ratio (at nominal load and peak deviation): ≥88dB
RF Modulation: Wideband FM
AF Signal-to-noise ratio (1 mV, peak deviation): - ≥88dB
Total harmonic distortion (THD): ≤ 1%
High Boost (EQ): +10dB at 13kHz
Limiter: -10dB
AF frequency response: 45Hz to 15kHz
Cross talk (50Hz–10kHz): Typically 45dB
Temperature range: 0 °C to +40 °C
Power supply: 2 AA batteries, 1.5V
Nominal voltage: 3V battery
Operating time: Approx. 6 hr. (depending on volume level)
Dimensions: Approx. 3.54" x 2.75" x 1.02"
Weight (including batteries): Approx. 0.24 lb.
IE 4 in-ear headphones transducer: Dynamic
Frequency response: 40–20.000Hz
SPL (1 kHz, 1 mW): 106dB
Nominal impedance: 6 ohm
Cable length: 55.11"
Connector: 1/8" stereo plug, gold-plated
Temperature: –5 °C (23 °F) to +50 °C (122 °F)
Includes:
XSW IEM EK Stereo Receiver

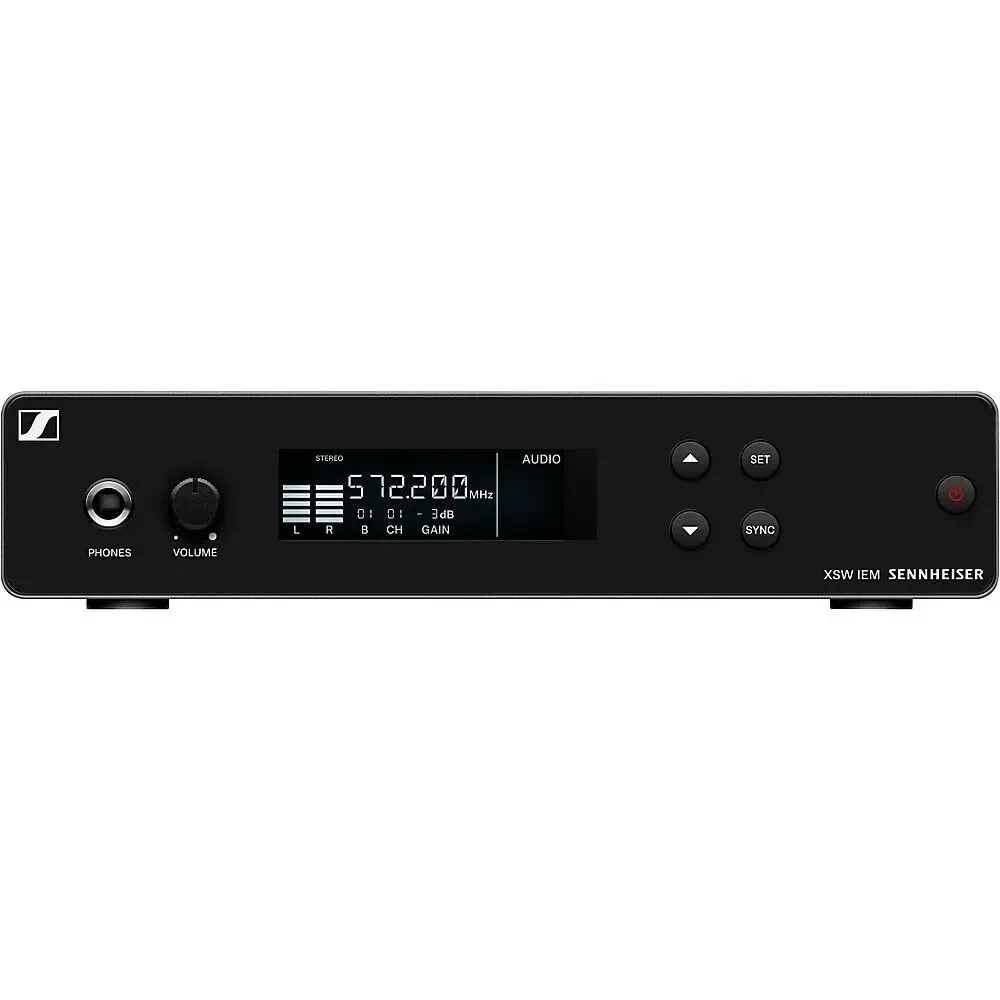

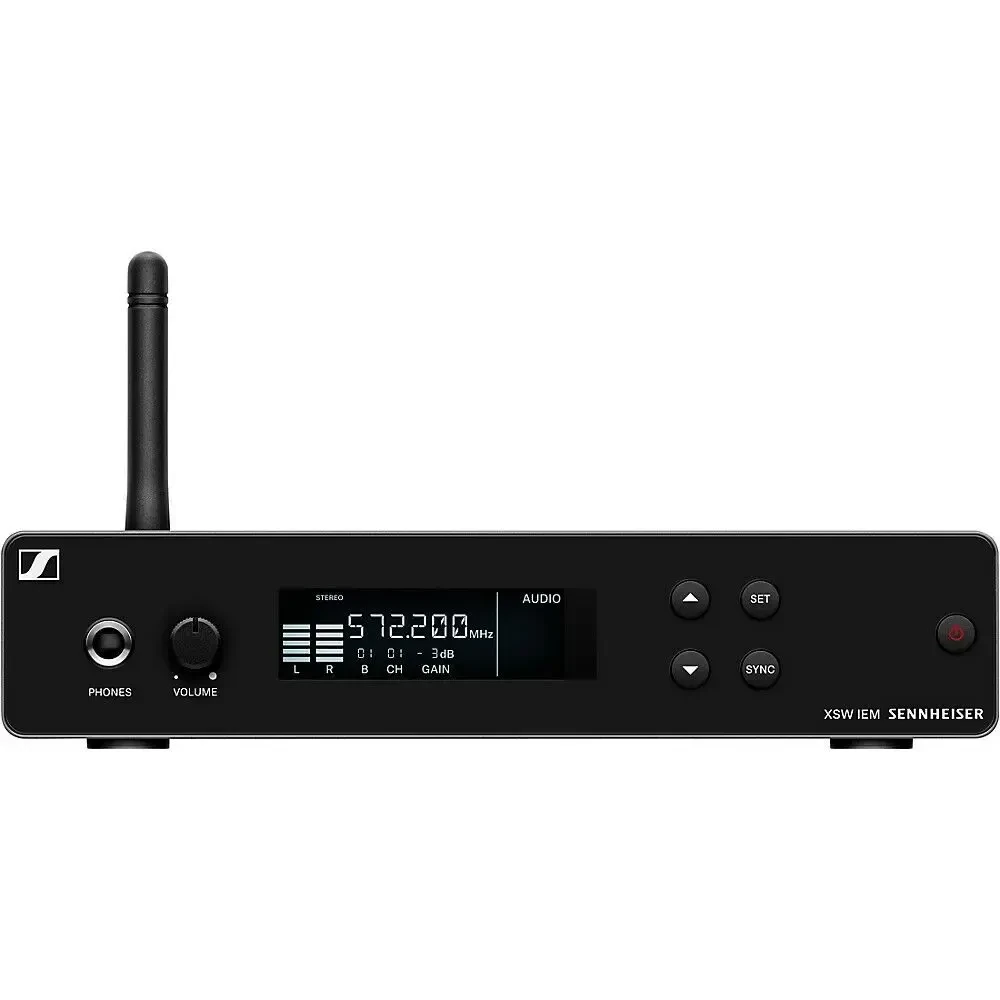

XSW IEM SR Stereo Transmitter
XSW BNC Antenna
IE 4 In-ear headphones
2 AA batteries
XSW Rack Mount Kit
NT 12-5CW Power Supply and Country Adapter
Quick Guide
Safety Guide
Compliance Sheet
Frequency Table
