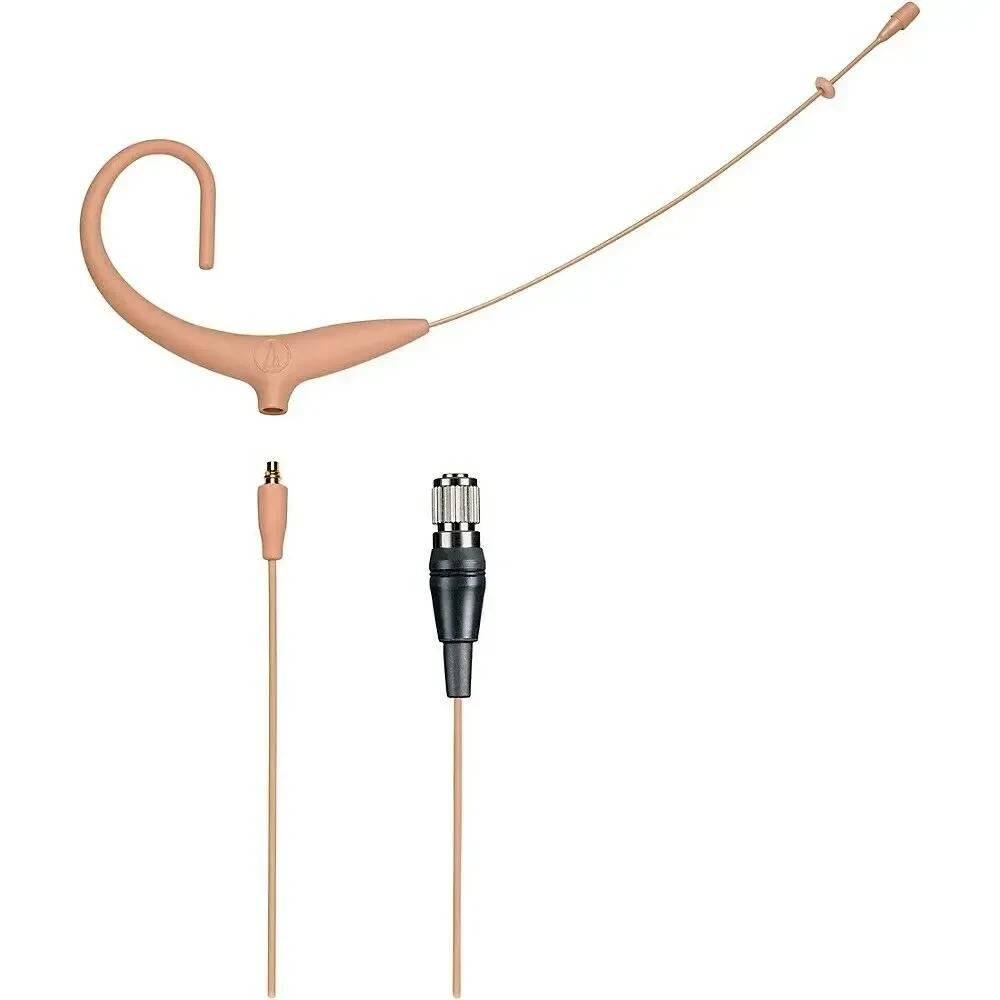

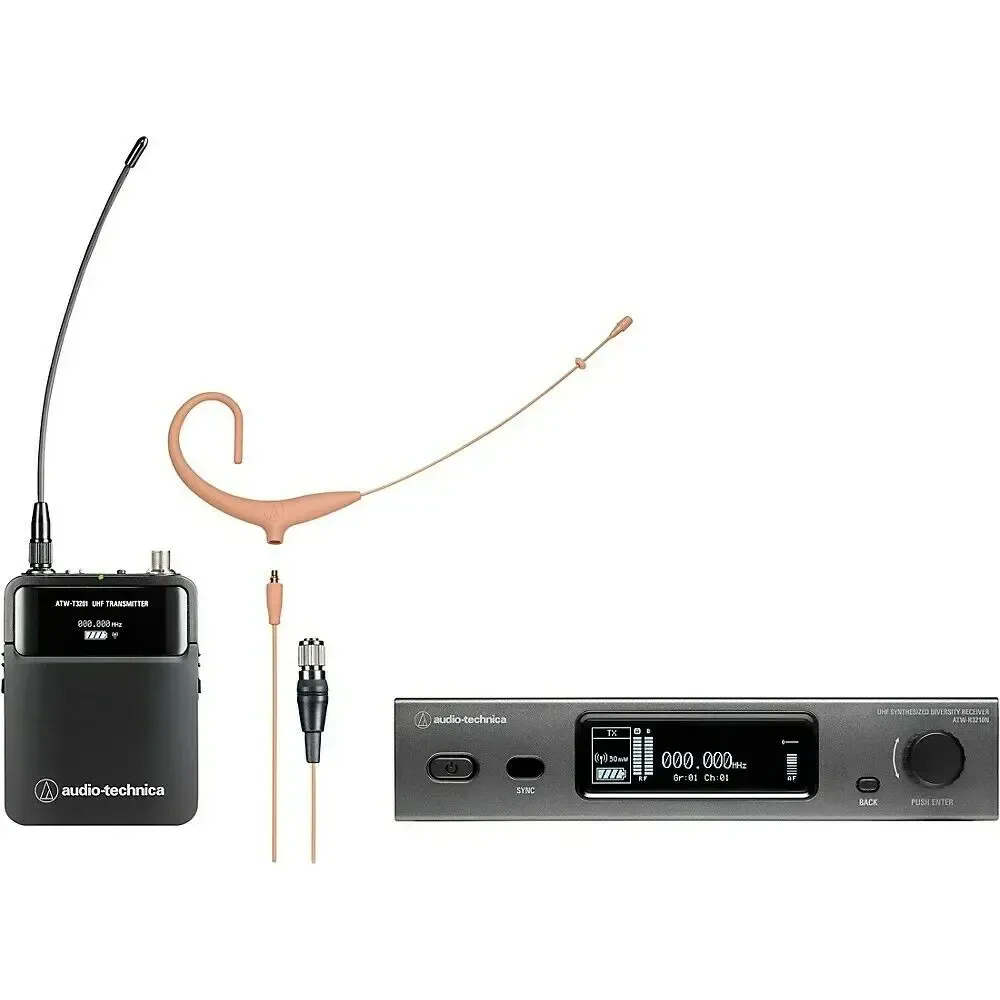

Микрофонная радиосистема Audio-Technica 3000 4th Gen Network Enabled UHF Wireless w/Headworn Mic Band DE2

Overall System Specifications
Operating Frequencies: Band DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Minimum Frequency step: 25kHz
Moderation Mode: FM
Dynamic Range: 115dB (A-weighted), typ.
Total Harmonic Distortion: < 1% (at 1kHz, 17.5kHz deviation)
Operating Range: 100m (300'), typical (Open range environment with no interfering signals)
Operation Temperature Range: 23°F to 113°F (Battery performance may be reduced at very low temperatures)
Frequency Response: T3201: 40Hz-13kHz (-3dB)

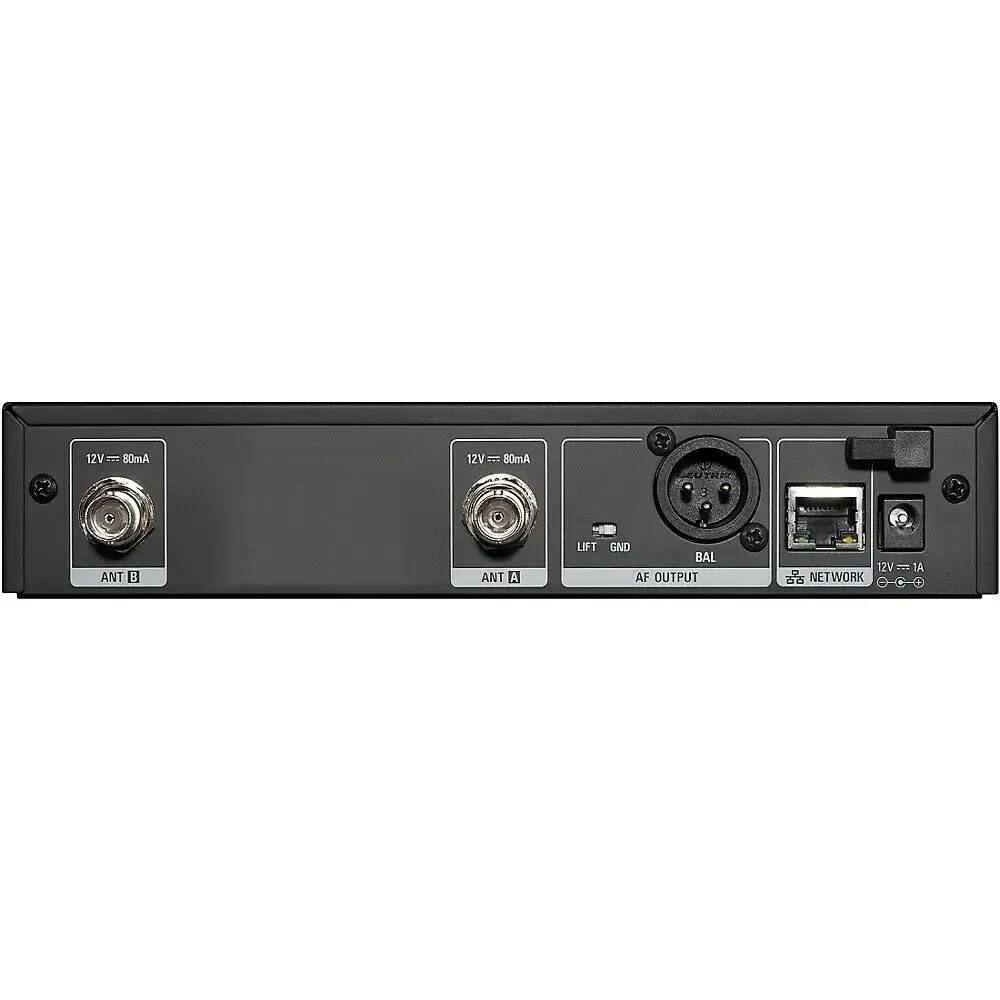

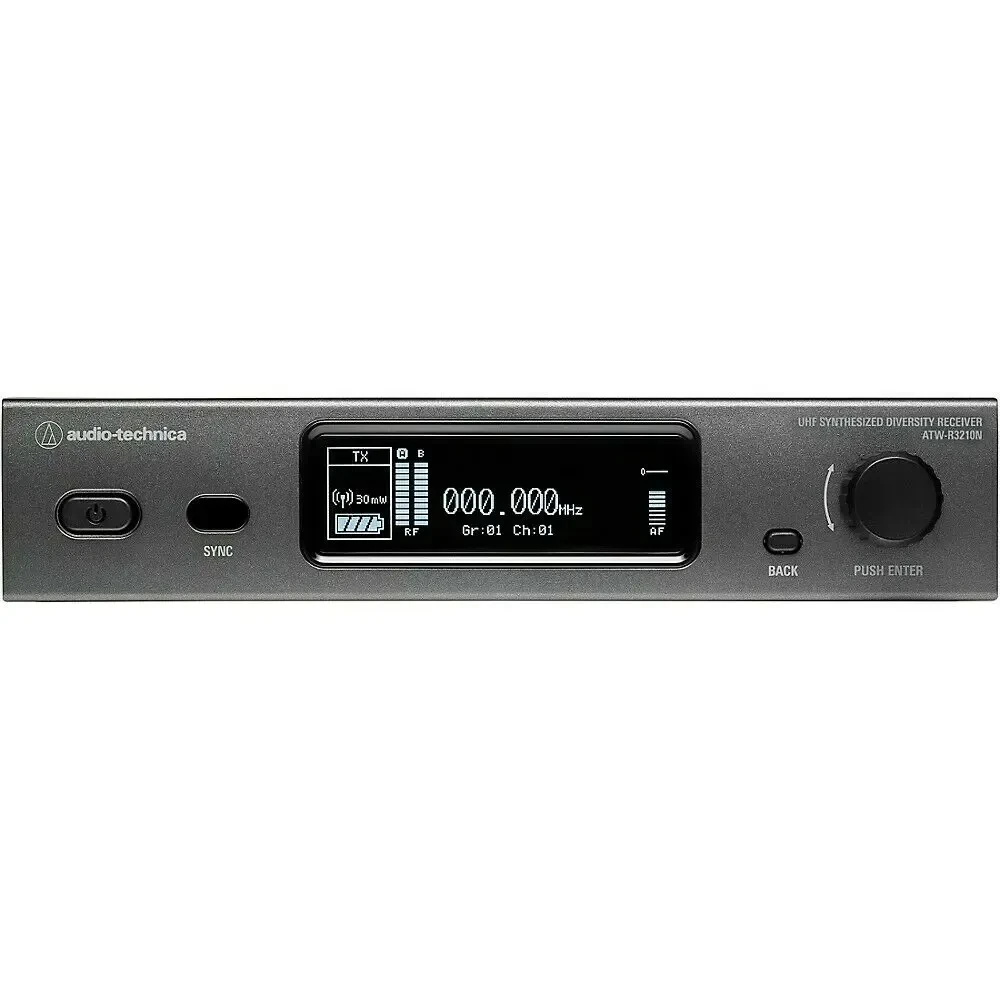

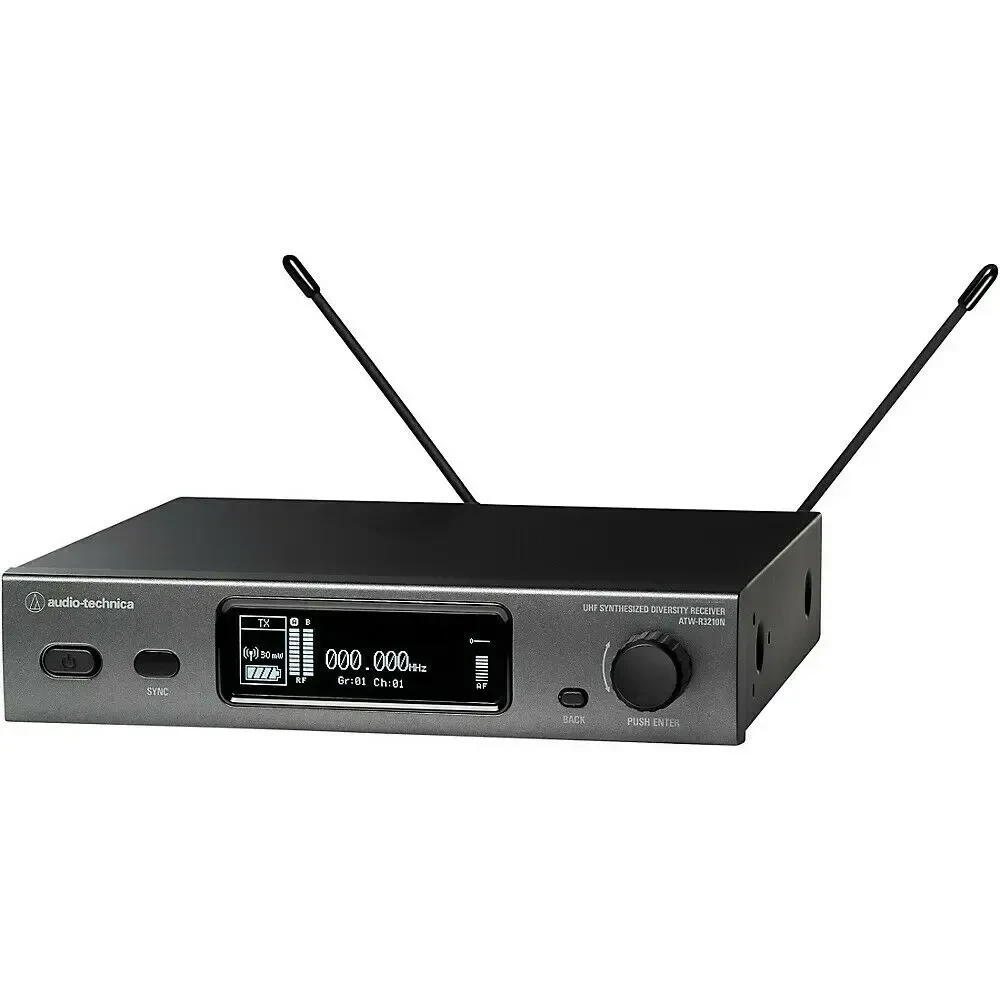

Receiver Specifications
Receiving System: True diversity
Image Rejection: 60dB nominal
RF Sensitivity: 20dBuV at 60dB S/N ratio
Maximum Output Level: XLR. Balanced: +14dBV
Antenna Input: BNC-Type, 50Ω
Bias: 12VDC, 160mA total
Power Requirements: 12V, 1A
Dimensions: 8.2” x 1.7” x 7.5”
Net Weight: 2.4 lb
Accessories Included: Two flexible UHF antennas, AC adapter (country dependent), rack-mount adapter, AT8631 joining plate

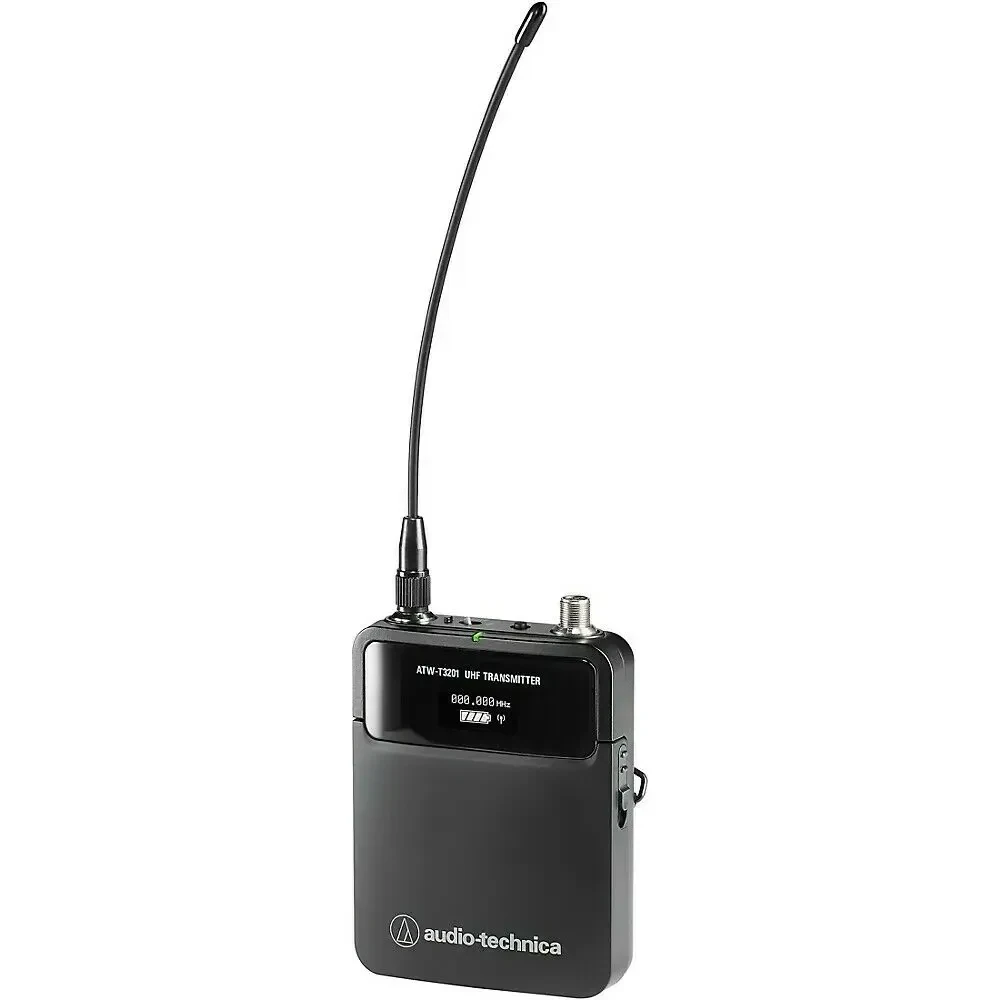

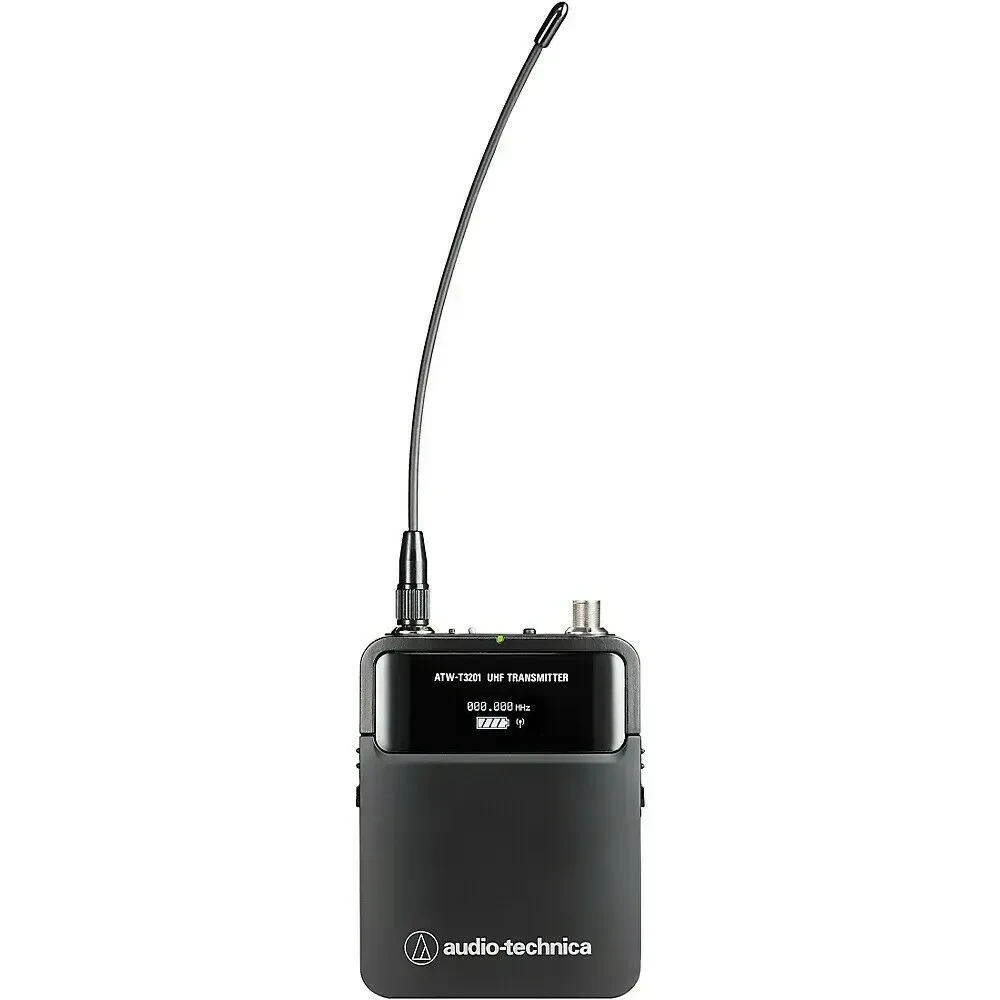

Body-Pack Transmitter Specifications
RF Power Output: High: 30mw, Low: 10mW at 50Ω, switchable
Spurious Emissions: Following federal and national regulations
Input Connection: Pin1: GND
Pin2: Inst Input
Pin3: Mic Input
Pin4: BIAS +5V
Batteries: Two 1.5V AA, not included
30mW : 8 hours
10mW : 9 hours
30mW : 9 hours
10mW: 9.5 hours
Dimensions: 3.2” x 2.5” x 0.9”
Net Weight: 0.22 lb
