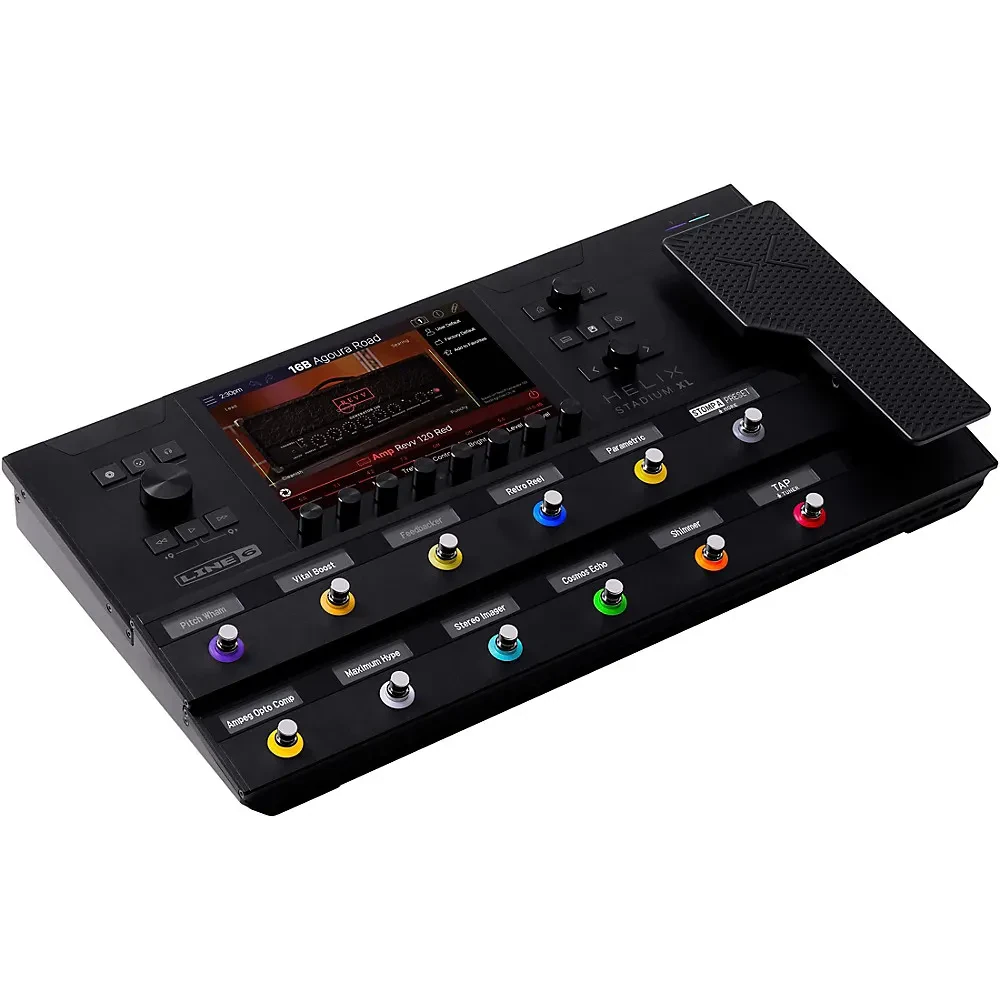

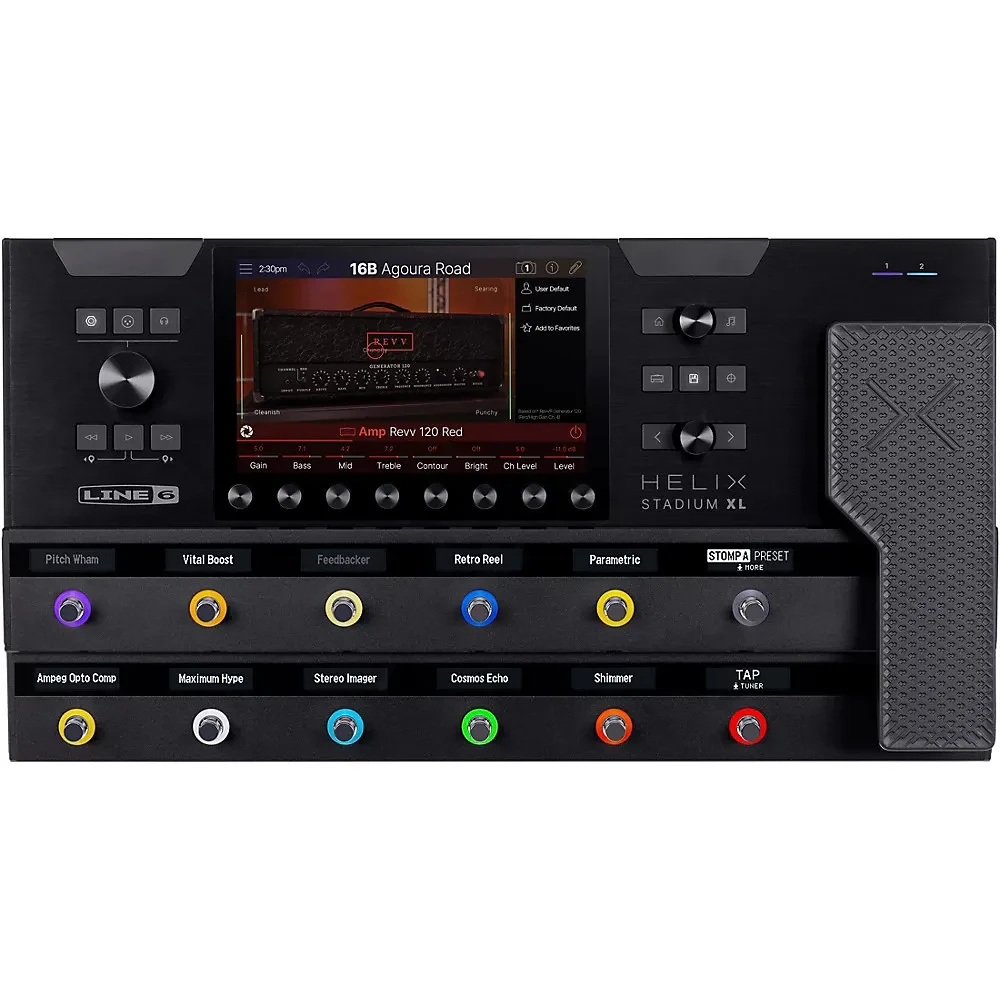

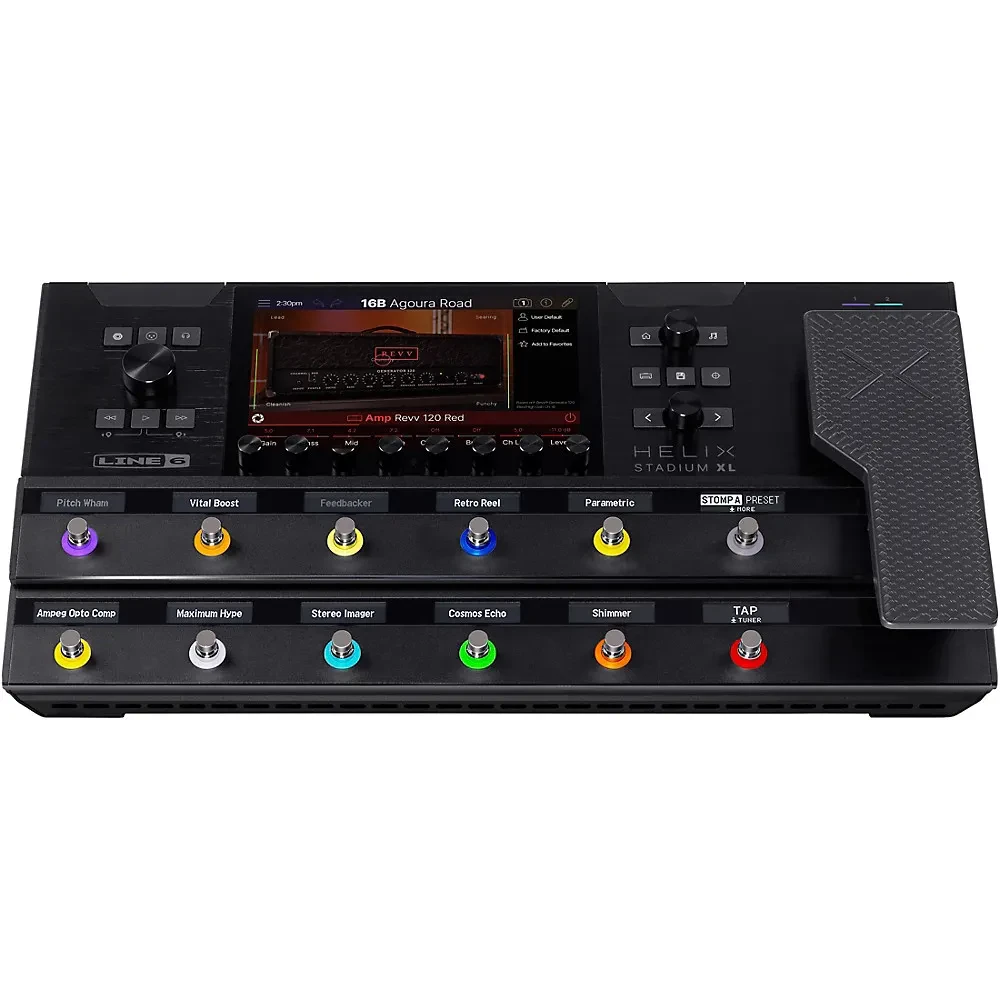

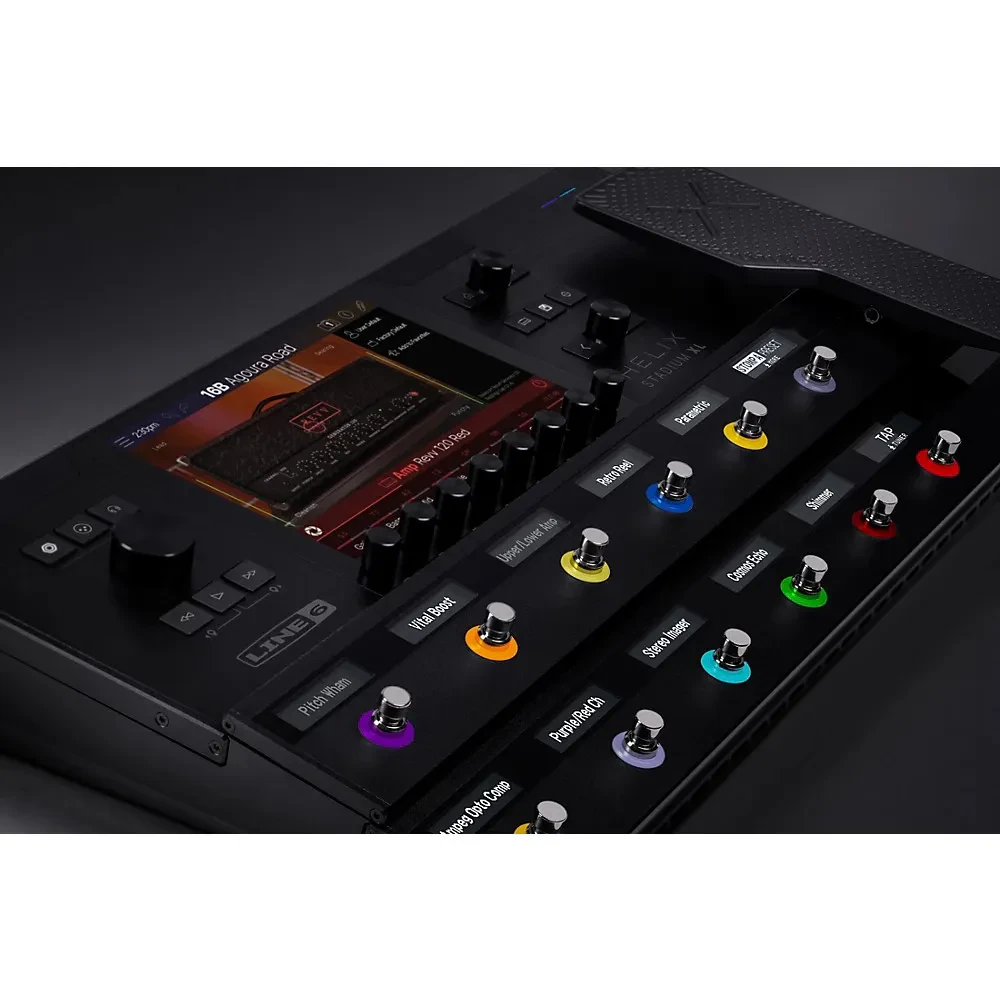

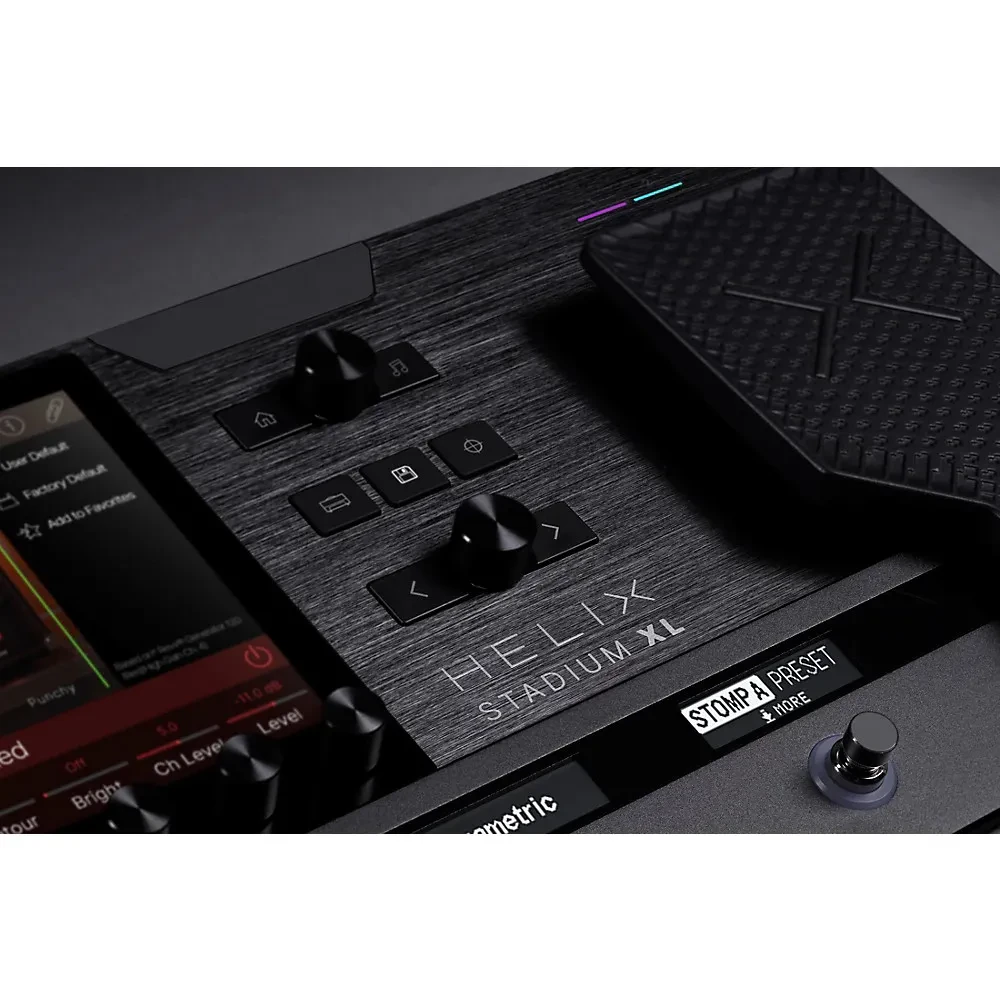

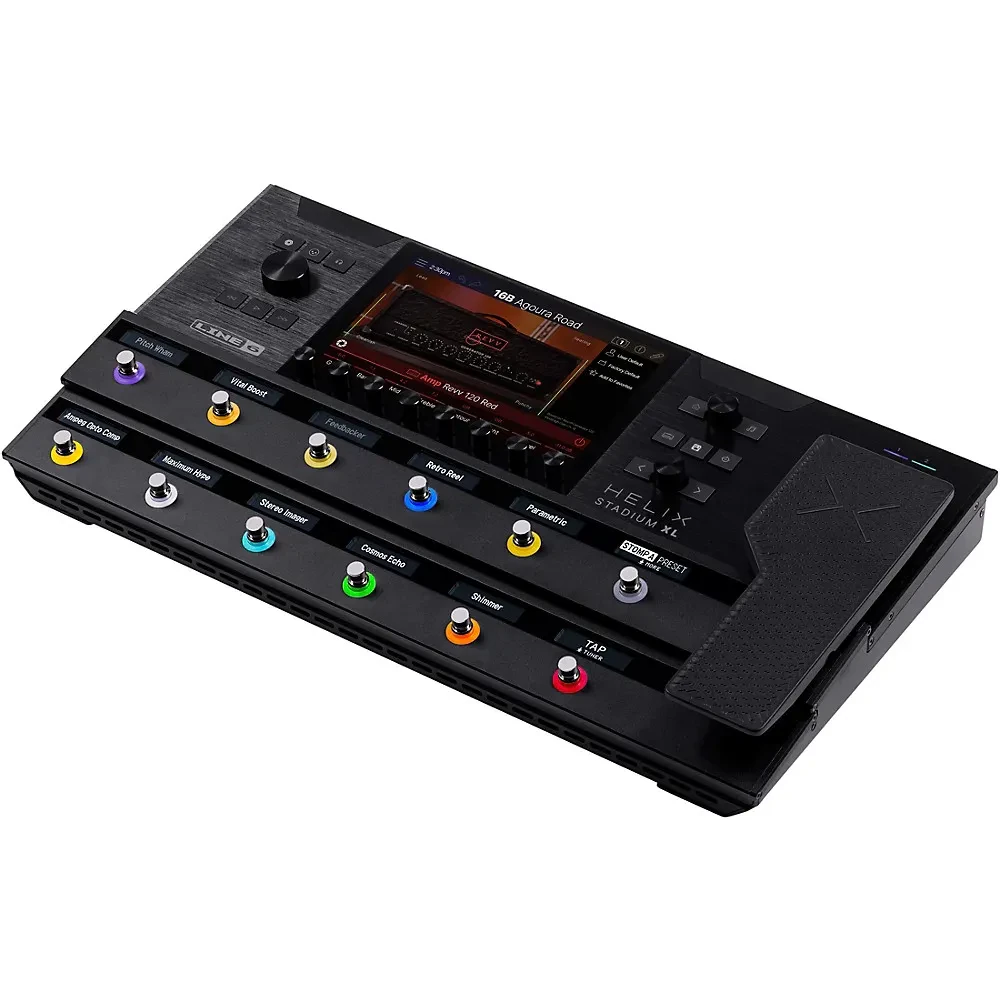

Line 6 Helix Stadium XL Floor Multi-Effects Guitar Processor - Black

Product Type
Type: Flagship amp and effects processor
Modeling & Cloning
Modeling engine: Agoura modeling methodology
Cloning: Proxy cloud-based amp, cab and effect cloning
Hype control: Morphs between authentic and idealized amp sounds
Signal processing
Dynamic blocks: Up to 48
Signal paths: Up to four stereo paths
Effects: 260+ premium Line 6 effects
Routing: Matrix mixer for separate output mixes
User Interface
Main display: 8" high-resolution touchscreen
Scribble strips: 12 OLEDs (128x32)
Knobs: 11
Buttons: 13
User Interface Features
Focus View: Yes (contextual parameter control)
Preset Audition: Yes (audio preview and info text)
Editing software: Free Helix Stadium Edit application
Wireless control: Built-in Wi-Fi and Bluetooth
Footswitches & Expression Pedals
Footswitches: 12 onboard with OLEDs, up to four external

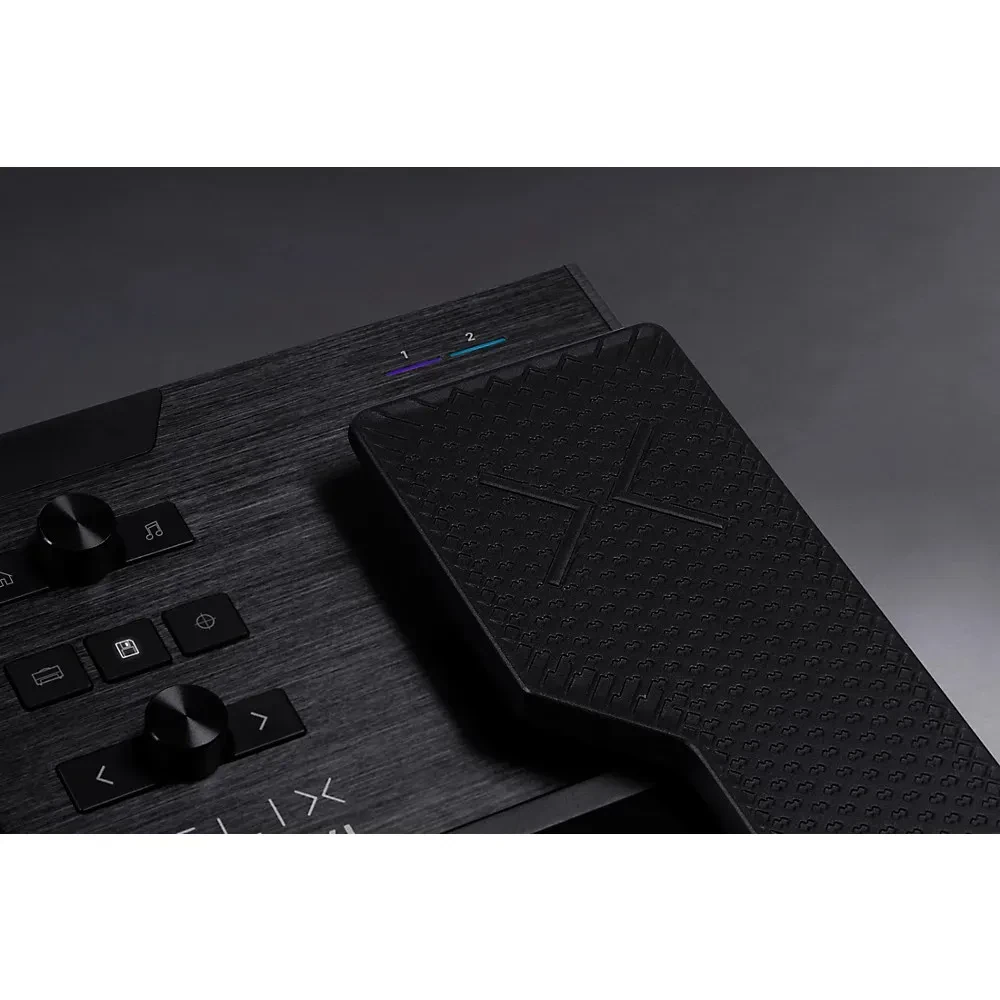

Expression pedal: 1 onboard treadle, up to four external

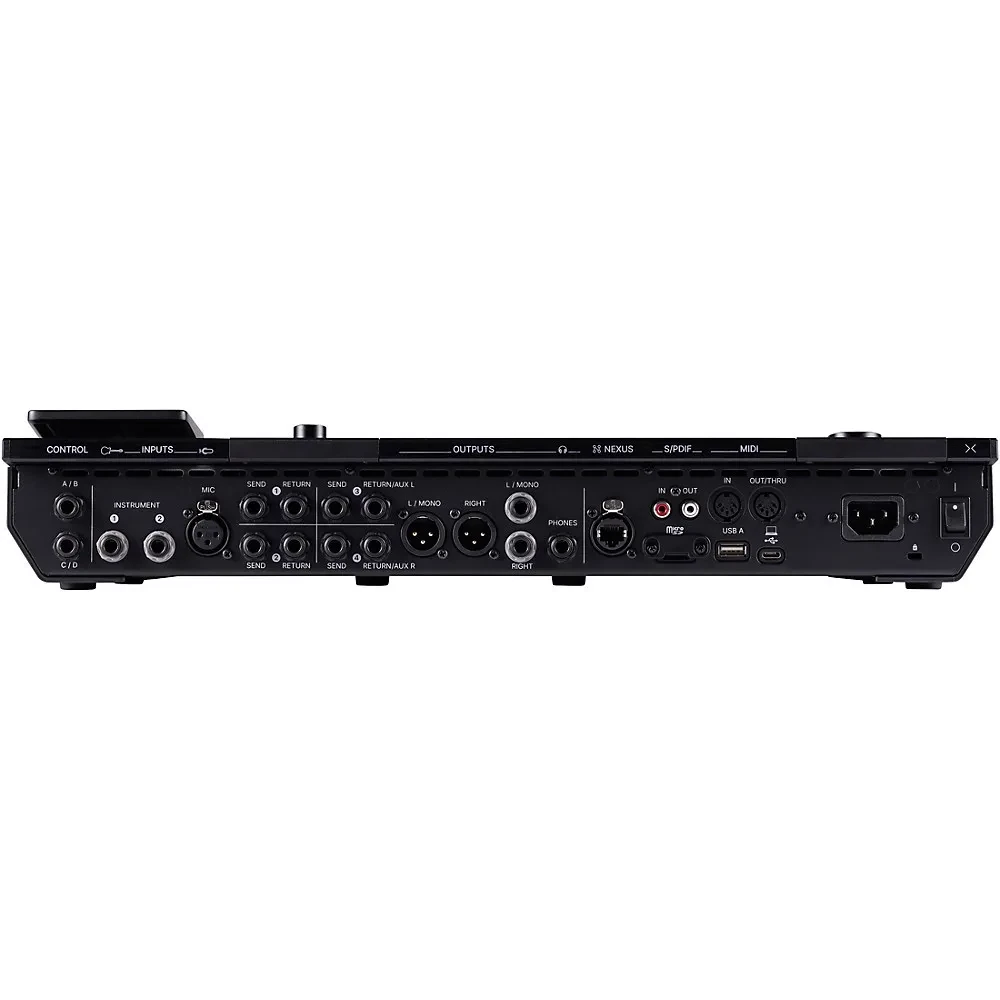

I/O & Connectivity
Instrument inputs: 2
Microphone input: 1
Line outputs: XLR and 1/4"
Headphone output: 1
Send/return jacks: 4
Control jacks: 2 multipurpose (dual function)
Digital I/O: S/PDIF
USB ports: USB MIDI + USB-A
MIDI: MIDI DIN In/Out/Thru
Expansion: Nexus port
Expansion Support
Optional Expand D10: Adds VDI (Variax), L6 LINK (Powercab+) and 8-channel optical output
Showcase Engine
Automation: Controls presets, snapshots, MIDI, lighting and video
Playback: Plays up to 8 internal stereo audio tracks, tempo-synced
Preset Compatibility
Helix/HX presets: Fully compatible
Firmware Architecture
Future-ready: Supports upcoming updates and tools
Physical Dimensions & Weight
Width: 19.4"
Depth: 11.9"
Weight: 11.5 lb. (5.25 kg)
