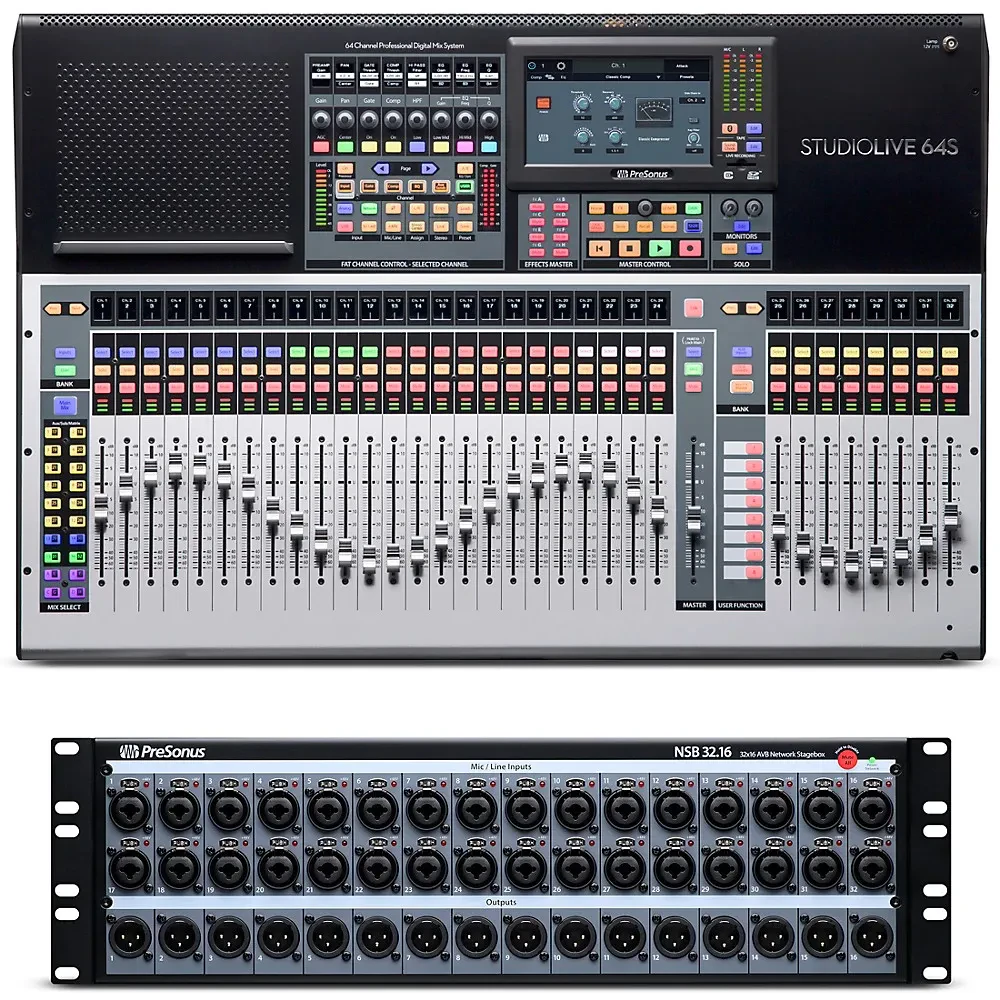

PreSonus StudioLive 64S 64-Channel Mixer Package w/NSB 32.16 Network Stage Box

This bundle from PreSonus contains the StudioLive 64S mixer and the NSB Network Stage Box

With the 64-channel StudioLive 64S and a full suite of integrated software, PreSonus delivers the most powerful and flexible digital console available for installed sound, touring and recording—and the best value. Powered by the PreSonus quad-core FLEX DSP Engine, no other mixer can match its 128-channel (64x64) USB recording, 76 mixing channels, 43 buses and an astounding 526 processors. Features such as password-protected user profiles for restricting feature access and mixer scenes organized by project, make the StudioLive 64S ideal for installed sound. Thanks to built-in AVB networking, the StudioLive 64S integrates with stage boxes, personal monitor mixers, switches and more. Managing 76 total inputs is easy with 32 FlexMixes and 24 DCA groups. The Fat Channel processing section offers expandable plug-ins with vintage-style EQ and compression options on every channel and output bus.

Designed to work seamlessly with the StudioLive 64S mixer, the PreSonus NSB 32.16 stage box offers 32 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All sixteen outputs employ locking XLR jacks. A built-in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with multi-position rack ears allows I/O to be available from the front or the rear of the rack, and flushed or recessed for flexible installation. As a standard 3U 19" rack unit, the NSB 32.16 is compatible with most racks and universal stage pockets.

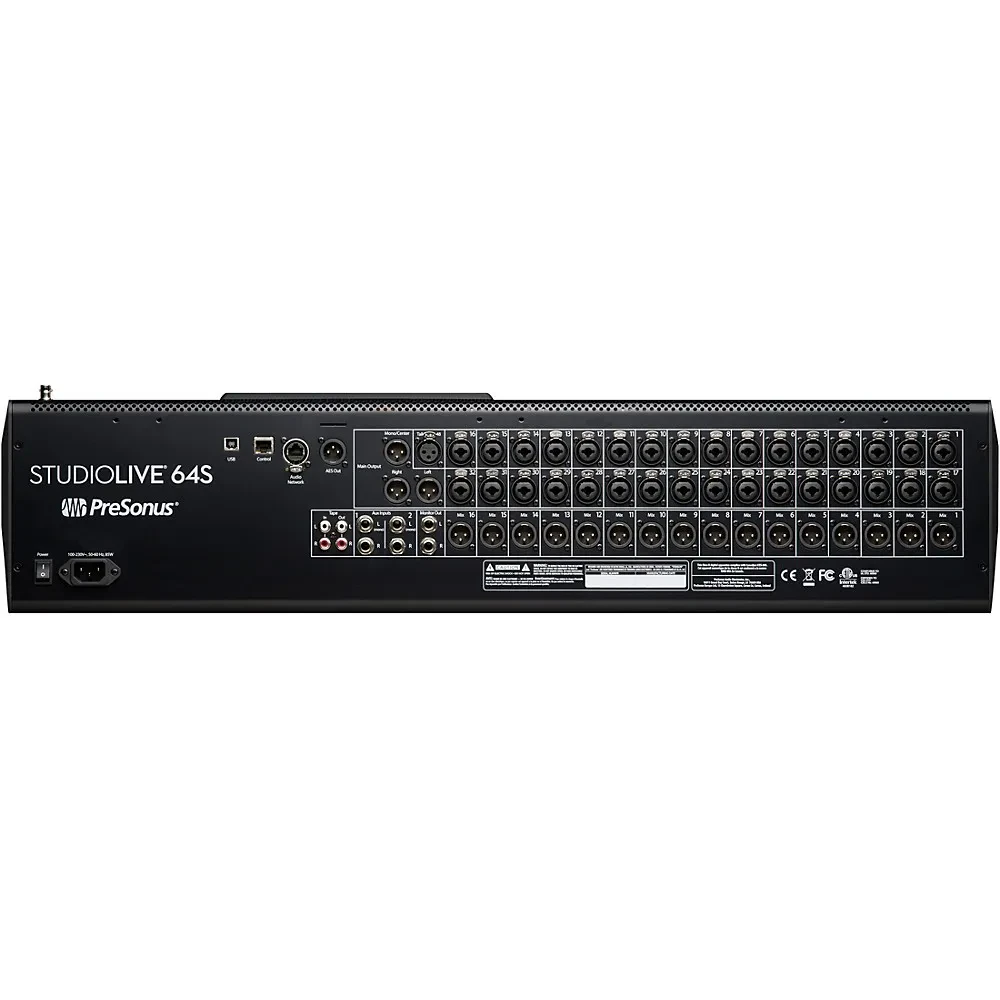

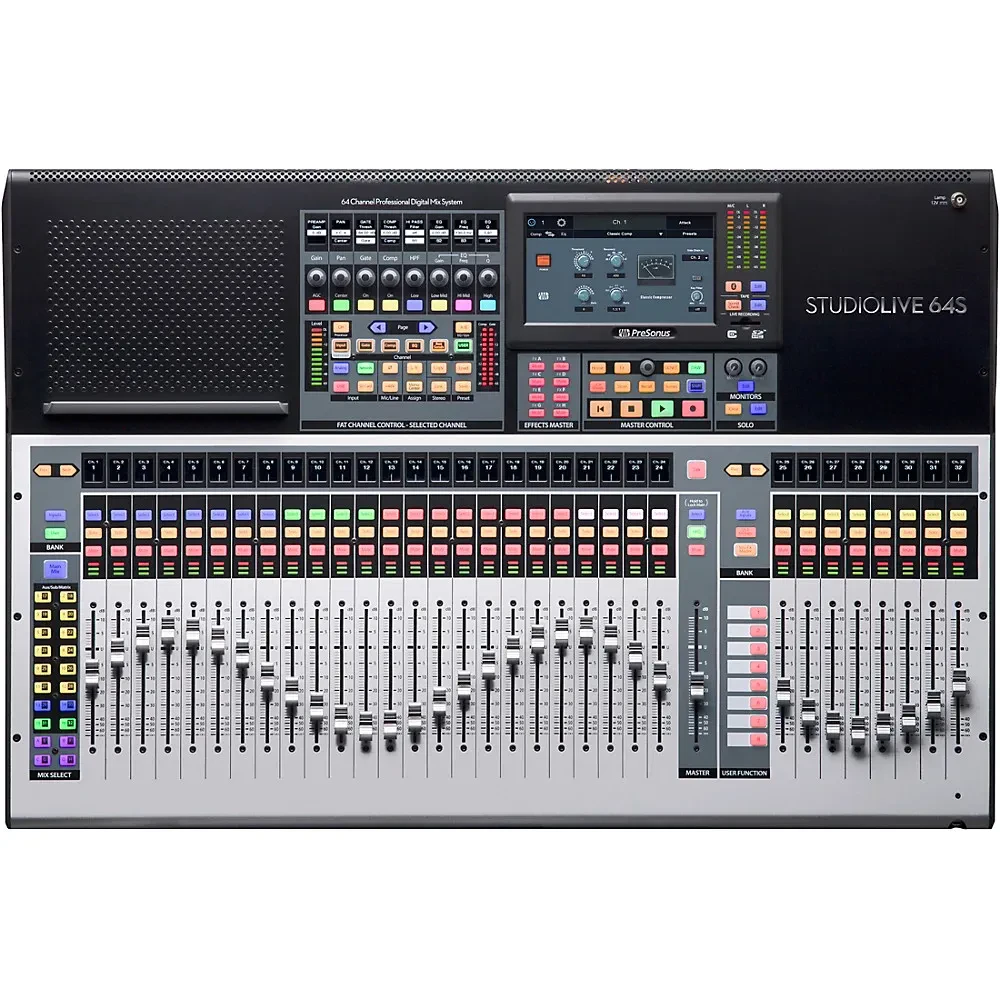

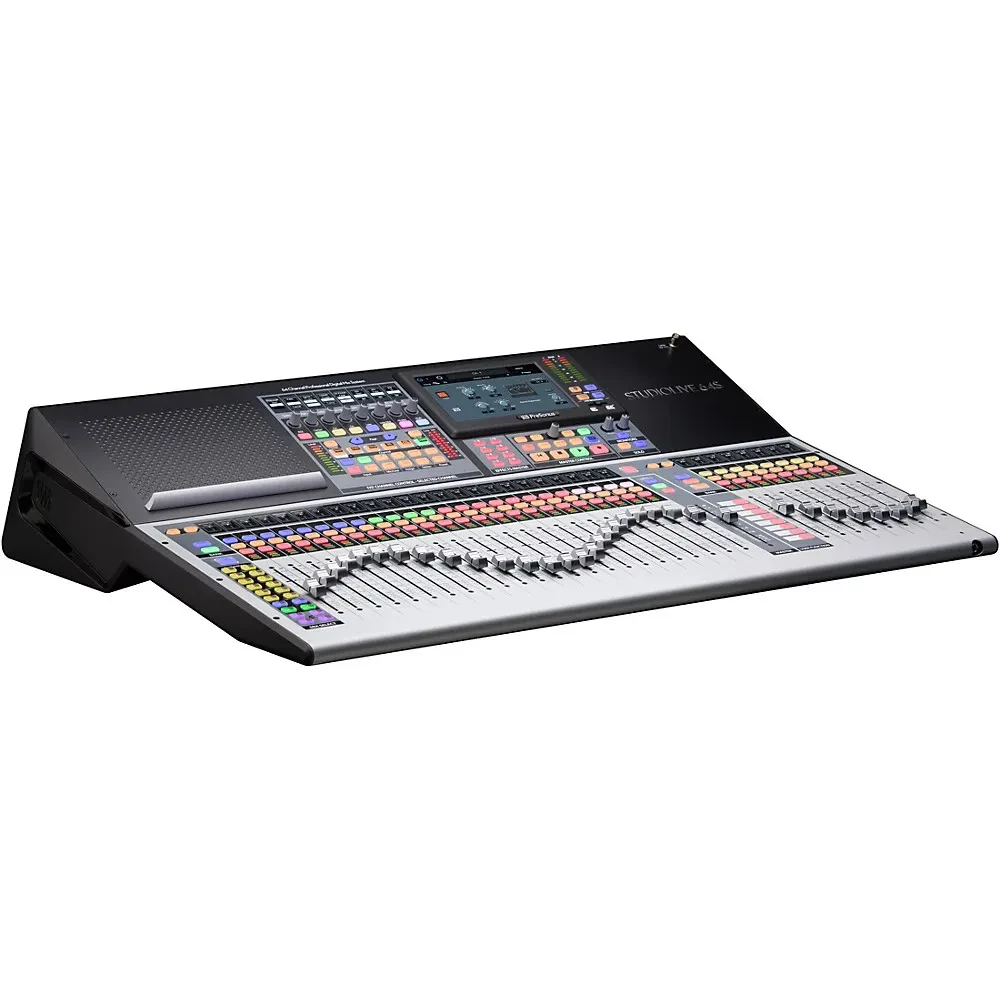

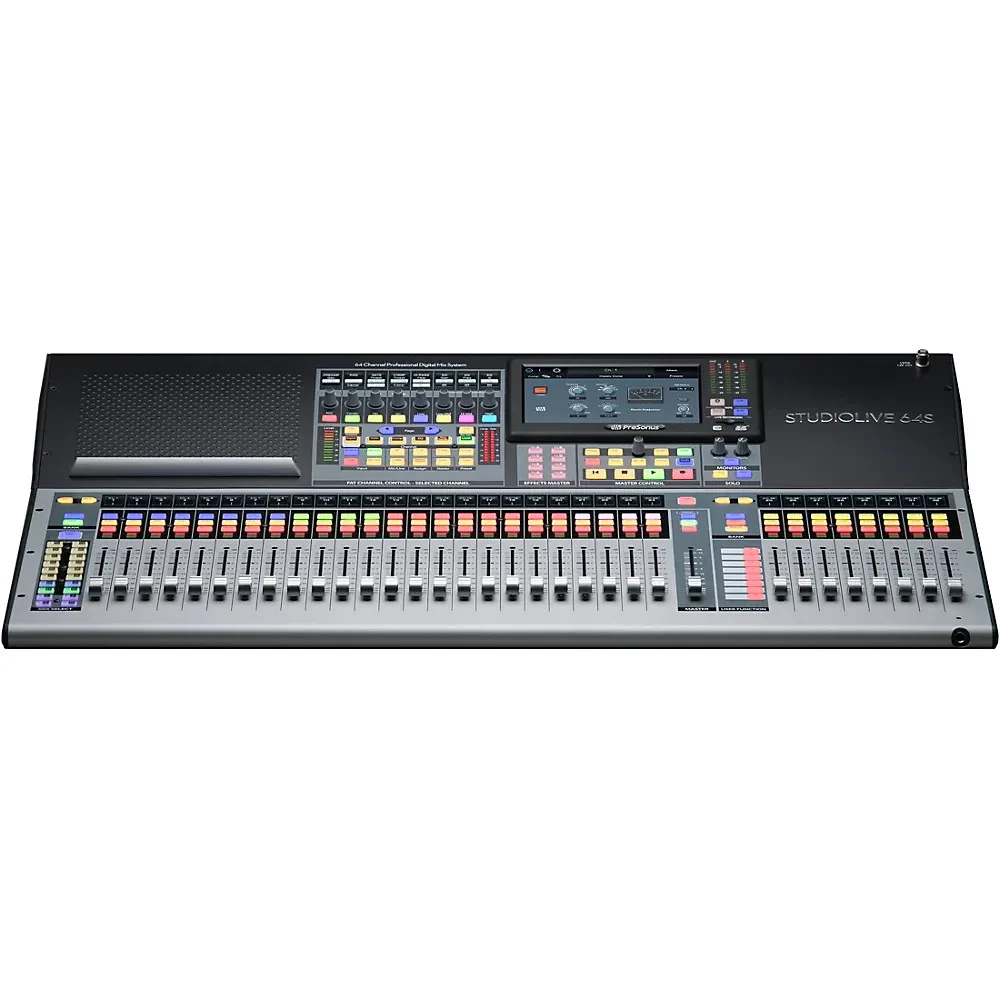

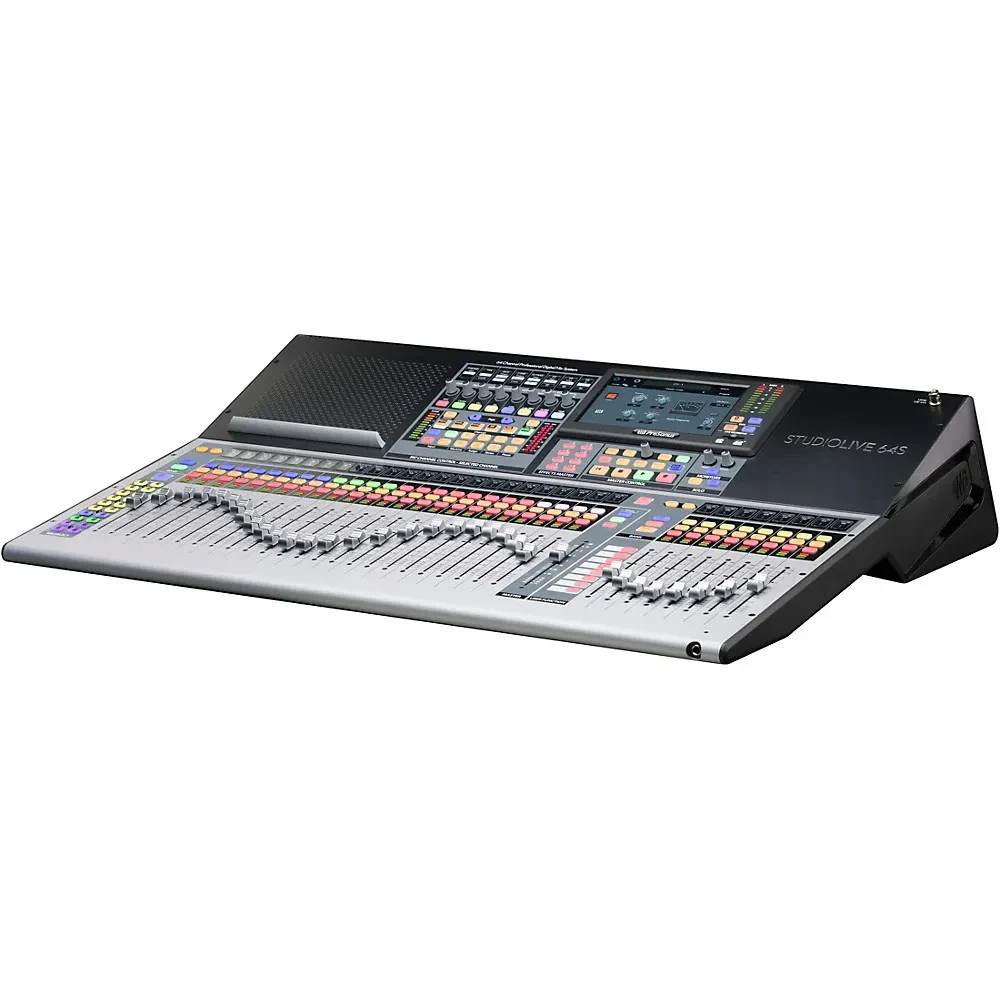

StudioLive 64S Mixer
Powerful and flexible digital console for installed sound, live sound and recording
Quad-core FLEX DSP Engine powering 526 simultaneous processors
32 FlexMixes (AUX mixes, subgroups or matrix mixes)
Fully recallable with touch-sensitive motorized faders
Main Left, Right and Mono/Center buses with per-channel mono send level and center divergence control
Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other StudioLive Series III mixers and the SW5E AVB switch
Built-in 128-channel (64x64) USB interface—the most of any digital mixer on the market
Onboard multitrack SD card recorder with true Virtual Soundcheck
Expandable, plug-in processing with vintage-style EQ and compression options on every channel and output bus
32 mic/line inputs with recallable XMAX preamps
33 touch-sensitive, motorized faders
All-new scene management, with scenes organized into projects with scene lock and channel safe
Password-protected user profiles enable restricting access to specific features
FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
Channel scribble strips and input metering
DAW Control (Advanced Studio One control integration/MCU emulation for Logic/HUI emulation for Pro Tools)
Complete solution: Includes UC Surface mix control software for macOS, Windows, Android and iPad; capture live-recording software and Studio One Artist DAW for macOS and Windows; compatible with free QMix-UC personal monitoring control for iPhone and Android

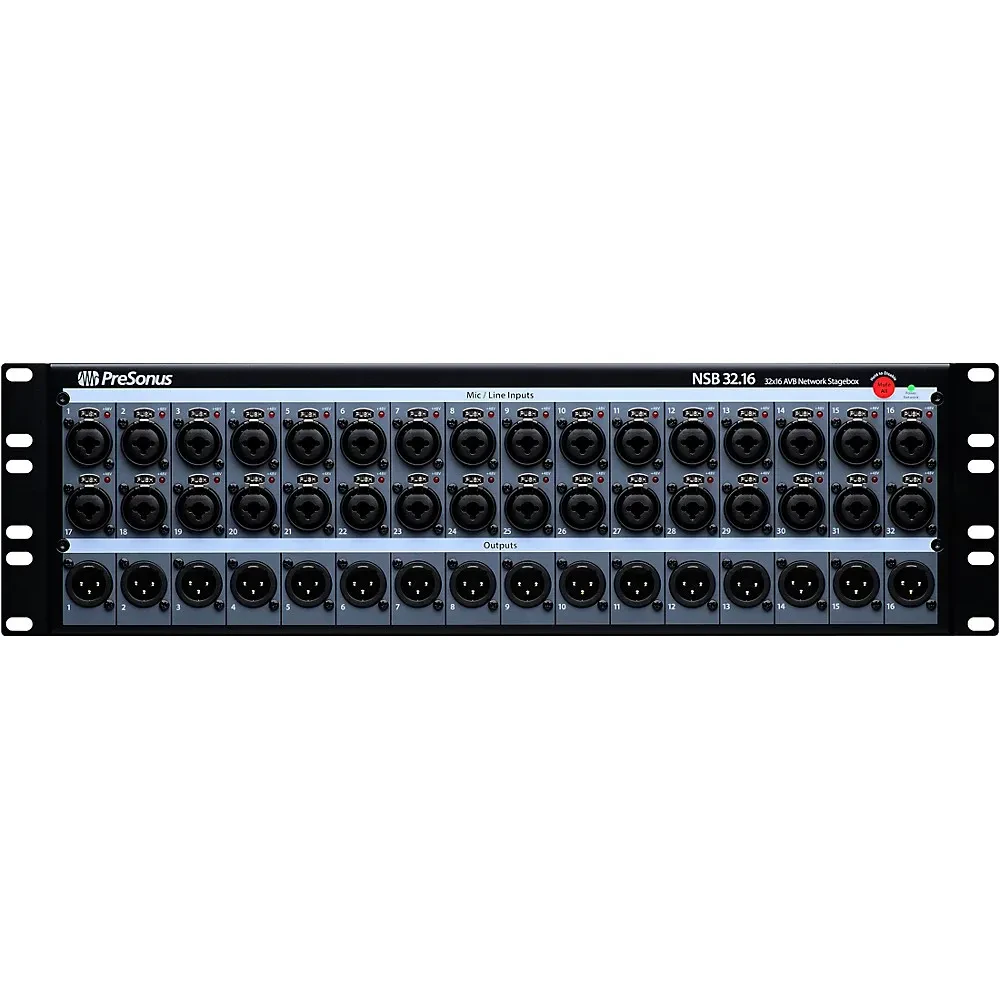

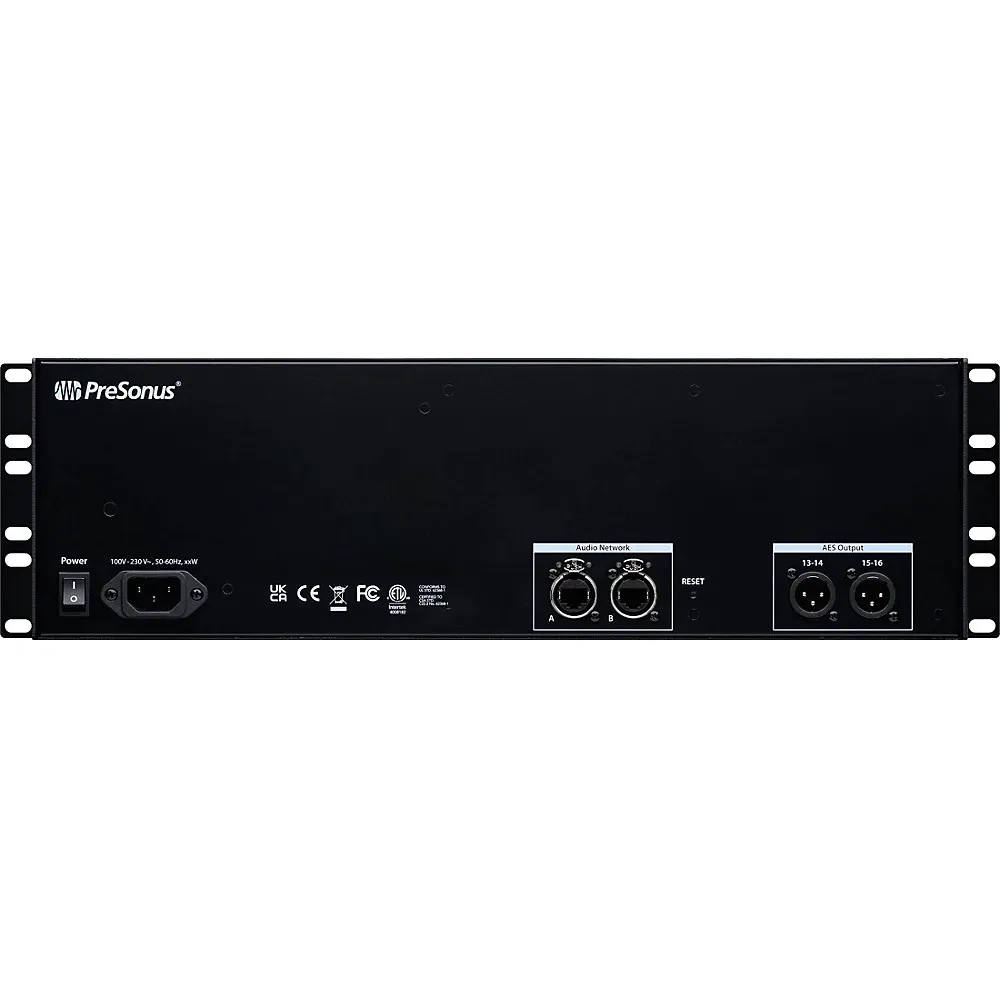

NSB AVB-Networked Stage Box
Rugged 3U 19" rack enclosure with multi-position rack ears for flexible installation
32 remote-controllable XMAX preamps
Gain compensation provides independent control from multiple mixers
2 AVB ports with locking XLR Ethernet jacks
64x16 AVB (32 direct input channels + 32 gain compensated input channels)
Mute All button
Easy setup and remote gain control from StudioLive Series III mixers and free PreSonus UC Surface software
