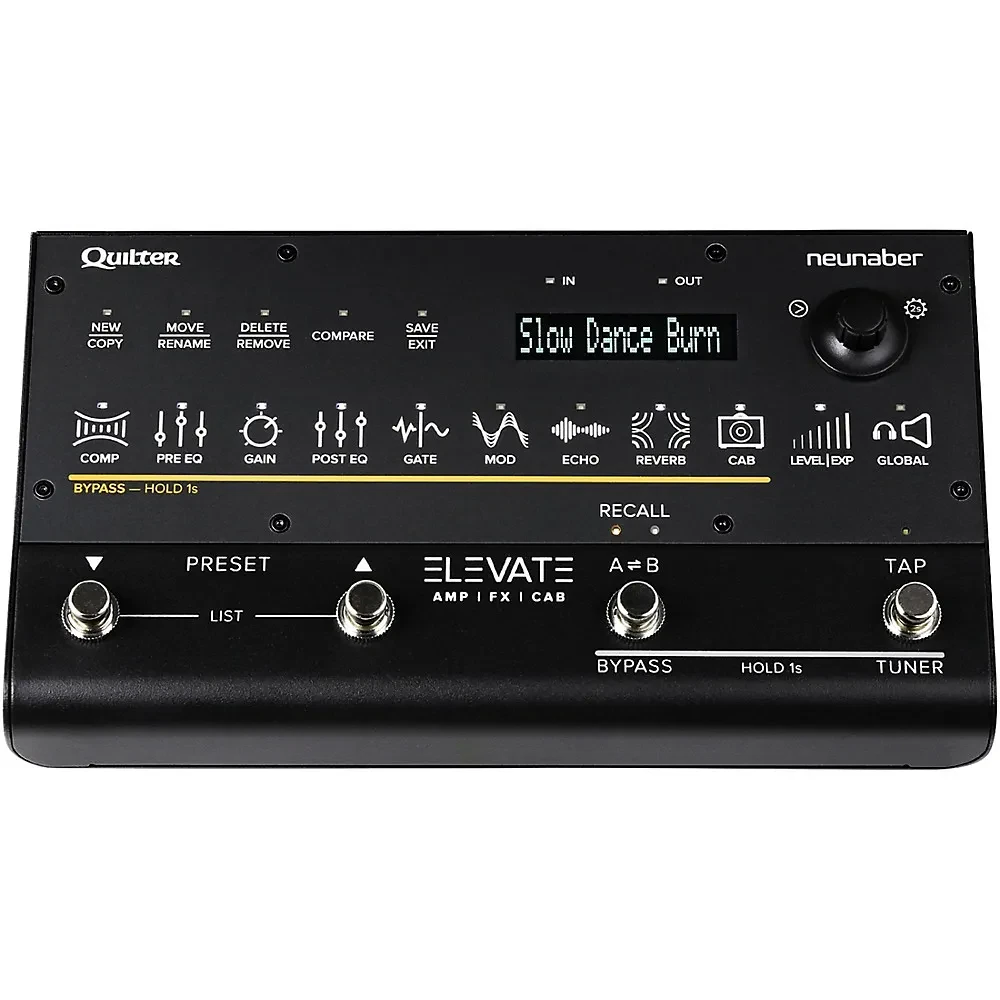

Quilter Labs Neunaber Elevate Amp FX Cab Pedal Black

Type
Product type: FX amp/cab pedal with multi-output and jam link compatibility
Audio Performance
Frequency response (bypassed): 10 Hz – 20 kHz (+0.5 / –2 dB)
Signal-to-noise ratio (bypassed, A-weighted): 105 dB
Total harmonic distortion (bypassed, –12 dBV @ 1 kHz): 0.02%
Left-right level matching: ±0.1 dB
Latency: 1.6 ms
Inputs
Instrument level: –10 dBV nominal / 6 dBV maximum
Input impedance: 1 megaohm
JamLink wireless codec support: AAC, aptX, aptX HD, aptX LL, SBC
Outputs
Headphone/aux output type: Stereo TRS, unbalanced
Headphone output impedance: 0 ohm
Headphone output power: 800 mW max @ 1% THD, 32 ohm load
Recommended headphone load: 32 ohm (16 ohm minimum)
Line outputs: XLR (impedance balanced), 1/4" TRS (impedance balanced), TS (ground-compensated)
Line output impedance: 47 ohm
USB audio output: 24-bit stereo, 48 kHz, asynchronous with sample rate conversion
Controls
EXP input connector: TRS
Recommended potentiometer: 10k–100k ohm linear
Control signals: Tip (0–3.3V input), ring (3.3V, 10 mA max output), sleeve (ground)
MIDI input: 5-pin DIN
MIDI thru latency: 0 µs
USB connector: USB-C (USB 1.1 device class)
Tuner
Accuracy: ±1 cent (limited by display resolution)
Tuning range: C0 to B6
Power Supply
Connector type: 5.5 mm outer diameter x 2.1 mm inner diameter, tip-negative
Accepted input voltage: 9–12 VDC
Power consumption: 2.0 W (220 mA @ 9V typical)
Recommended power adapter: 9 VDC, 500 mA
Dimensions & Weight
Dimensions (W x D x H): 10" x 5.8" x 2.4" (254 x 147 x 62 mm)
Unit weight (without power adapter): 2.7 lb. (1.2 kg)
