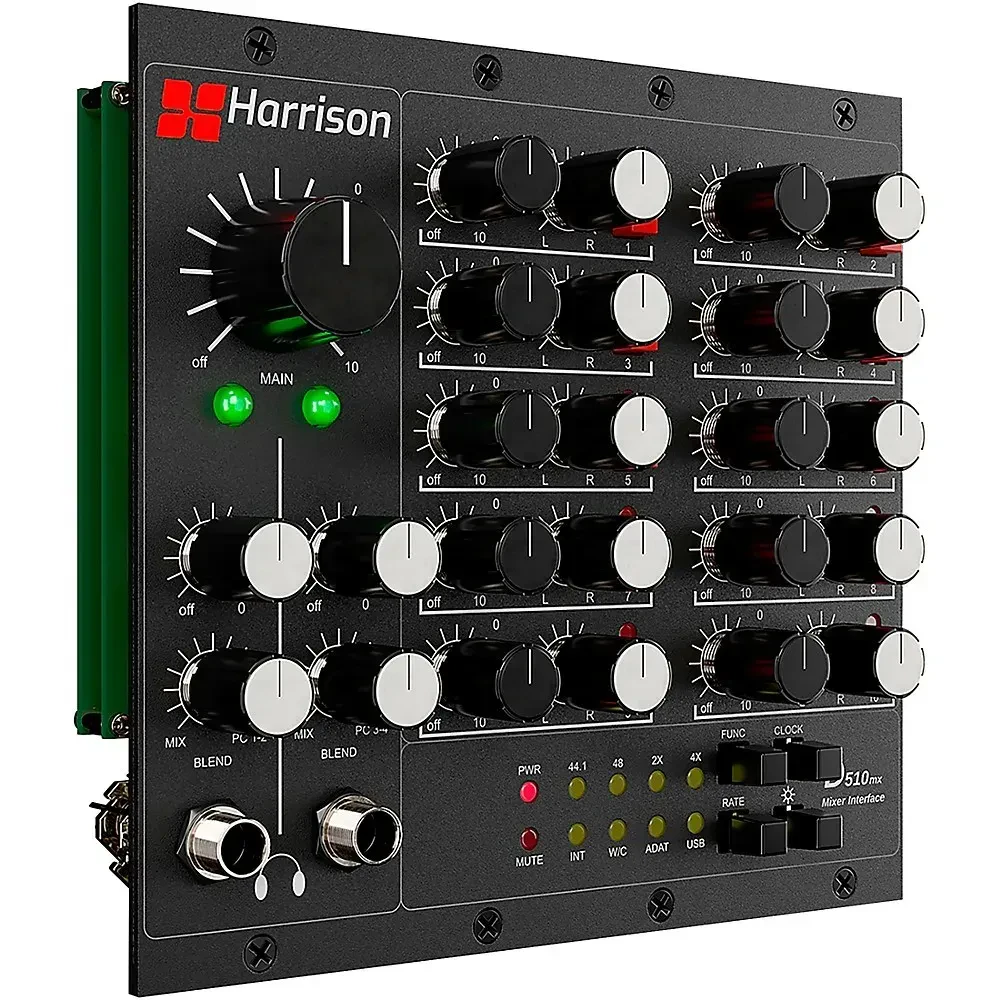

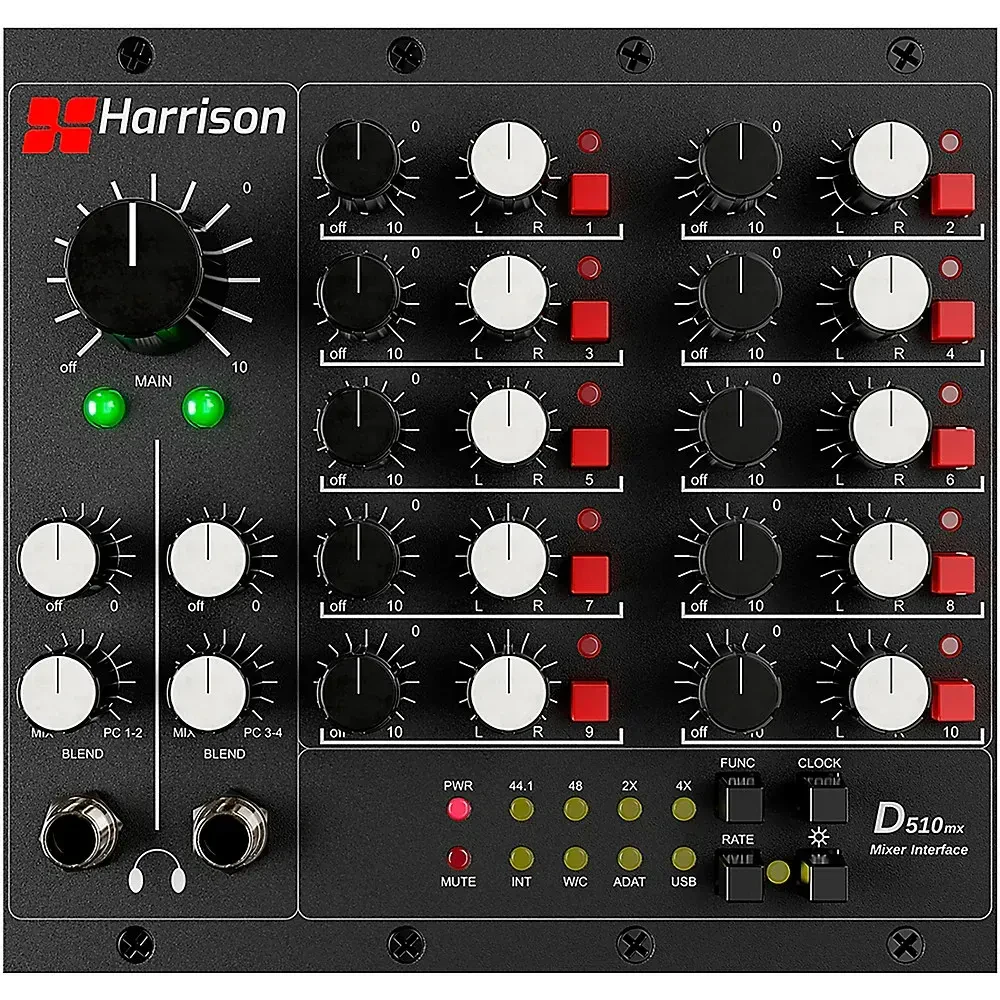

Harrison D510mx 10x2 Analog Mixer Interface Module for the D510r Rack

Inputs
Minimum gain: Less than or equal to -81 dB
Maximum gain: 11.5 dB
Frequency response: 20 Hz – 20 kHz +/- 0.25 dB
Maximum input level: +24 dBu
Noise A-weighted at minimum gain: Less than -87 dBu
THD+N at 1 kHz 10 dBu mid gain: Less than 0.003%
Pan law: -3 dB
Outputs
Maximum output level: +24 dBu
Minimum gain: Less than or equal to -85 dB
Maximum gain: 9.5 dB
Frequency response: 20 Hz – 20 kHz +/- 0.25 dB
Noise A-weighted at minimum gain: Less than -97 dBu
THD+N at 1 kHz 10 dBu mid gain: Less than 0.003%
Headphone outputs
Maximum output level: +21 dBu
Minimum gain: Less than or equal to -78 dB
Maximum gain: 0 dB
Noise A-weighted at maximum gain: Less than -82 dBu
THD+N at 1 kHz 20 dBu max gain: Less than 0.004%
Connectors: Two TRS stereo headphone outputs
Signal metering
LED indicators: Tri-color LED signal presence
Green LED: Greater than or equal to -14 dBu
Orange LED: Greater than or equal to +4 dBu
Red LED: Greater than or equal to +18 dBu
Build

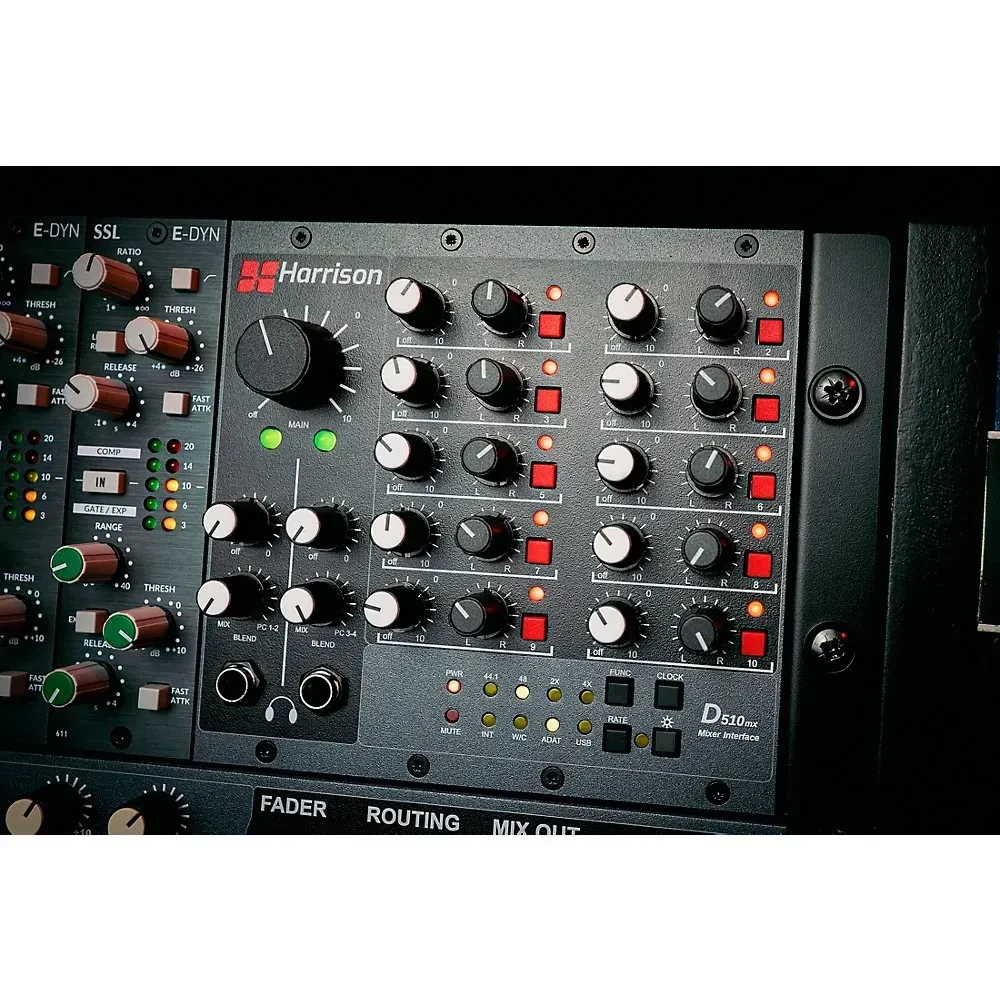

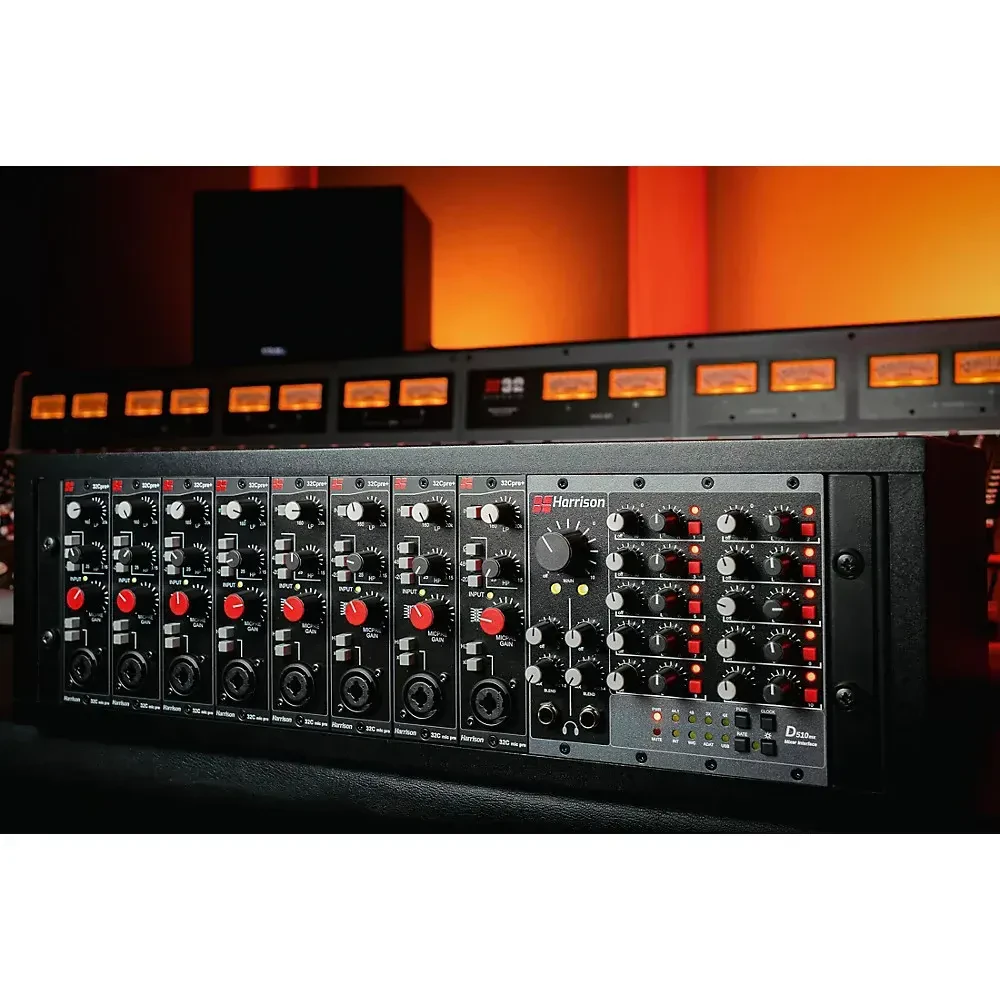

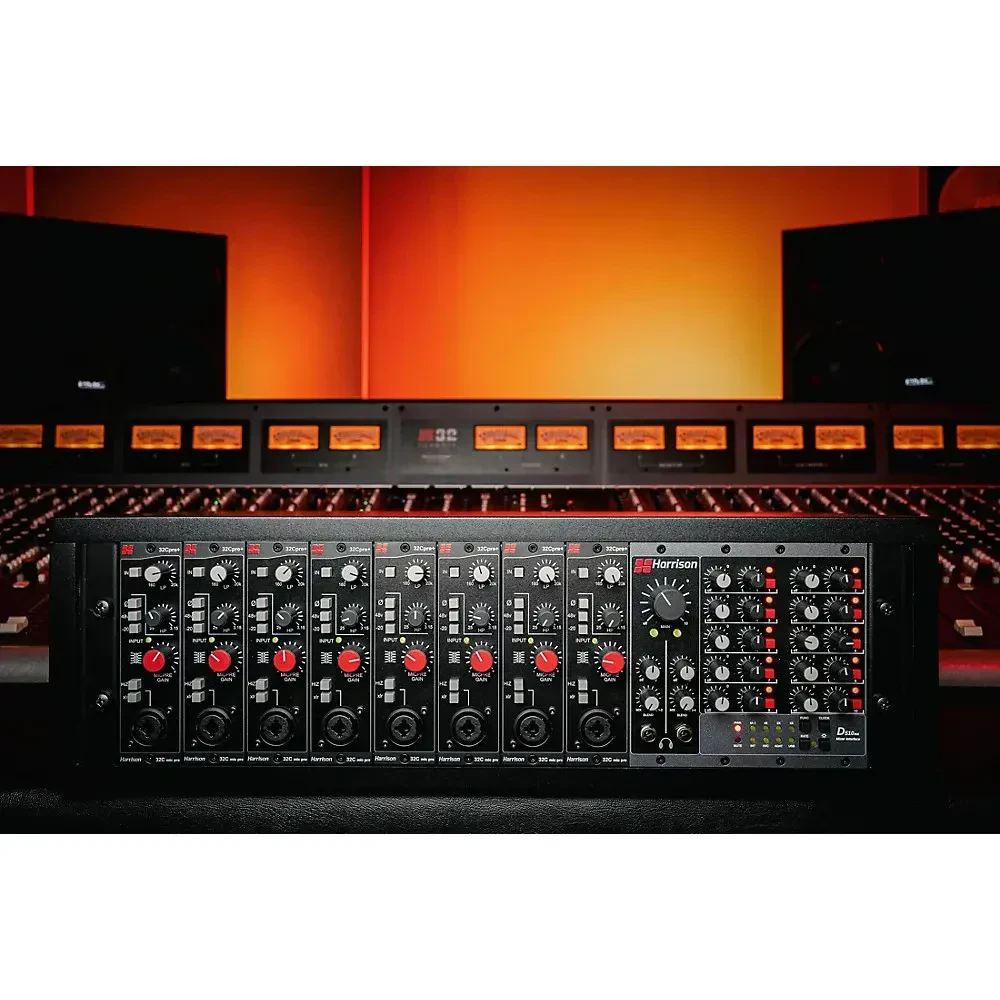

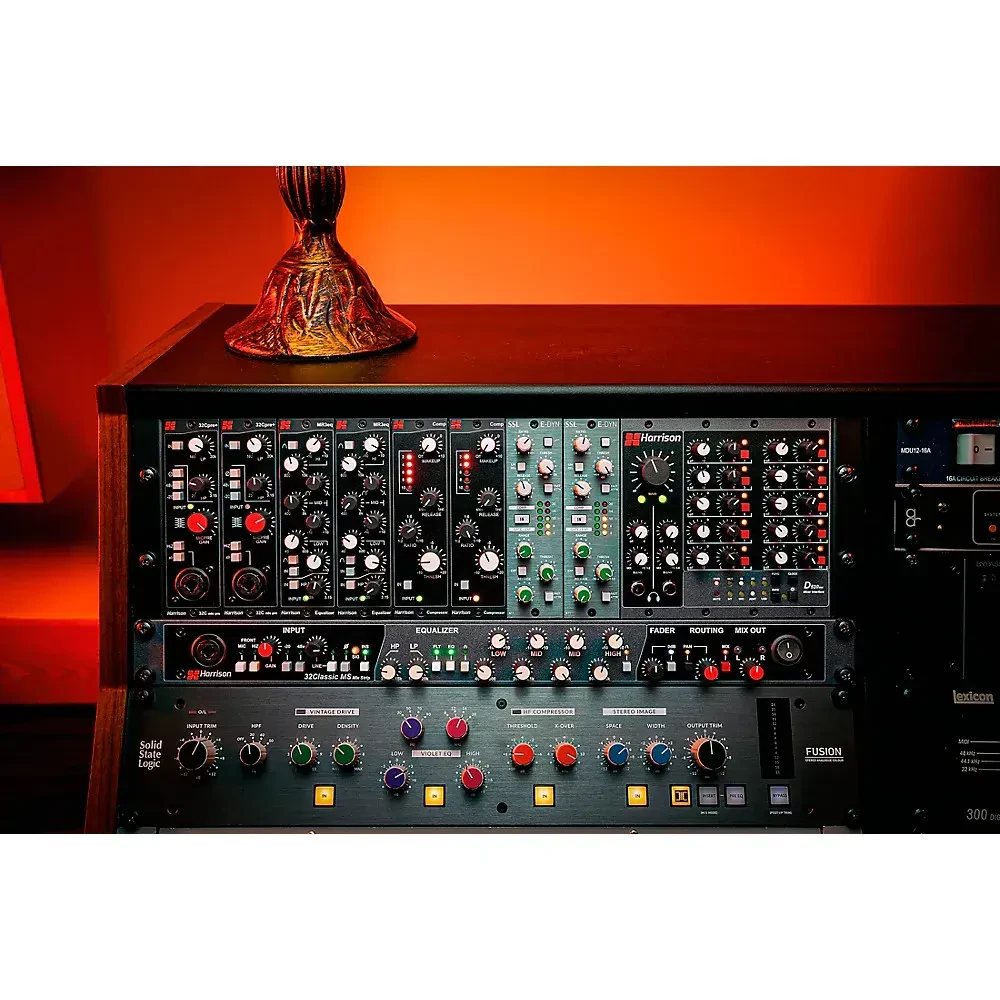

Module design: Fits into two slots of the Harrison D510r rack
Weight and depth: Compact and portable for flexible configurations
Compatibility: Pairs with optional D510dante audio interface card
Use case: Designed for 10x2 analog summing and monitoring
