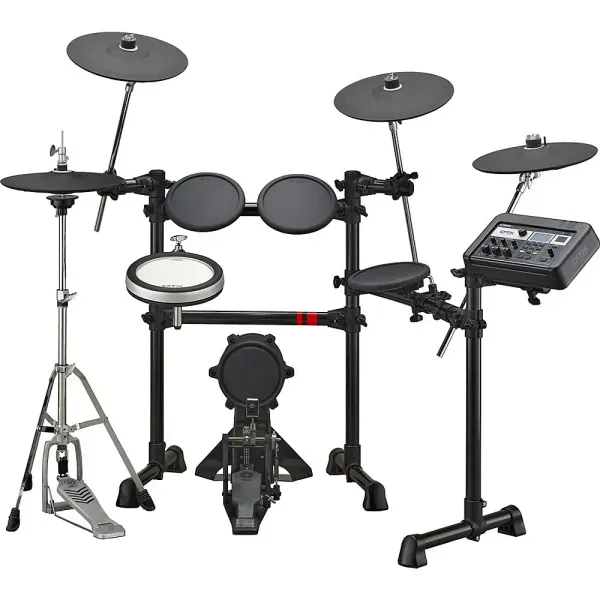

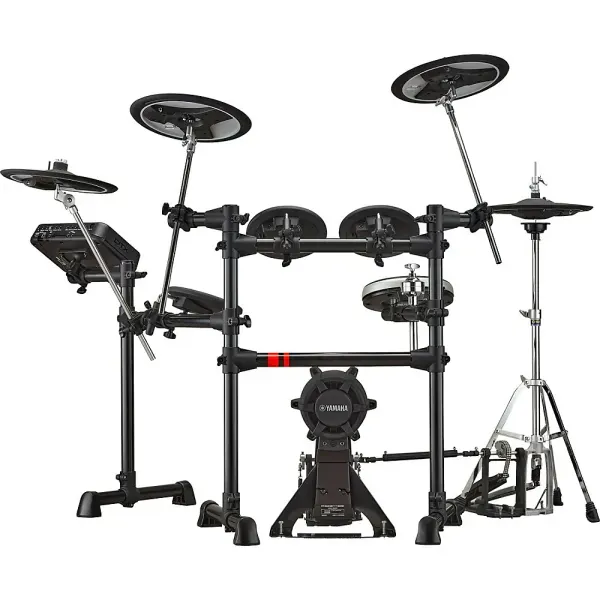

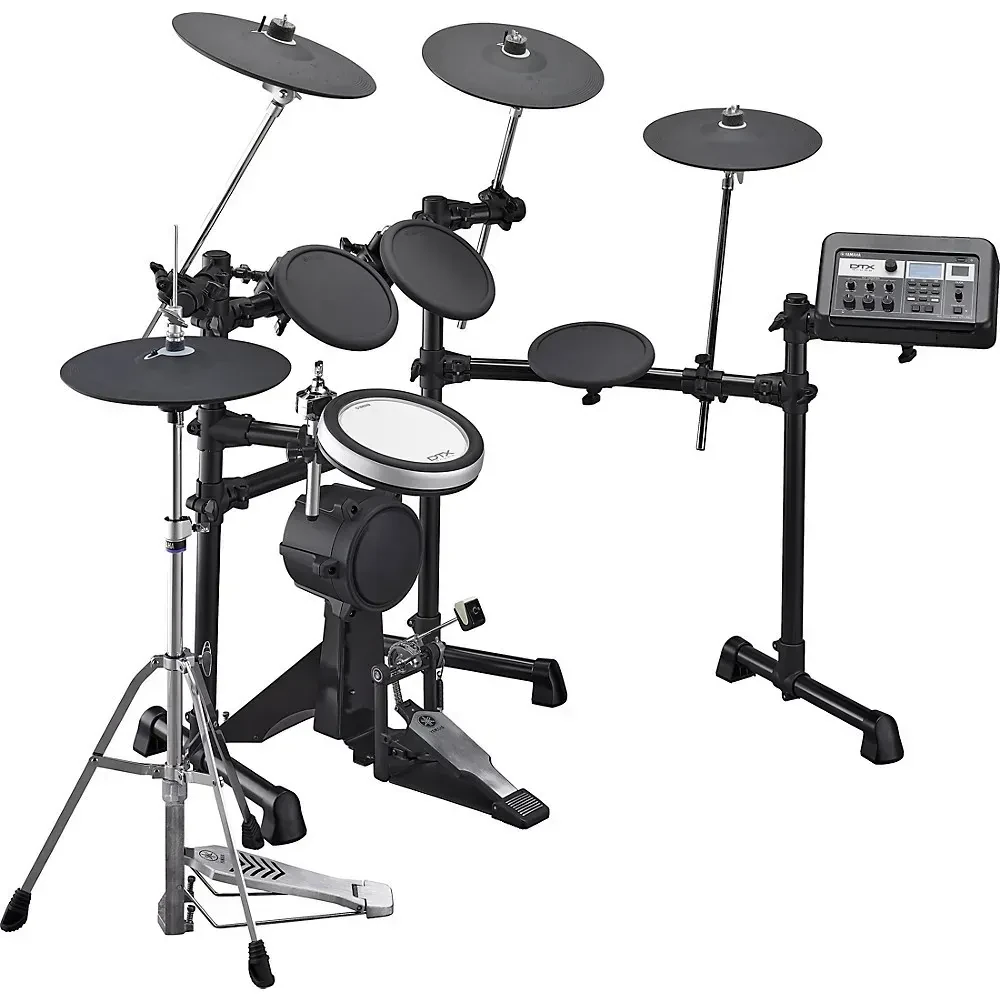

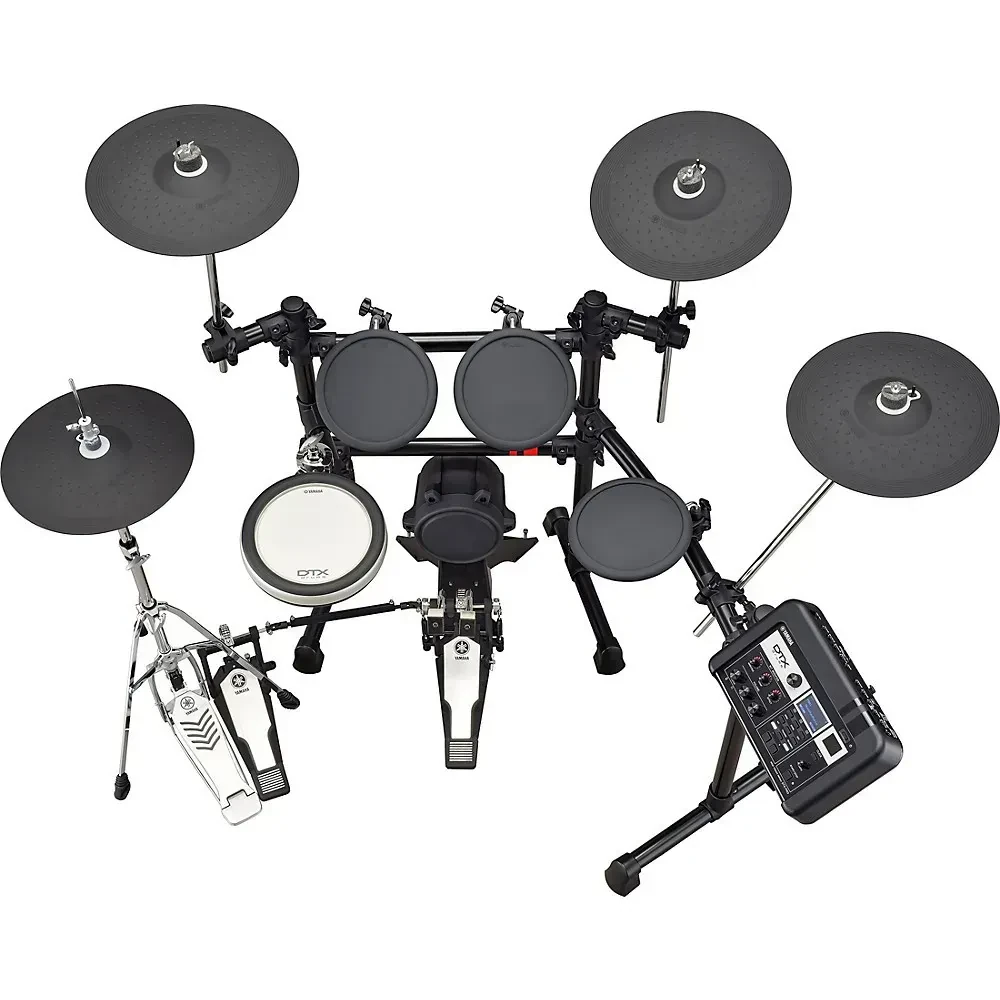

Yamaha DTX6K2-X Electronic Drum Set

Configuration
Tom pad(s): 3
Cymbal pad(s): 4
Snare pad: 1
Kickpad: Yes
Total pads: 9
Module
Drum kits: 40
User kits: 200
Sounds: 400
Training functions: Yes
Click: Yes
Pads
Pad material: Silicon (snare), Rubber (toms)
Zones: Triple (snare and cymbals), Single (other)
Tom pad size: 7.5"
Snare pad size: 8"
Hardware
Kick pedal: No
Throne: No
DTX-PRO Module
Effects
For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
Drum Kits
Preset: 40 Kits, User: 200 Kits
Voices: 712
Click
Click Sets: 30
Tempo: 30 to 300 BPM, Tap Tempo supported
Time Signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
Others: Individual click volume control, wav import, timer
Training
Types: 10
Songs Preset: 37 songs, User: 1 song
Audio Files
Import Limit: 1,000 files
Maximum Loadable Sample Time: 760 seconds (44.1kHz, 16-bit, mono), 380 seconds (44.1kHz, 16-bit, stereo)
Sample Format: WAV
Recorder
Recording Time: Internal Memory: Maximum of 90 seconds
USB Flash Drive: Maximum of 90 minutes per file
Format Record/playback: WAV (44.1kHz, 16-bit, stereo)
Other
Connectors: DC IN (+12V)
Headphones: Headphones (standard stereo phone jack × 1)
AUX IN: AUX IN (stereo mini jack × 1)
Output: OUTPUT L/MONO, R (standard phone jack, one for each)
USB: USB TO DEVICE, USB TO HOST
MIDI: MIDI OUT
Trigger Input: Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used)
Display: Full Dot LCD (128x64 dot)
Accessories: AC adapter (PA-150 or an equivalent recommended by Yamaha, sold separately), owner’s Manual, module holder, module holder wing bolts (x4) Cubase AI Download Information
