Focusrite ISA ADN8 8 Channel Dante Network A/D Card for ISA 428 MkII/828 MkII

Audio Performance
0 dBFS Reference Levels: 22dBu
Frequency Response: 20Hz–20kHz ±0.1dB
THD+N: -105dB (0.0006%) unweighted, 20Hz–20kHz; -1dBFS input
Noise in Presence of Signal: -121dBu 'A'-Weighted (typical)
Dynamic Range: 121dB 'A'-weighted (typical), 20Hz–20kHz
Digital Performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources: Internal or Word Clock
Crosstalk
Input to Input: < -100dB; 20Hz -20kHz (driven channel at -20dBFS)

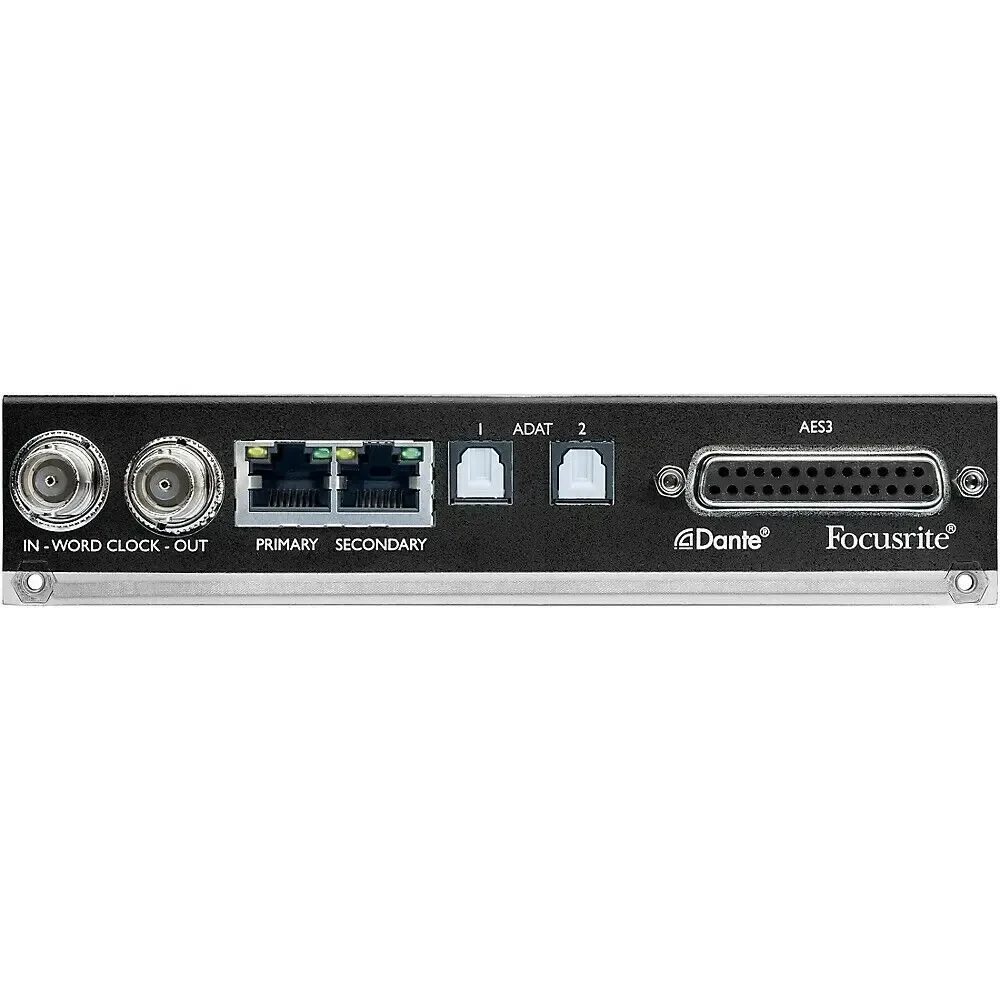

Front Panel Output Connectivity Dante
Channel Count: 8 x Dante channels
Output: 2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above).
AES3
Channel Count: 8 x AES 3 channels
Output: 1 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
ADAT
Channel Count: 8 x ADAT channels
Output: 2 x TOSLINK connectors
Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 -8 ,
Port 2 = Channels 1 -8
Channel Assignments @ 88.2 kHz, 96 kHz: SMUXI: Port 1 = Channels 1 -4, Port 2 =
Channels 5 -8
Channel Assignments @ 176.4 kHz, 192 kHz: SMUXII: Port 1 = Channels 1 -2 , Port 2 =
Channels 3 -4
Word Clock
Word Clock Input: 1 x BNC 75Ω port (Switchable Termination)Word Clock Output: 1 x BNC 75 Ohm port
