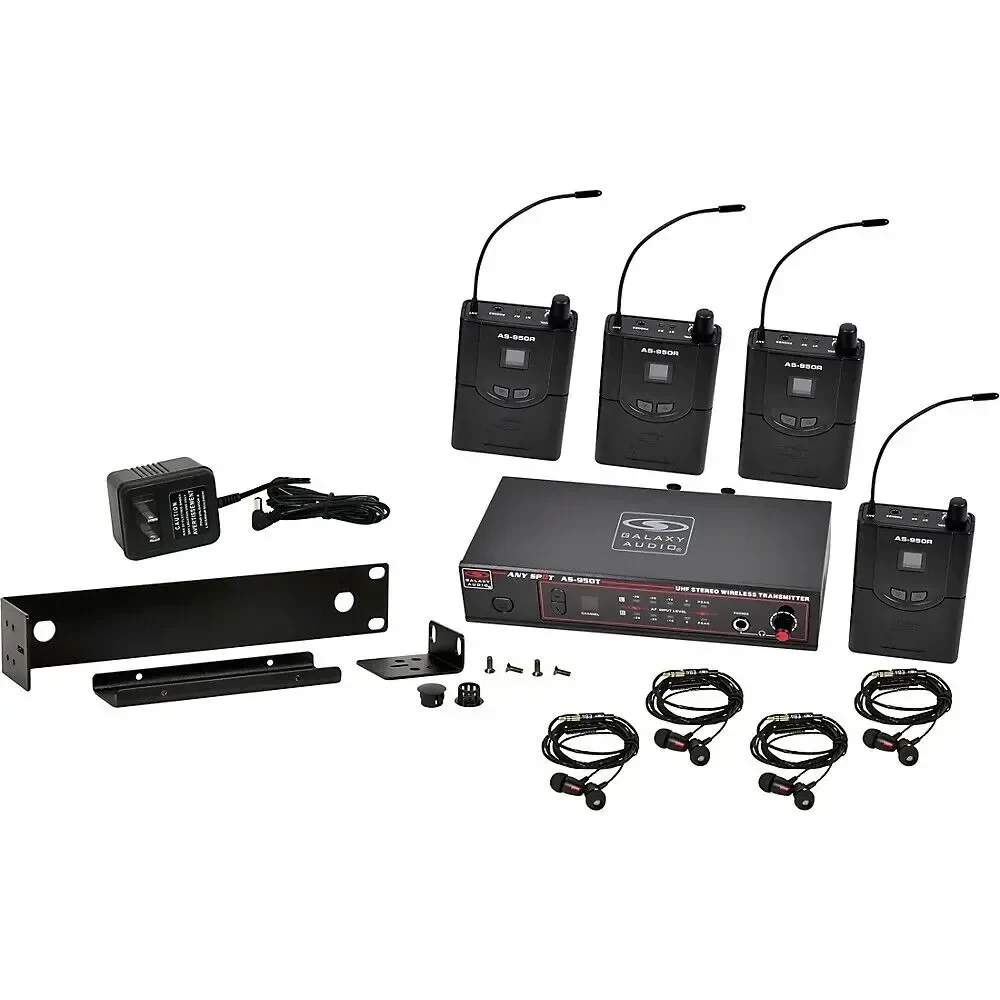

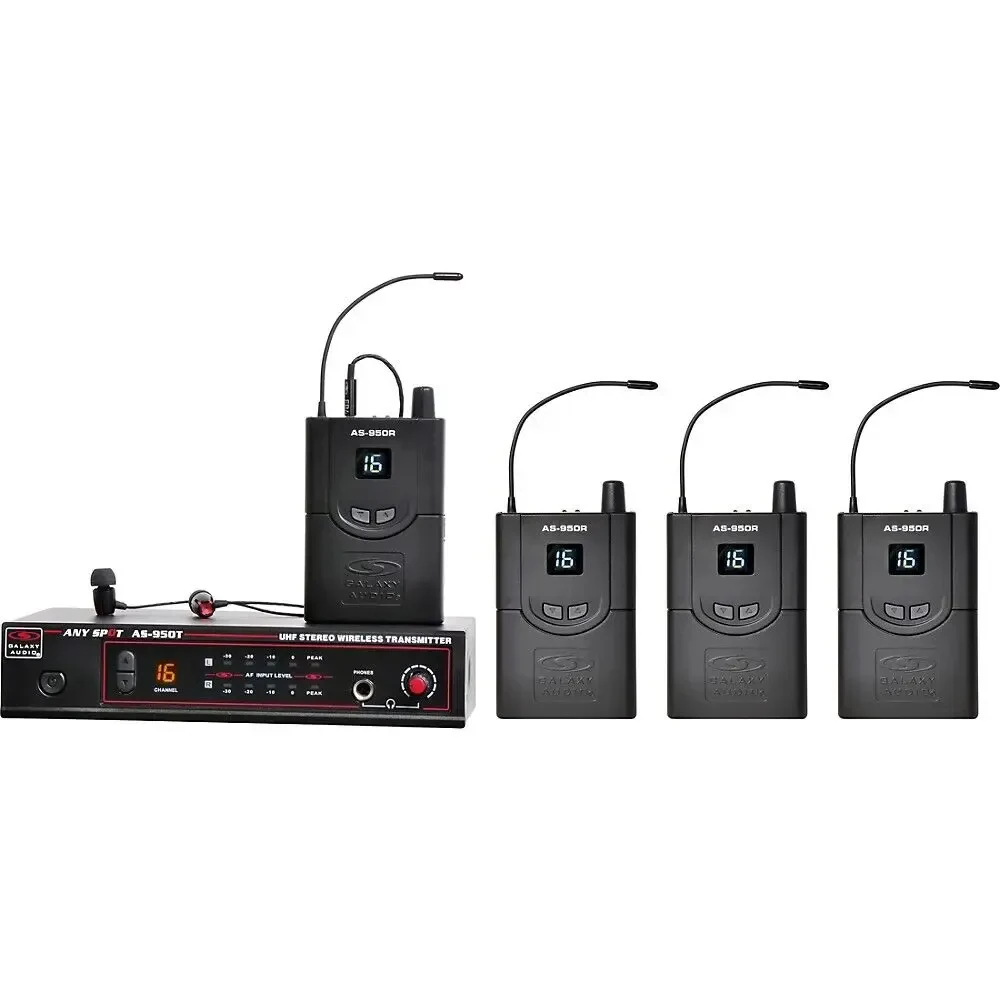

Микрофонная система персонального мониторинга Galaxy Audio AS-950-4 Wireless In-Ear Monitor Band Pack 518-554 MHz Black

AS-950 SYSTEM:
Band: UHF
Frequencies Range: CODE N 518 MHz - 542 MHz,
CODE P2 470 MHz - 489 MHz
Frequencies: 16
Transmitter Output Level: 10 mW
Operating Range: Under Typical Conditions 200' (61m)
Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Audio Frequency Response: +/-3dB 50Hz - 15kHz
Total Harmonic Distortion: <1% @ 1kHz
Signal to Noise: >80dBA
Maximum Deviation Range: +/-40kHz
Dynamic Range: >90dB A-weighted
Operating Temperature: Range 14º F to 122º F (-10º C to 50º C)
Note: battery characteristics may limit this range

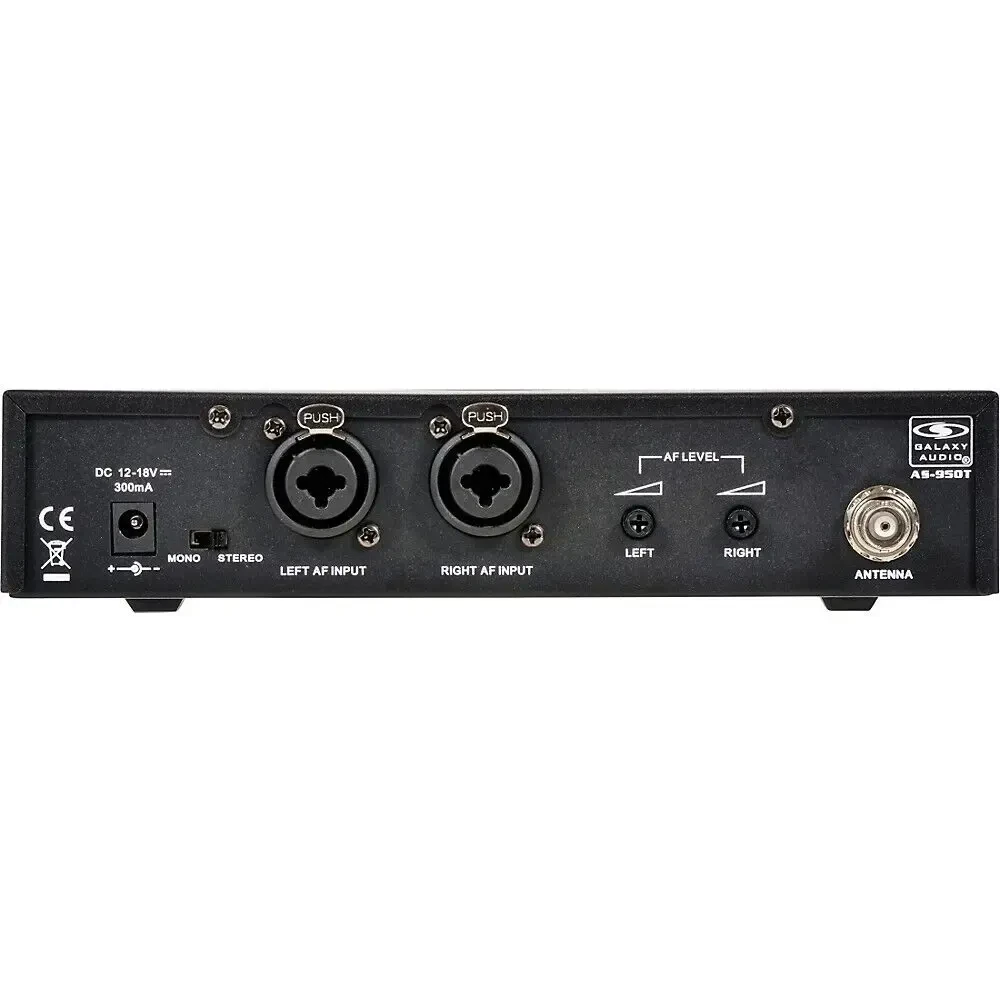

AS-950T TRANSMITTER:
Main Frame Size: EIA STANDARD 1/2 U
Modulation Mode: FM Stereo Modulation
RF Output: 10 mW
Max Audio Input Level: +6dBV
Gain Adjustment Range: 40dB
Controls: Headphone Volume, Channel Up/Down, and Power Button
Indicators: LCD Display, Input Level
Audio Input: Line Level X 2, XLR / 1/4" Combo Jack
XLR Input: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
Transmitter Antenna: Detachable 1/2 Wave BNC Antenna
Dimensions: 1.73" x 8.34" x 3.77"
(44 x 212 x 96 mm) (HxWxD)
Weight: 19.75 oz (560 g)
Power Requirements: 12-18 V DC at 300 mA, supplied by external power supply

AS-950R RECEIVER:
Audio Output Level: 50 mW x 2 Earphone Out with Volume Control
Sensitivity: -94dBm for 30dB
Stereo Separation: 40dB (at 1kHz)
Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector
Controls: Volume, Channel Up/Down
Indicators: LCD Display, Stereo LED, RF LED
Dimensions: 3.54" x 2.51" x 0.9" (90 x 64 x 23 mm)(HxWxD)
Weight: 3.35 oz (95 g) without batteries
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: About 12 hours (alkaline)
