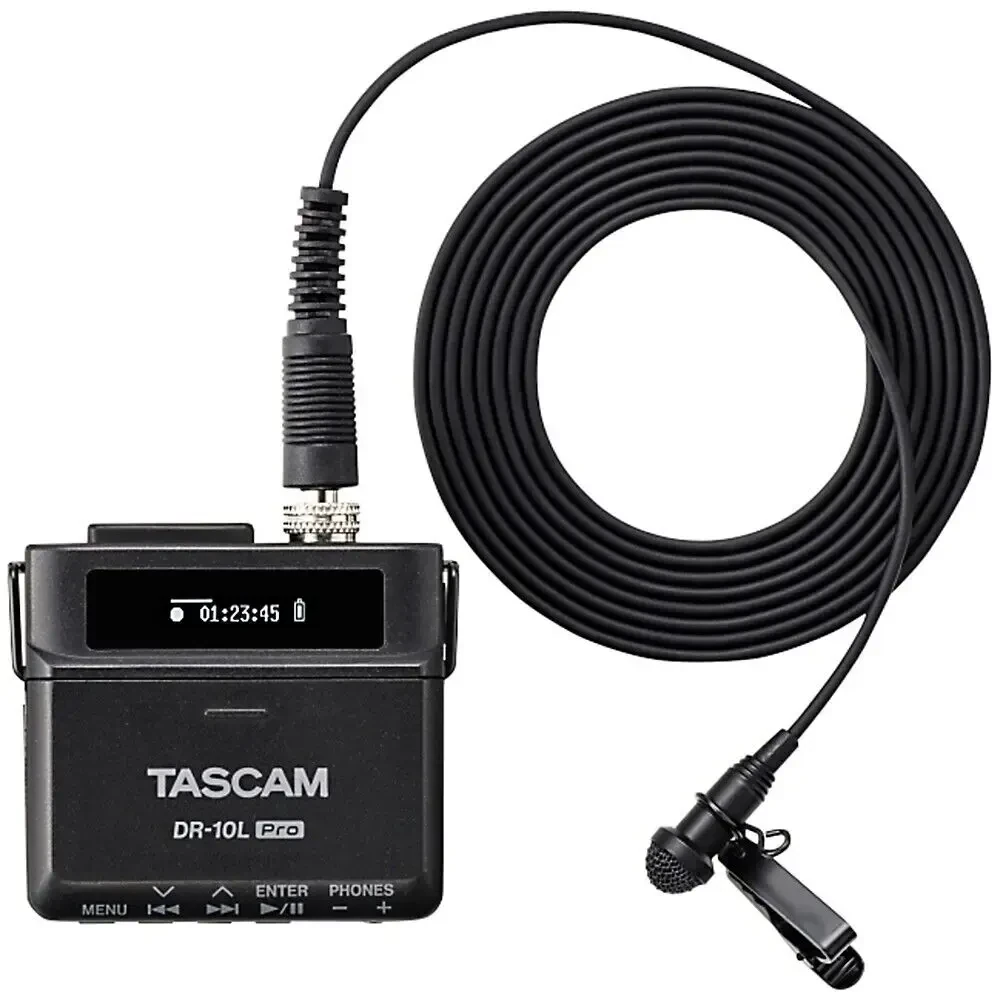

Рекордер TASCAM DR-10L Pro Digital Audio Recorder With Lavalier Microphone

Recorder specifications
Recording media:
microSD cards (64MB - 2GB)
microSDHC cards (4GB - 32GB)
microSDXC cards (48GB - 512GB)
Recording / playback formats
WAV (BWF): 44.1k/48kHz, 16/24-bit, 32-bit float
MP3: 44.1k/48kHz, 128k/192kbps
128k/192kbps (Recording)
32 - 320kbps (Playback)
Analog audio input ratings
Input
Connector: 1/8"(3.5mm) TRS jack with screw lock
Maximum input level: -11dBV
Input gain: 7.5dB - 38dB
Input impedance: 2k Ω以上
Lavalier microphone: (TM-10L)
Sensitivity: -42dBV/Pa
Max. SPL: 115dBSPL
Cable length: 1.6m
Analog audio output ratings

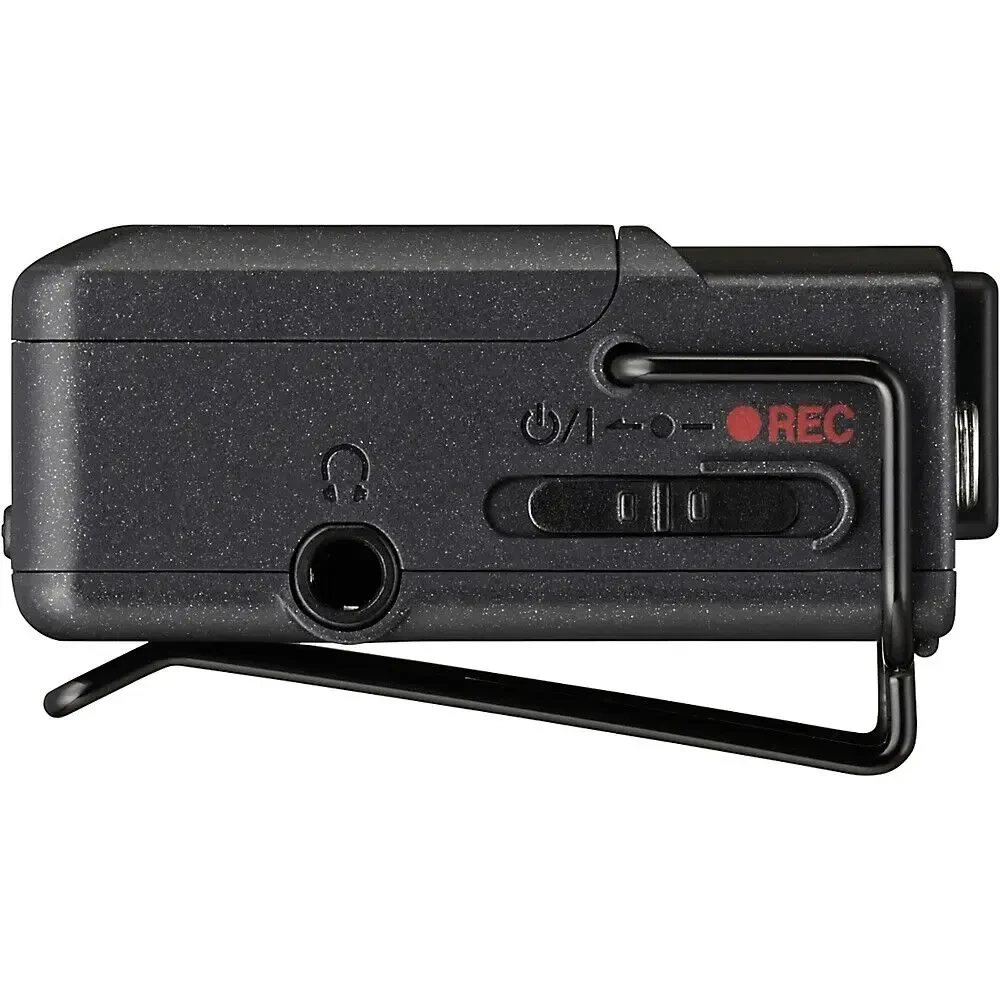

Headphone output
Connector: 1/8"(3.5mm) stereo mini jack
(Dual Mono Output)
Maximum output: 10mW + 10mW
(THD+N 0.1% or less, into 32Ω)
Control input/output ratings

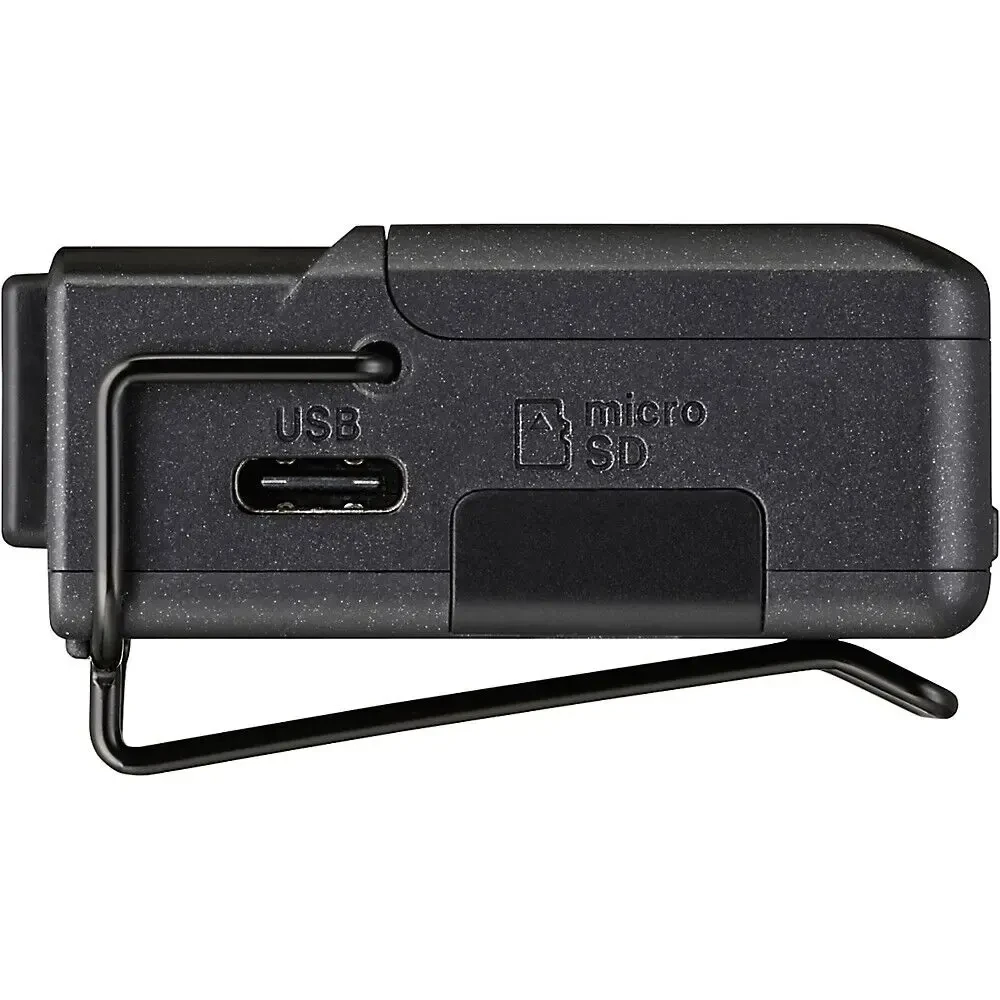

USB port
Connectors: USB Type-C
Format: USB2.0 HIGH SPEED
mass storage class
Bluetooth device connector
For Bluetooth adapter (AK-BT1) only
Audio performance (Input → SD data)
Frequency response
20Hz – 20kHz: +0dB/-1dB
Total harmonic distortion ratio (THD+N)
0.01% (1kHz, input: -21dBV)
Dynamic Range
105dB or higher
Note: 0dBV=1Vrms, JEITA CP-2150
Operating system and other requirements
DR-10L Pro CONNECT
iOS / iPadOS device
iOS 16 / iPadOS 16, iOS 15 / iPadOS 15, iOS 14 / iPadOS 14
Android devices
Android 13, Android 12, Android 11
Others
Plug-in power (Mic bias)
2.3V
Power

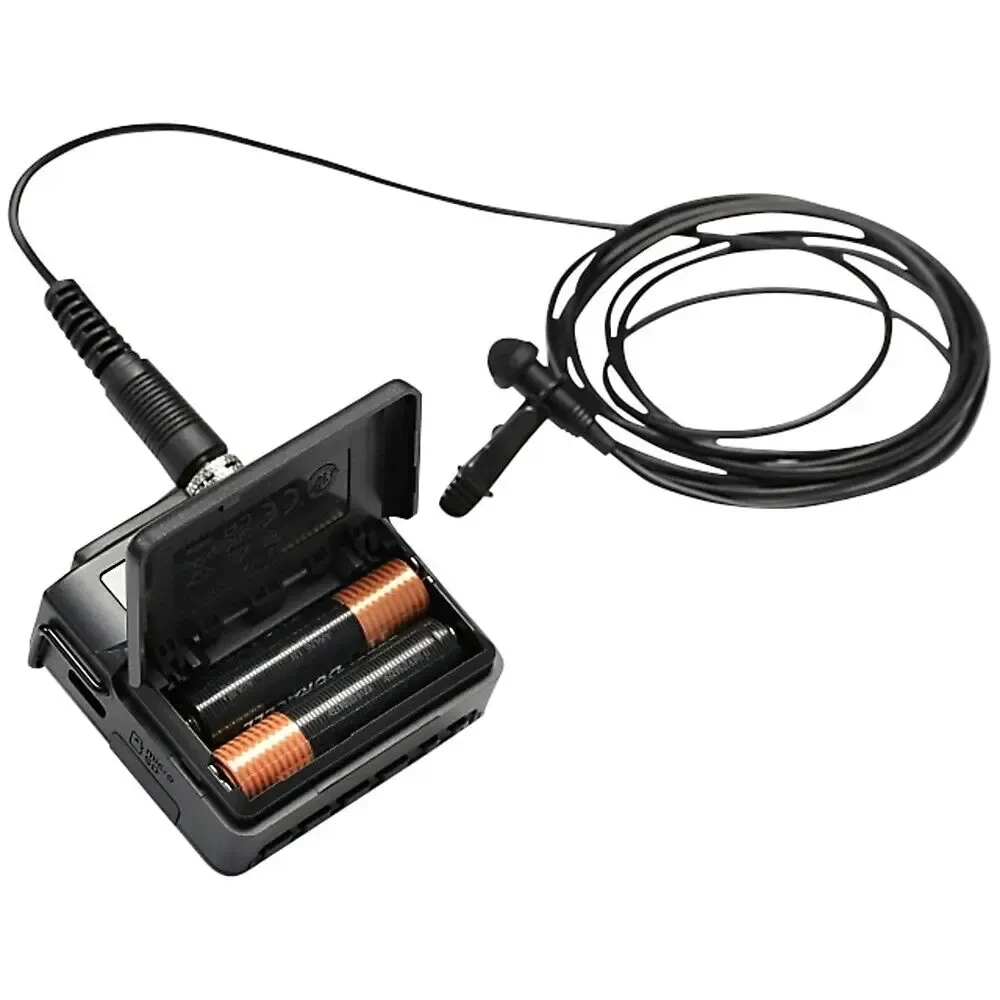

2 AAA battery (Alkaline / Ni-MH / Lithium)
USB bus power
Power consumption (battery)
0.3W (MAX)
Current consumption (USB bus power)
0.1A (MAX)
Battery (RTC)
Lithium × 1 (built in with soldering)
Dimensions (W × H × D, including protrusions)
53×50.7×21.4 mm
2.09×2.00×0.85 inch
Weight (including battery / without battery)
65g / 43g
0.15 lb / 0.10 lb
Operating temperature
0 - 40℃
