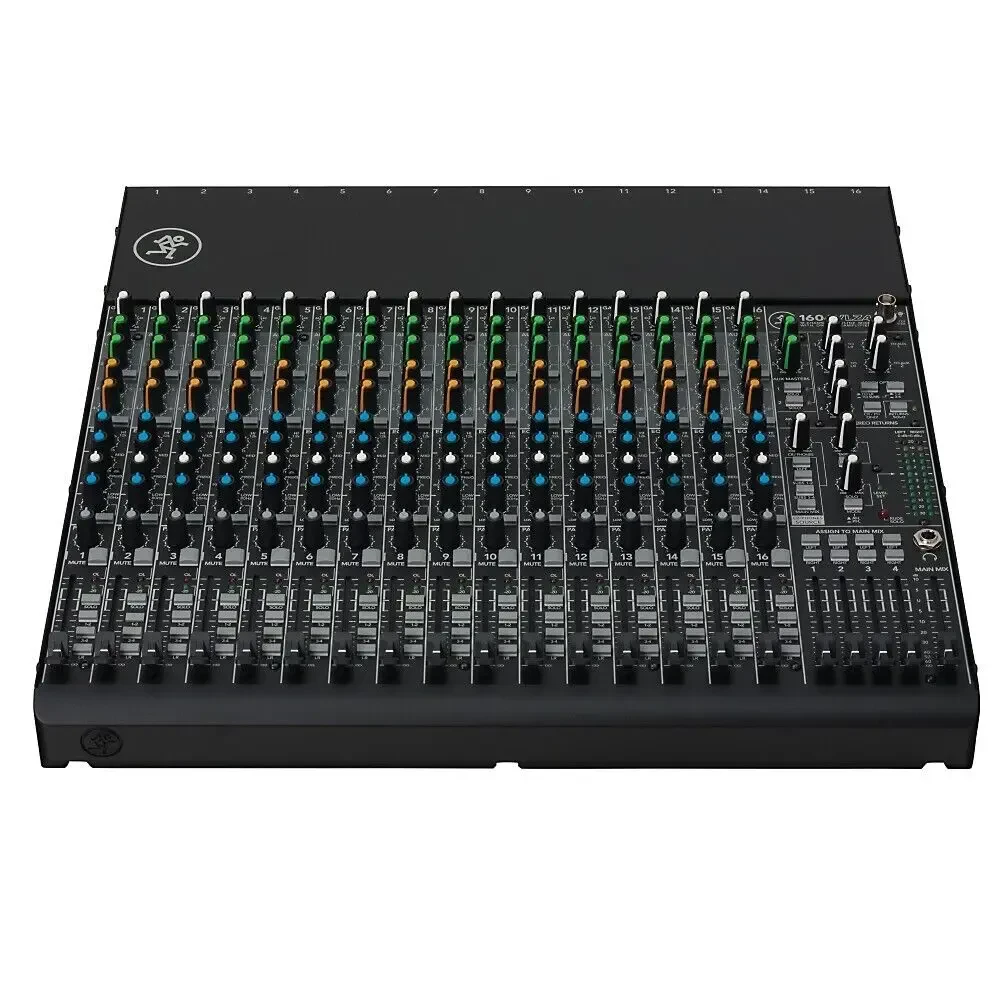

Аналоговый микшер Mackie VLZ4 Series 1604VLZ4 16-Channel/4-Bus Compact Mixer

Main Mix Noise
(20 Hz-20 kHz bandwidth, 1/4" Main out, channel gains @ unity gain, EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
Main mix fader down, channel level faders down: -88.5 dBu
Main mix fader @ unity, channel level faders @ unity: -82.5 dBu,

THD
(1 kHz @ 35 dB gain, 20 Hz-20 kHz bandwidth)
Mic in to insert send: <0.0007%
Mic in to Main Out: <0.005%

Attenuation/Crosstalk
(1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
Channel Mute switch engaged: -84 dBu
Channel Gain knob down: -84 dBu

Frequency Response
Mic input to main output (gain @ unity)
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (EIN)
(Mic input to insert send out, max gain)
150 termination: -128.5 dBu, 20 Hz-20 kHz

Common Mode Rejection Ratio (CMRR)
1 kHz: better than -70 dB

Maximum Levels
Mic in: +22 dBu
All other inputs: +22 dBu
Main mix XLR out: +28 dBu
All other outputs: +22 dBu

Impedances (Ohms)
Mic in: 2.5K
Channel insert return: 2.5K
All other inputs: 10K or greater
Tape out: 1.1K
Phones out: 120
All other outputs: 120

EQ
High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB sweep 100Hz - 8kHz
Low Shelving: ±15 dB @ 80 Hz
Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz


Physical Properties
Height: 17.0"
Depth: 5.1"
Width: 17.3"
Weight: 20lb
