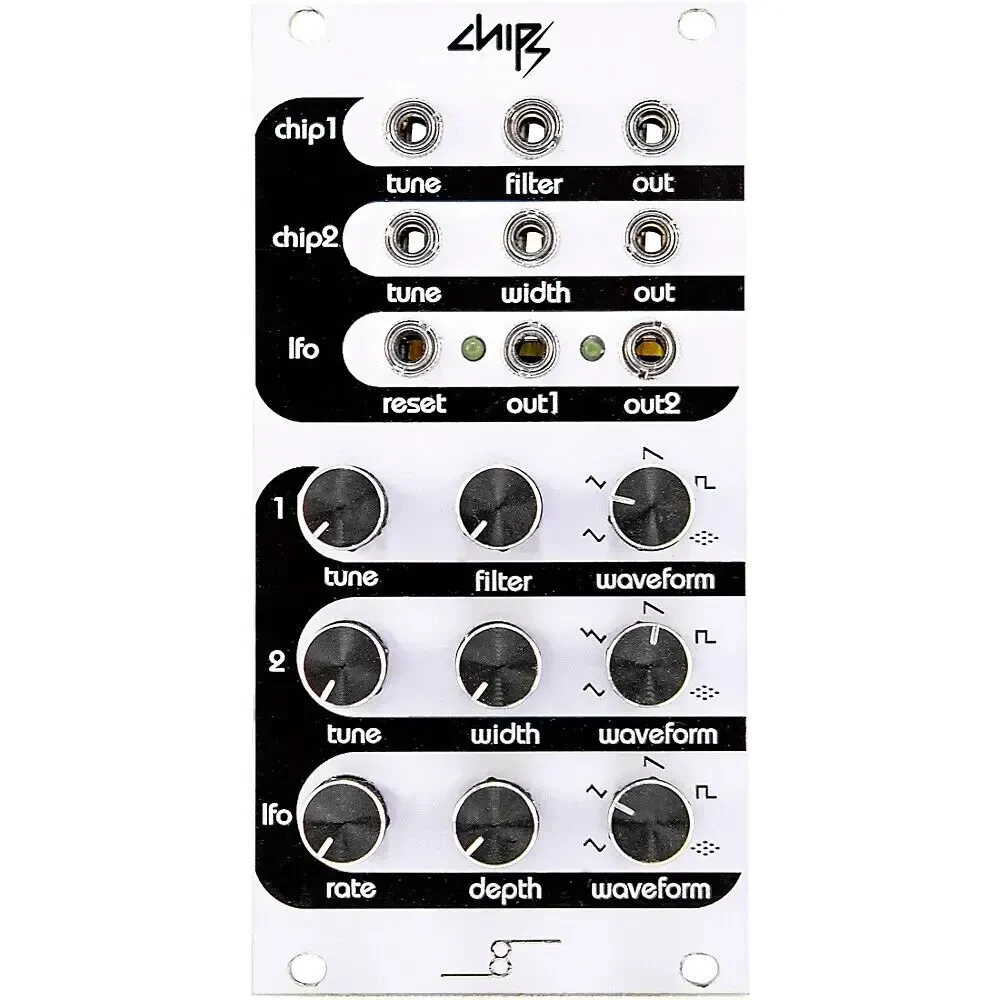

Модульный студийный синтезатор Cre8audio Chipz Dual OSC & LFO Module

Chipz is a chiptune-inspired eurorack synth module that will take you back to the halcyon sounds of the ‘80s. Cre8audio started out the idea that Chipz would be a 3 oscillator synth that takes you to an alternate universe in which your old console isn't for playing video games but is a module in your eurorack-compatible system. Eventually, the idea evolved into something a bit higher resolution with a bunch more horsepower.

Cre8audio describe Chipz as ideal for those who speak “bleep blop”. They say that Chipz is “full of heaping piles of beeps, blops, and probably some other stuff too. It’s got a couple of voices and some wacky LFO junk, perfect for getting your body wobbling”. In technical terms, Chipz is a dual VCO and dual LFO module with each offering sine, triangle, saw, square and noise waveforms.

Specifications:

Cre8audio Chipz Specifications
Width: 12hp
Depth: 30mm
Waveforms
chip1 - sine, triangle, saw, square, noise
chip2 - sine, triangle, saw, square, noise
LFO - sine, triangle, saw, square, noise
35mA power draw when running +12V rail
30mA power draw when running +5V rail
19mA power draw when running -12V
0-5V voltage range LFO output 1
0-5.8V voltage range LFO output 2
Frequency range of oscillators
chip1 - out 91 ~ 1.47K
chip2 - out 91 ~ 1.47K
lfo - out1 75.75m ~ 2
lfo - out2 370m ~ 10
Input voltage range of oscillators = 0-10V
Minimum voltage required to set LFO trigger input high = 0.7 ~ 5V
