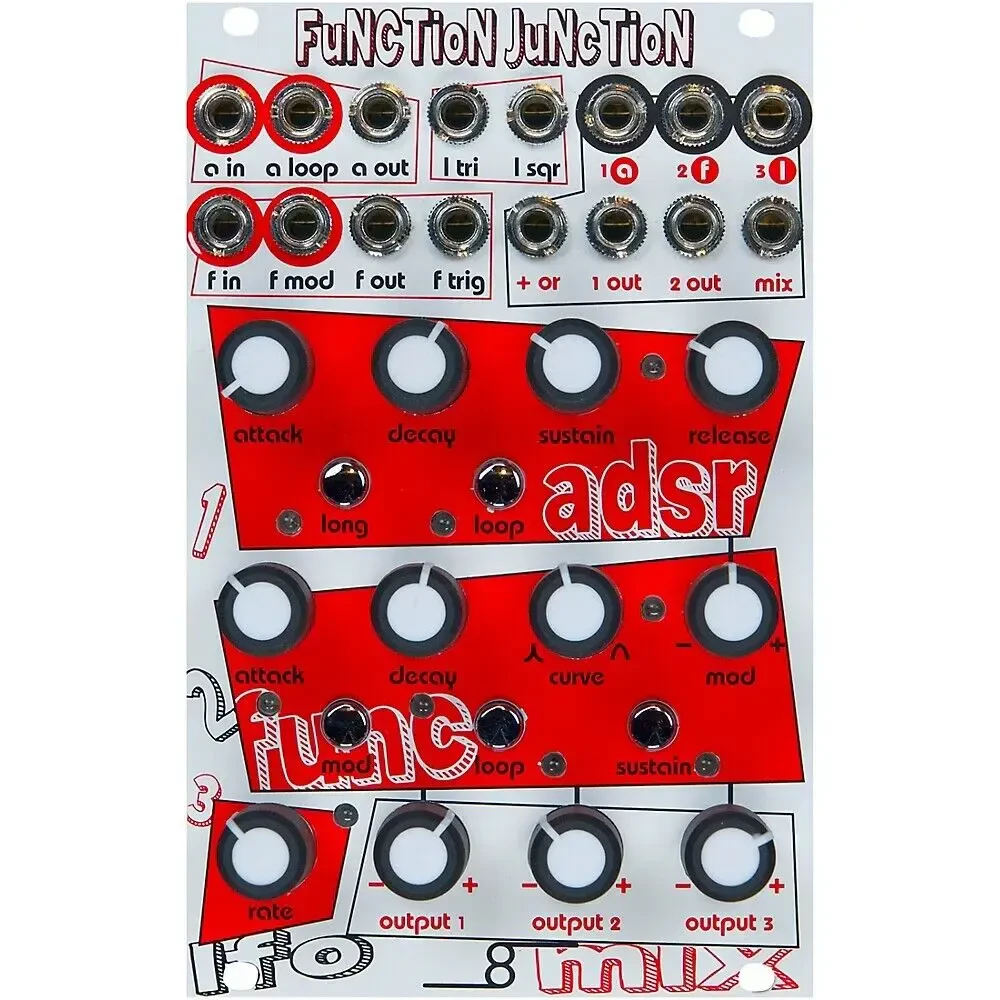

Модульный студийный синтезатор Cre8audio Function Junction Eurorack Module

Dedicated ADSR, Function Generator, LFO and Mixer sections
Fully analog Pittsburgh Modular Synthesizers developed 4-stage ADSR circuit with independent Attack, Decay, Sustain and Release controls
Loop capability for envelope cycling
SUSTAIN and RELEASE knobs are used to adjust the time it takes to loop
Loop mode can be toggled on and off with button press or via gate
Function Generator can be used as an envelope generator, a voltage controlled LFO, a slew generator, a gate signal delay, envelope follower, a clock source, voltage-controlled clock divider, complex modulation source and more
Modulation input can be to attack, decay, or both.
Dual LFO—triangle and square LFO outs
3-channel attenuverting mixer with + OR circuit
Mixer can be split into three independent attenuverters, one two-channel mixer and one attenuverter—or a three-channel mixer
When not being used as a mixer, each channel is normalled to one of the other functions of the module, enabling an additional output for each section as well as a dedicated attenuvertor for each
+ OR circuit outputs the current highest voltage value of any of the voltages output by the mixer

Specifications:

General
Dedicated sections: ADSR, Function Generator, LFO and Mixer
ADSR circuit: 4-stage, with independent Attack, Decay and Release controls
Modulation input: Attack, Decay or both
Dual LFO: Triangle and square LFO outs
Mixer channels: 3
Attenuverters: 3
16hp Eurorack Format Module
Width: 16hp
Depth: 30 mm
Power Draw
130mA when running +12V rail
70mA when running –12V
