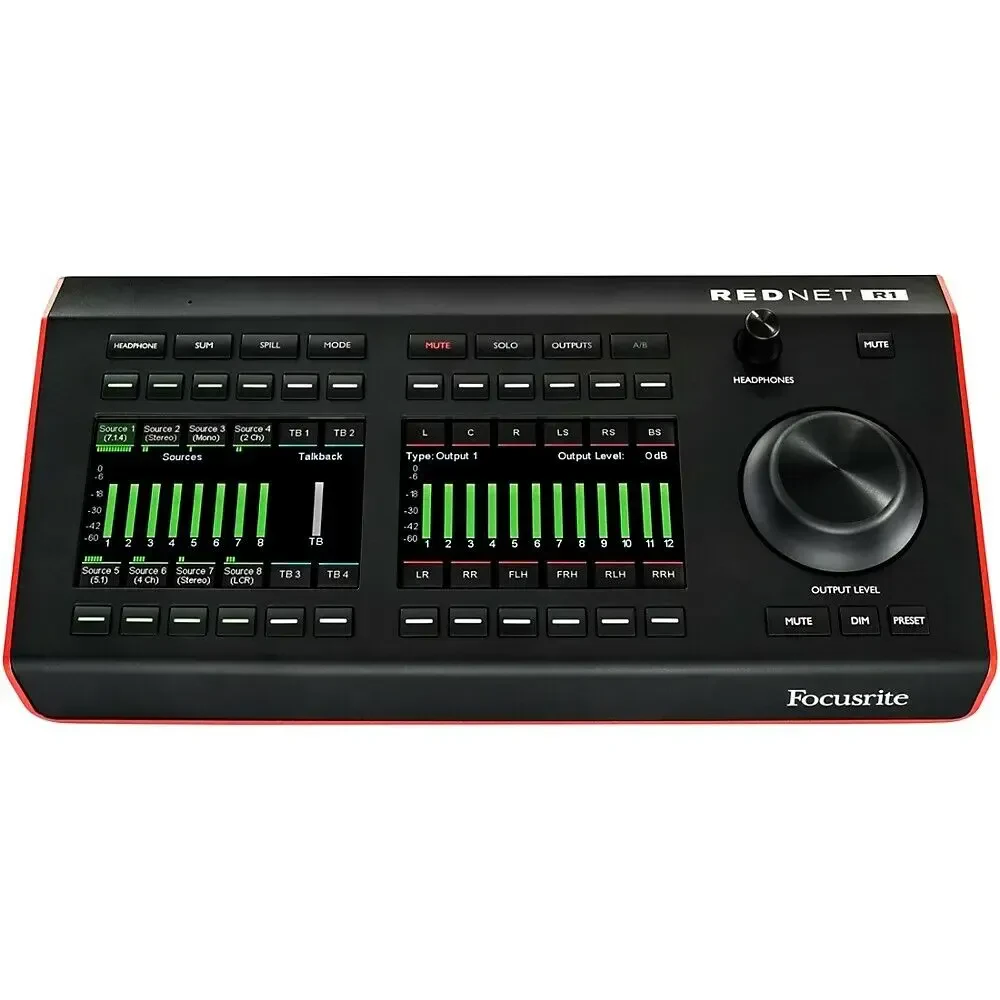

Focusrite Desktop Remote Controller for Red Interfaces with PoE

System Requirements:
Mac Osx:
10.13 macOS High Sierra
10.14 macOS Mojave
10.15 macOS Catalina
10.16 macOS Big Sur
Windows:
Windows 10
Internal Talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω:
Gain Range: 0dB to 55dB
Type: Electronically Balanced, Zin = 3kΩ
Max. Input Level: +10dBu ± 0.5db

External Talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150 Ohm:
Gain Range: 0dB to 55dB
Type; Electronically Balanced, Zin = 3kOhm
Max. Input Level: +10dBu ± 0.5dB
Frequency Response: 20Hz -20kHz ± 2dB
THD + N: < -98dB (0.0012%) @ -1dBFS
EIN: < -128dBu 'A'-Weighted (typical)
Signal-to-Noise Ratio: -111dB 'A'-Weighted (typical), min gain
Common-Mode Rejection Ratio: 50/60Hz CMRR: <-77db

Headphone Output
All measurements taken at +19dBm reference level, maximum gain, RL = 600Ohm:
0 dBFS Reference Levels: +11dBm
Frequency Response: 20Hz to 20kHz ±0.5dB
THD + N: -100dB (0.001%) @ -1dBFS, Rs = 150R
Dynamic Range: 108dB 'A'-weighted (typical), 20Hz -20kHz
Noise in Presence of Signal (NiPoS): > -97 dBu 'A-Weighted'
Output Impedance: 5 Ohm
Headphone Impedance: 32 Ohm -600 Ohm
Crosstalk
Microphone/Line Crosstalk:
Mic Input to Headphone Output: < -122dB; 20Hz–20kHz (all other channels at 0dBFS)
Headphone Output to Mic Input: < -84dB; 20Hz–20kHz (all other channels at 0dBFS)
Headphone Crosstalk
Left to Right: < -85dB; 20Hz–20kHz (all other channels at 0dBFS)
Right to Left: < -85dB; 20Hz–20kHz (all other channels at 0dBFS)
Digital Performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
Clock Sources: Internal or from Dante Network Master

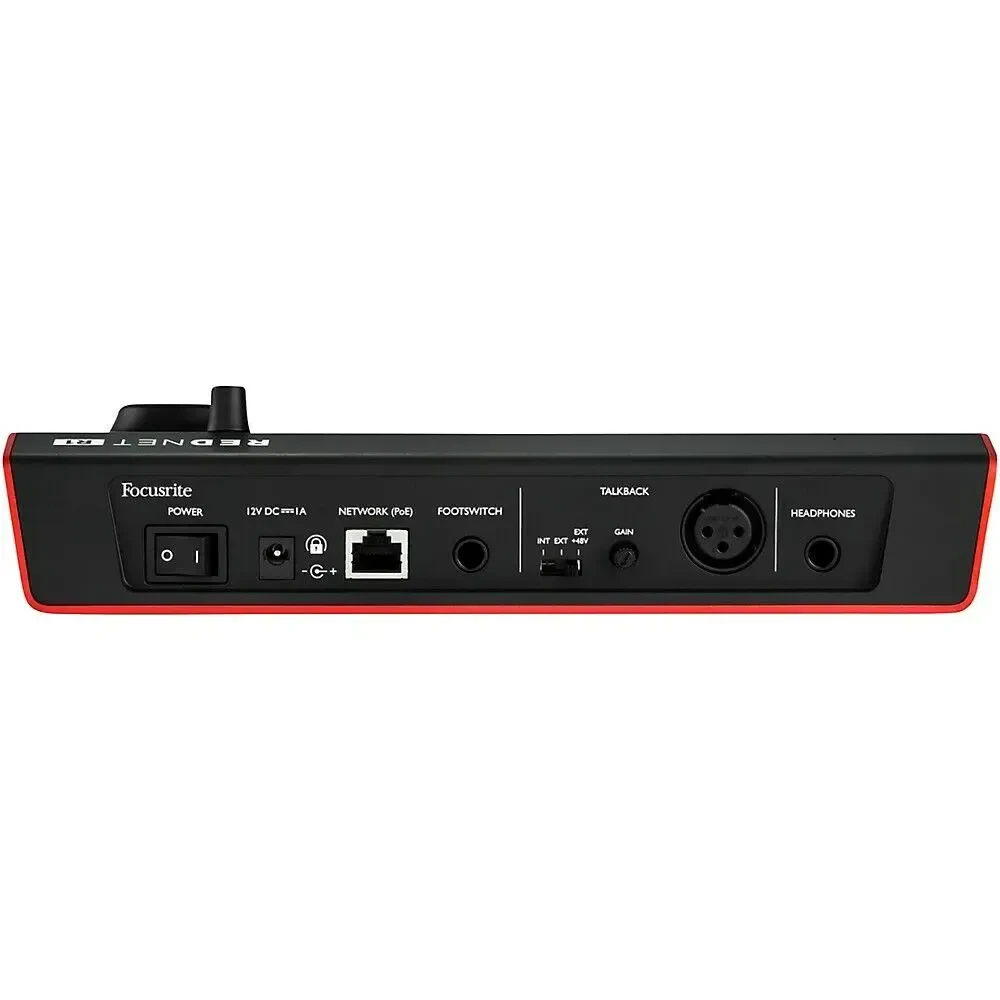

Rear Panel Connectivity, Pots & Switches
Inputs:
External Talkback Mic Input: 1 x XLR (F)
Foot Switch: 1 x 1/4" stereo jack
Outputs
Headphone Outputs: 1 x 1/4" stereo jack
Pots & Switches
Power Switch: 1 x Switch•Talkback Gain Pot: 1 x Pot
Talkback Switch: 1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback)
PSU & Network Connections
PSU (PoE and DC): 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector
Network: 1 x Standard RJ45 connector

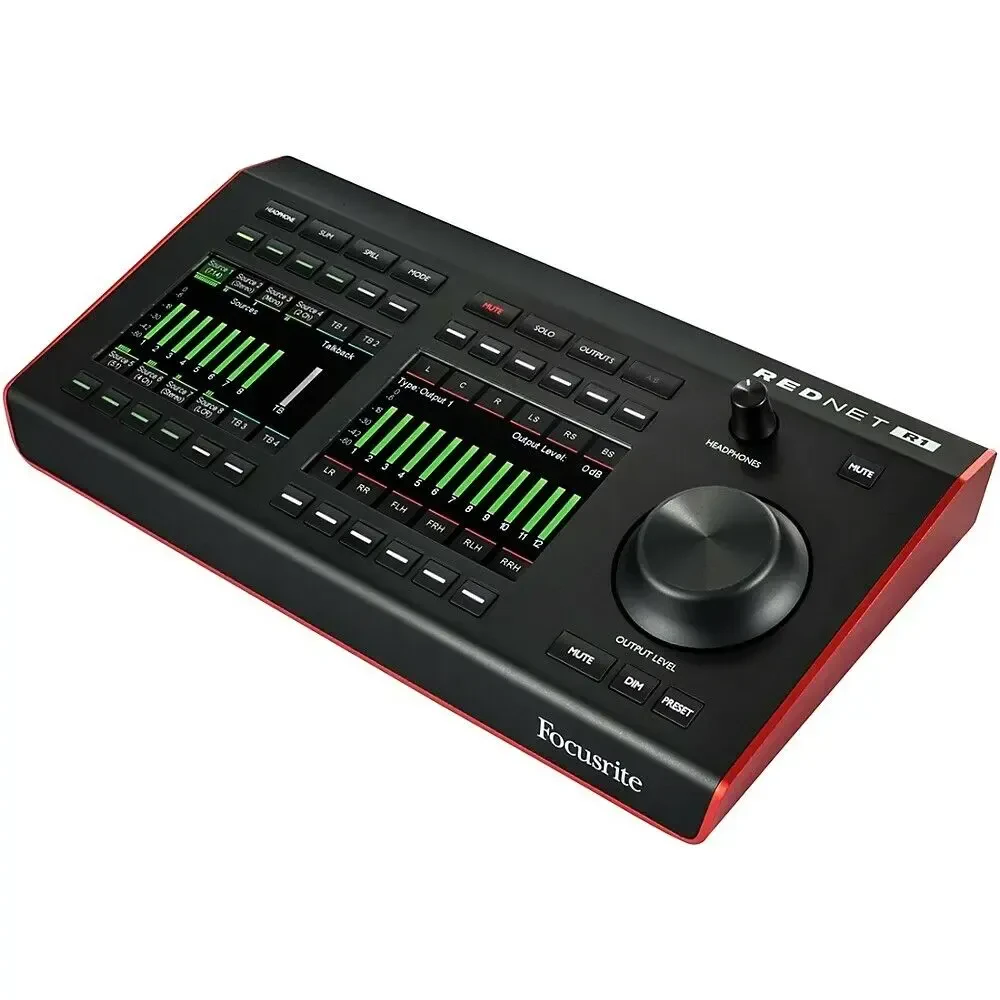

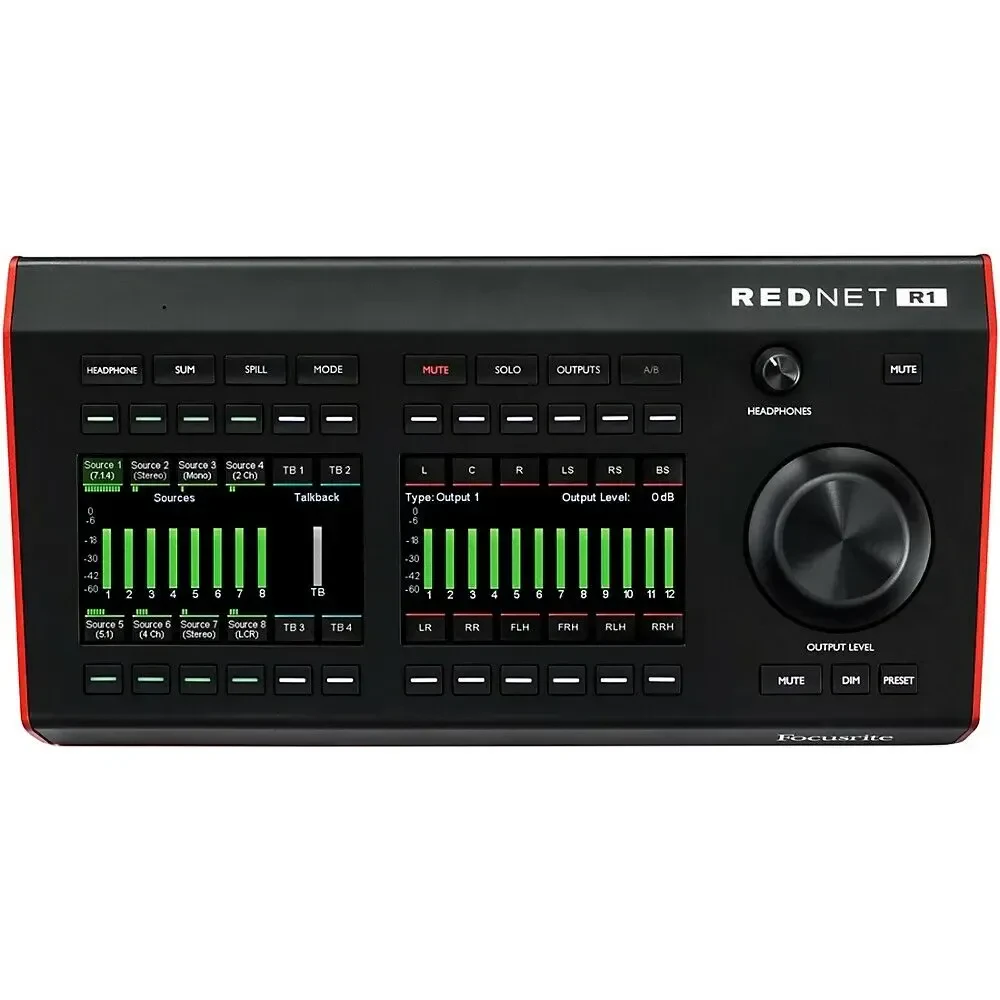

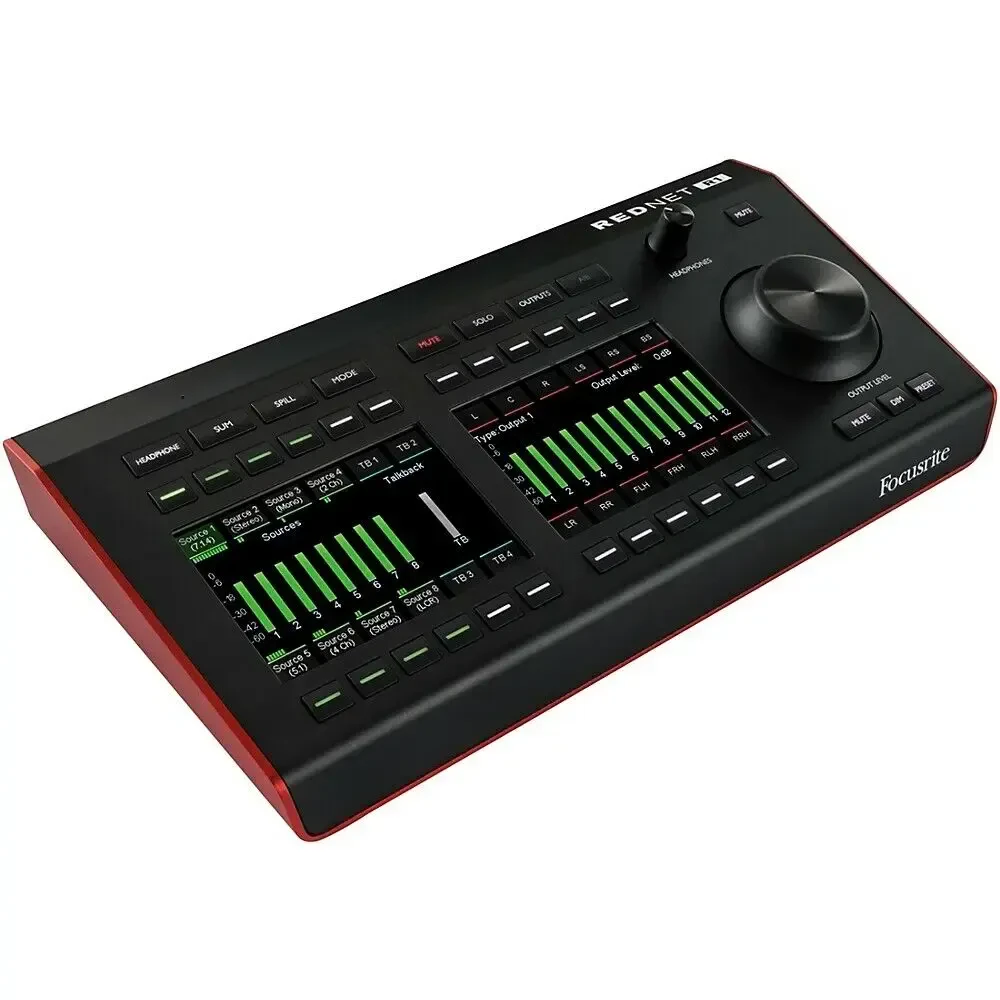

Top Panel Indicators
LCD Screens: 2 x Screens (Control, Status, Metering & Menus)
Control Functions: 2 x Continuous Pot (Level & Dim)
1 x Pot (Headphone Output).
24 x Multi-Function Switches (Sources, Talkback, Monitor Outputs & Menu Items)
12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock)
Power
Power over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
DC Power Supply: 1 x 12V 1.2A DC Power Supply
Power Consumption: PoE: 10.3W -DC: 9W (When using supplied DC PSU)
Heat Performance
Operating Temperature: Operates at up to an ambient temperature of 40-degrees Celsius
