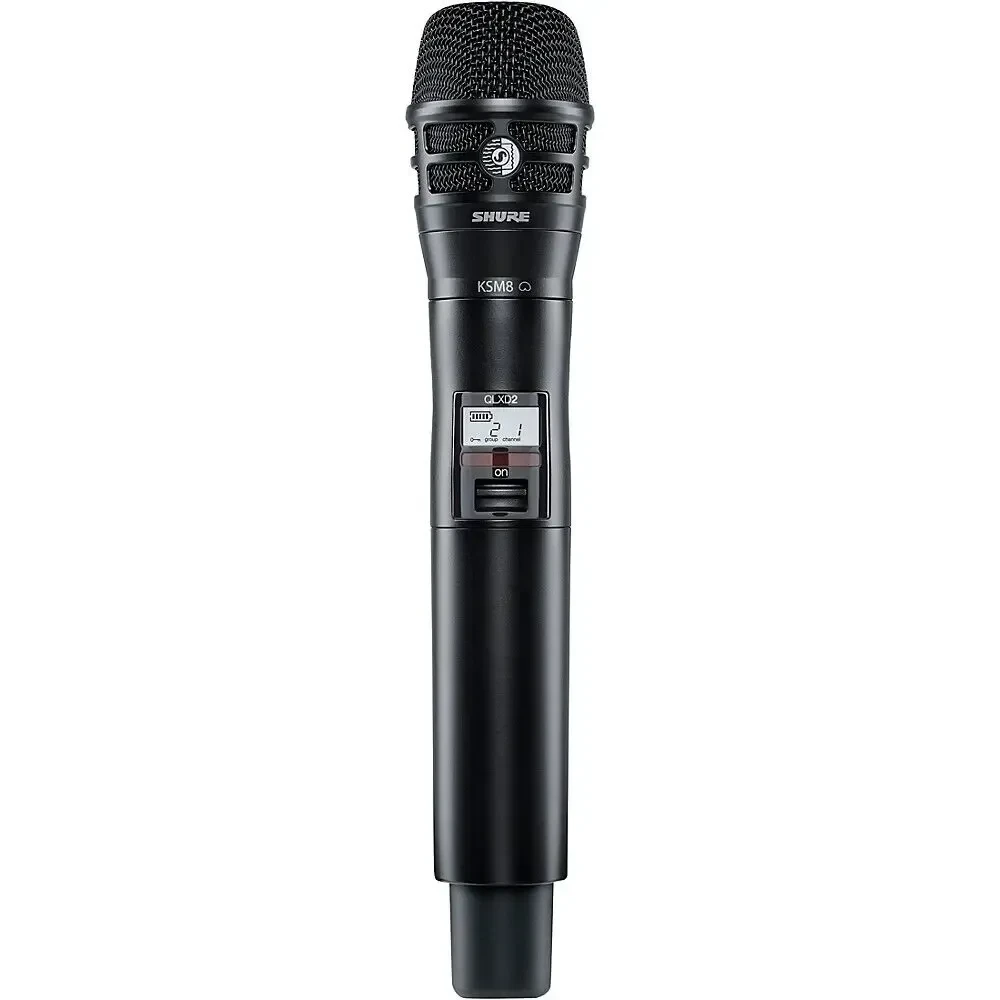

Передатчик для радиосистемы Shure QLXD2/K8B Handheld Transmitter with KSM8 Capsule Band G50

RF Carrier Frequency Range
H50: 534 to 598MHz
Working Range
328' (100 m)RF
Tuning Step Size: 25 kHz, varies by region
Image Rejection
Better than 70 dB, typical
RF Sensitivity
-97 dBm at 10-5 BER
Latency
Less than 2.9 ms
Frequency Response
20Hz to 20kHz
Audio Dynamic Range
System Gain at +10: Better than 120dB, A-weighted, typical
Total Harmonic Distortion (THD) -12 dBFS input, System Gain at +10: Less than 0.1%
Polarity
System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
Mic Offset Range
0 to 21 dB (in 3 dB steps)
Battery Type
SB900 rechargeable Li-ion or AA batteries 1.5 V
Battery Runtime
At 10 mW
Shure SB900: up to 10 hours
Alkaline: up to 9 hours
Audio Input
Configuration: unbalanced
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
Capsule
KSM8 Dualdyne cartridge
RF Output
Antenna Type: Integrated single band helical
Occupied Bandwidth: Less than 200 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW or 10 mW (varies by region)
Housing:
Machined aluminum
Operating Temperature Range
-18 to 50 deg. C / -0 to 122 deg. F
Storage Temperature Range
-29 to 74 deg. C / -20 to 165 deg. F
Dimensions
(L x Dia.)256 x 51mm / 10.08 x 2.01""
Weight
347g / 12.24oz without batteries
