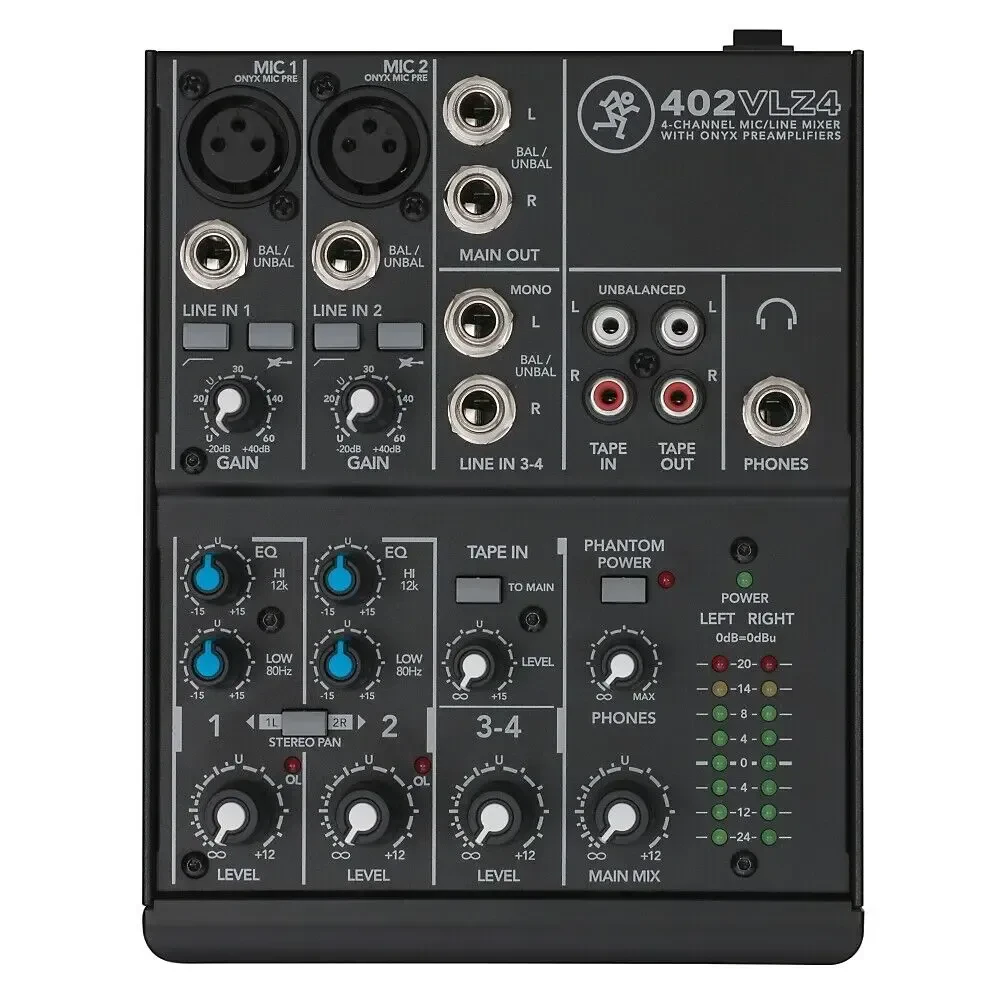

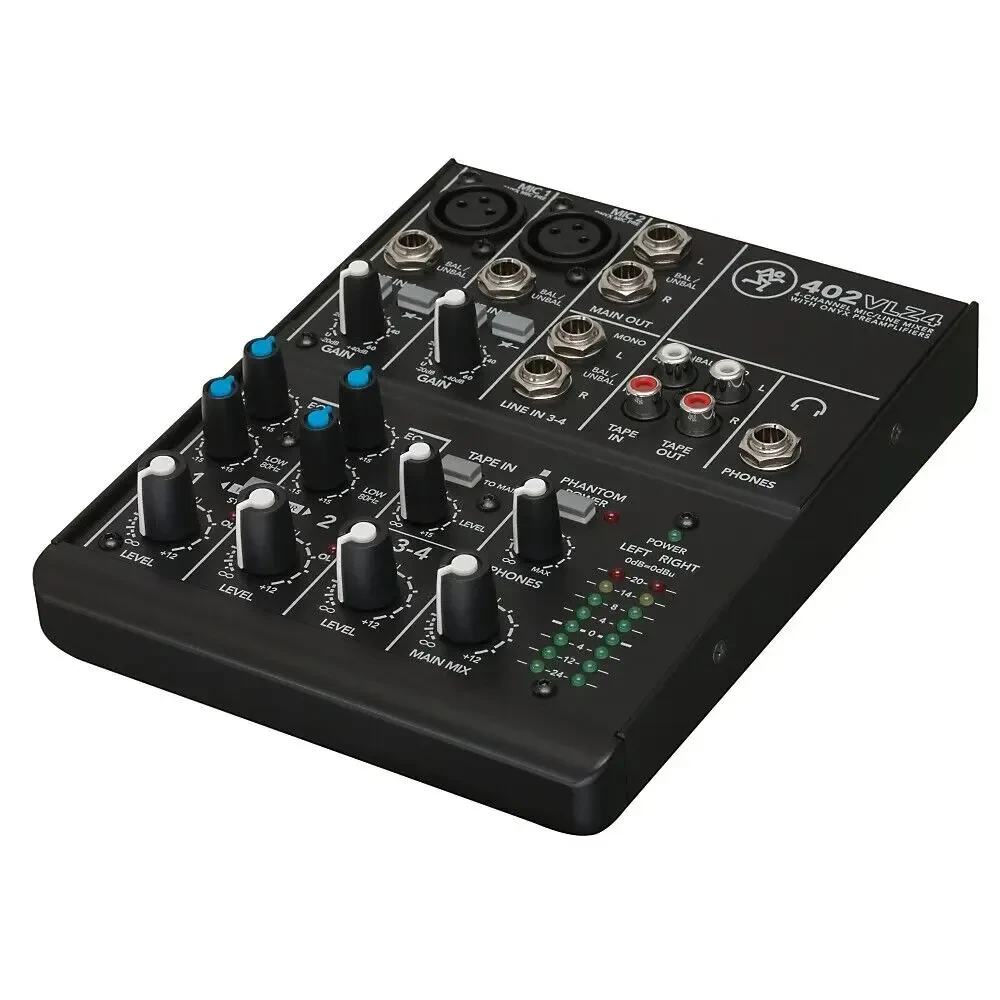

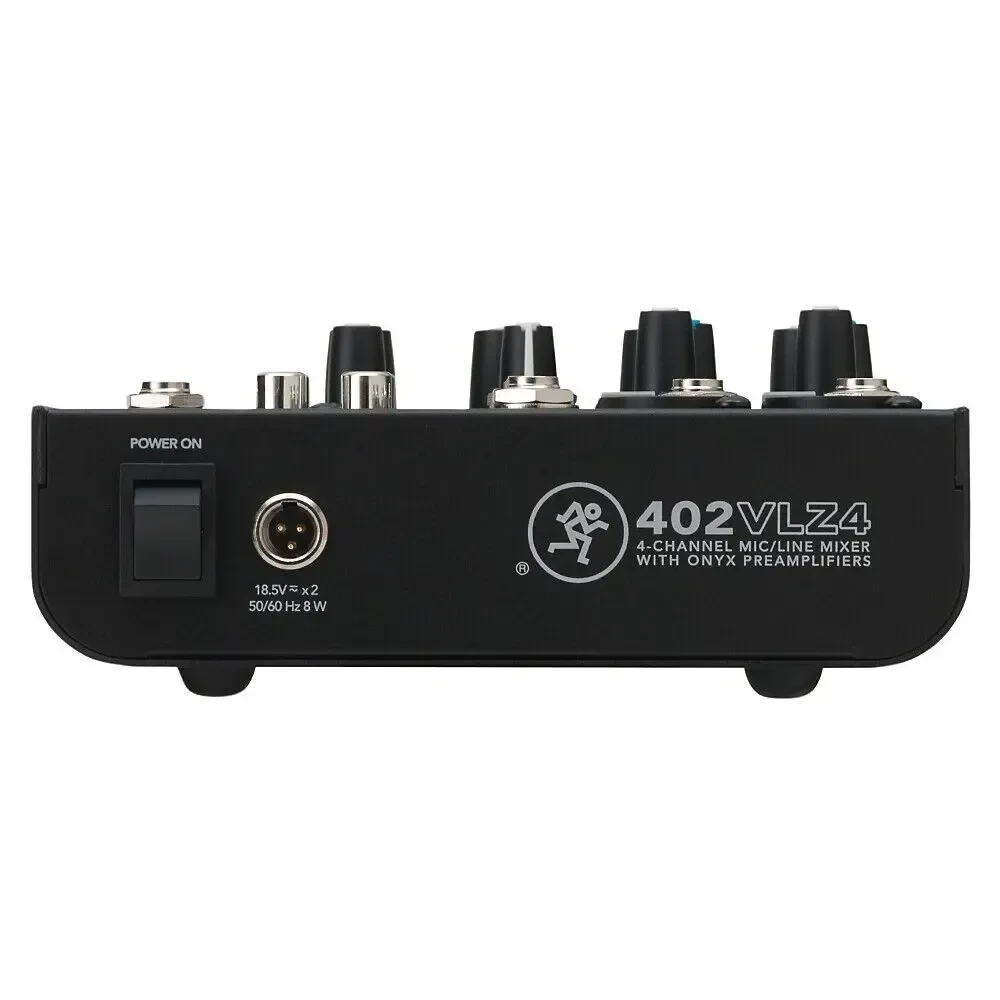

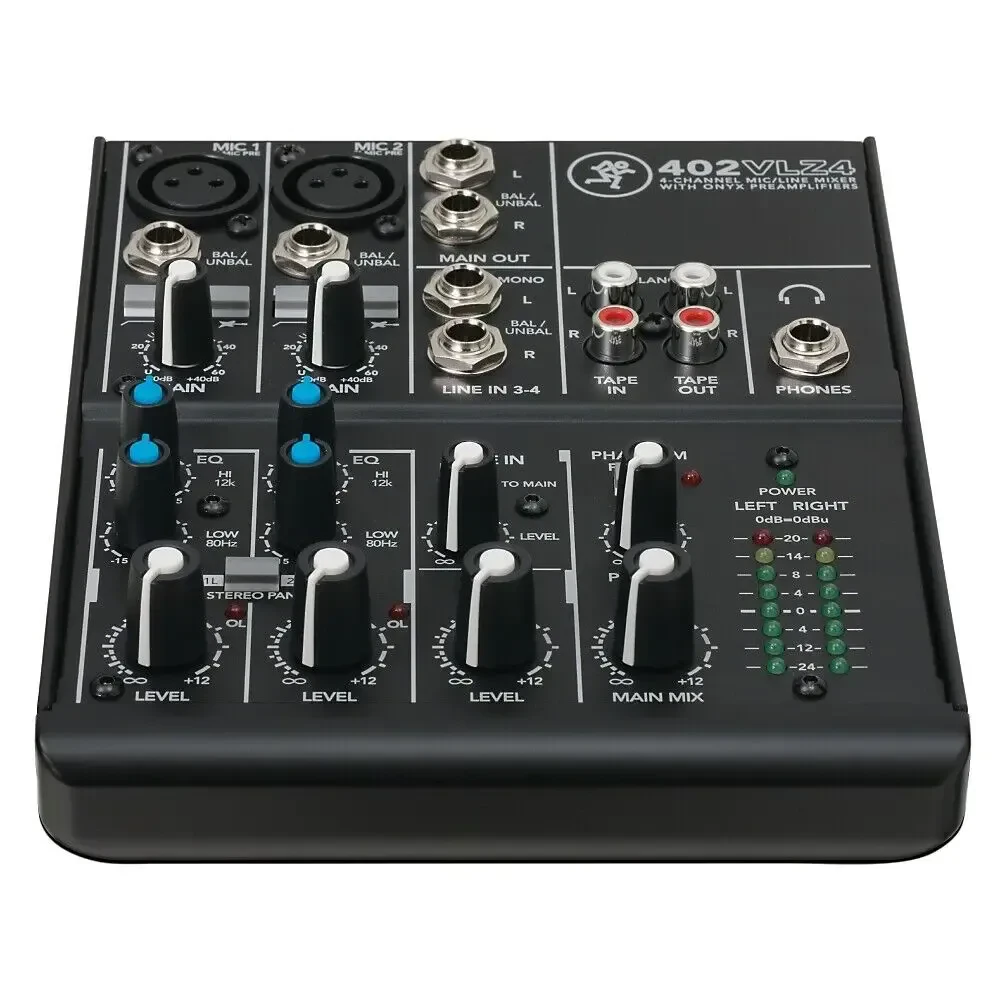

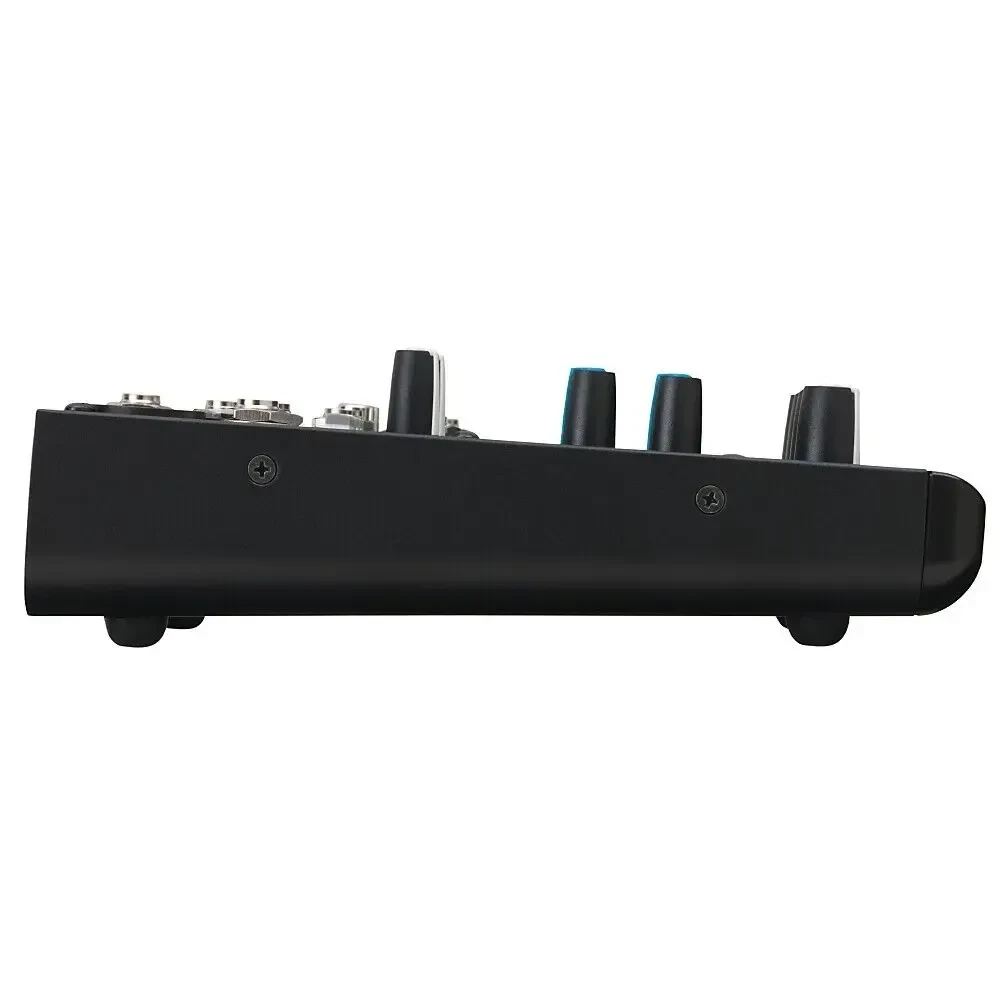

Аналоговый микшер Mackie VLZ4 Series 402VLZ4 4-Channel Ultra Compact Mixer

Main Mix Noise
(20 Hz-20 kHz bandwidth, channels 1-3 gain @ unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3-8 centered.)
Main mix knob down, channel level knobs down: XLR: -95 dBu TRS: -101 dBu
Main mix knob @ unity, channel level knobs down: XLR -90 dBu, TRS -96 dBu
Main mix knob @ unity, channel level knobs @ unity: XLR dBu-84, TRS dBu -90

THD
(1 kHz @ 30 dB gain, 20 Hz-20 kHz bandwidth) Mic pre @ insert: <0.001%

EQ
High Shelving
Low Shelving

Attenuation/Crosstalk
(1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
Main mix knob down: -75 dBu
Channel Alt / Mute switch engaged: -100 dBu
Channel level knob down: -100 dBu

Frequency Response
Mic input to main output (gain @ unity)
+0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (EIN)
(Mic input to insert send out, max gain)
150 termination: -128.5 dBu, 20 Hz-20 kHz

Common Mode Rejection Ratio (CMRR)
1 kHz: better than -70 dB

Maximum Levels
Mic in: +21 dBu
Tape in: +24 dBu
All other inputs: +22 dBu
All outputs: +22 dBu

Impedances
Mic in: 2.55
Channel insert return: 5K
All other inputs: 17K or greater
Tape out: 1.0K
Phones out: 60
All other outputs: 120

Physical Properties
Height: 7.3"
Depth: 1.6"
Width: 5.8"
Weight (with power supply): 3.0lb
Weight (without power supply): 2.5lb
