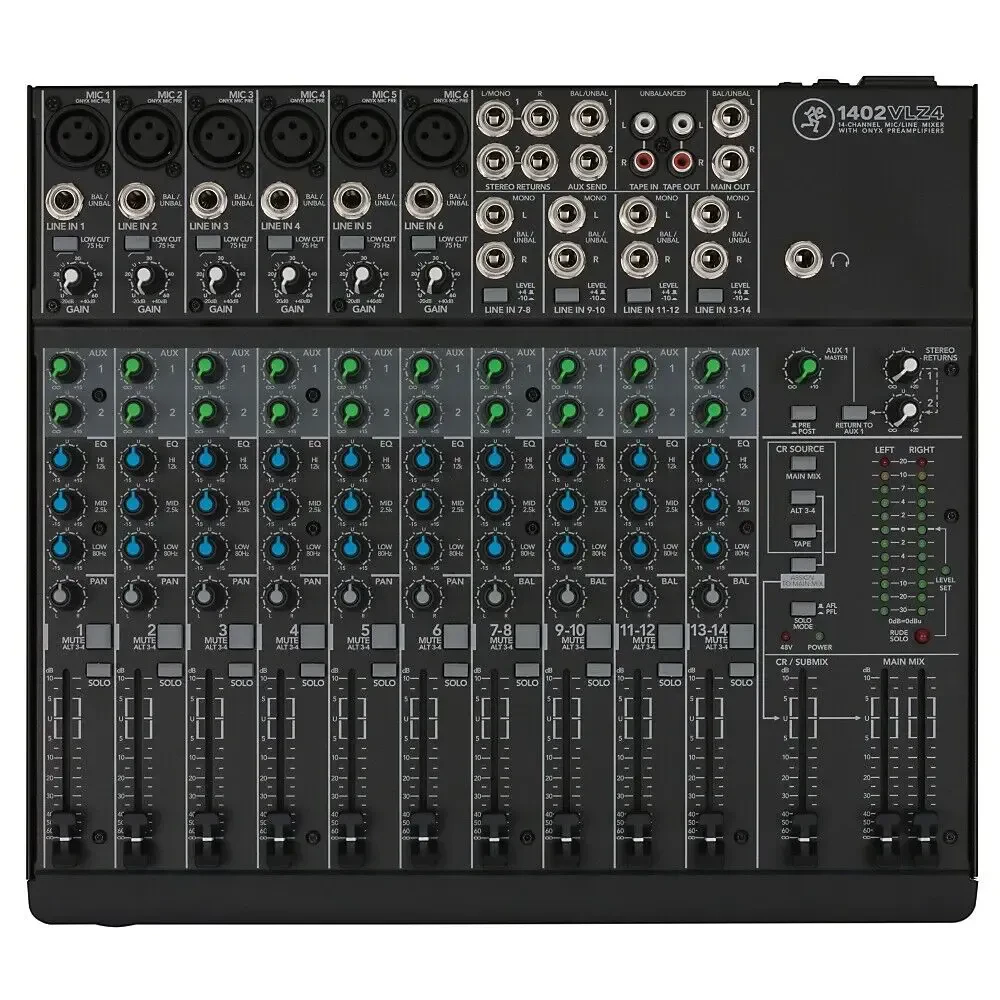

Аналоговый микшер Mackie VLZ4 Series 1402VLZ4 14-Channel Compact Mixer

Main Mix Noise
(20 Hz-20 kHz bandwidth, 1/4" Main out, channels 1-6 Trim @ unity gain, EQs flat, all channels assigned to main mix, channel 1, 3, 5 panned left, 2, 4, 6 panned right, 3-8 centered.)
Main mix fader down, channel level faders down: -101 dBu
Main mix @ unity, channel level knobs down: -91 dBu,
Main mix fader @ unity, channel level faders @ unity: -86 dBu,

THD
(1 kHz @ 35 dB gain, 20 Hz-20 kHz bandwidth) Mic pre @ insert: <0.0007%

Attenuation/Crosstalk
(1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
Main mix fader down: -100 dBu
Channel Alt / Mute switch engaged: -90 dBu
Channel level knob down: -90 dBu

Frequency Response
Mic input to main output (gain @ unity)
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (EIN)
(Mic input to insert send out, max gain)
150 termination: -128.5 dBu, 20 Hz-20 kHz

Common Mode Rejection Ratio (CMRR)
1 kHz: better than -70 dB

Maximum Levels
Mic in: +22 dBu
Tape in: +16 dBu
All other inputs: +22 dBu
Main mix XLR out: +28 dBu
All other outputs: +22 dBu

Impedances (Ohms)
Mic in: 2.5K
Channel insert return: 5K
All other inputs: 17K or greater
Tape out: 1.0K
Phones out: 60
All other outputs: 120

EQ
High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz


Physical Properties
Height: 12.5"
Depth: 3.2"
Width: 14.0"
Weight: 9.5lb
