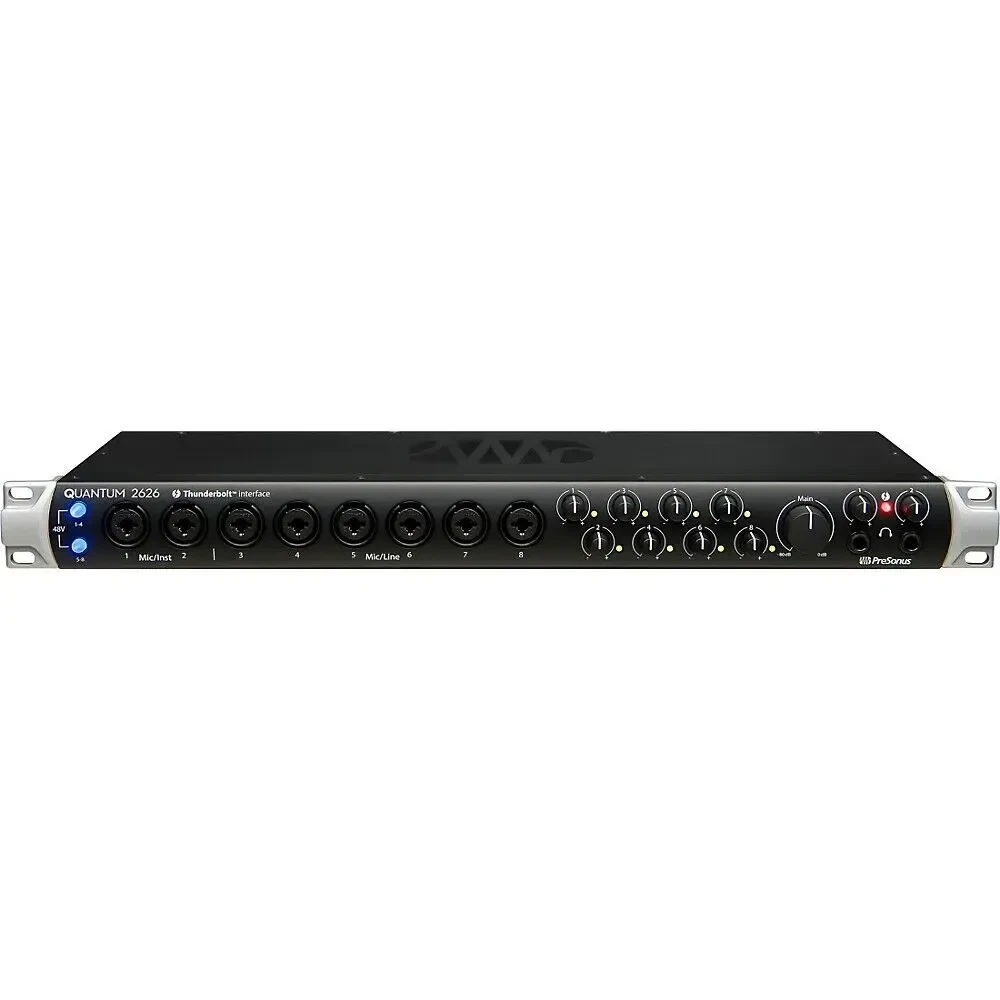

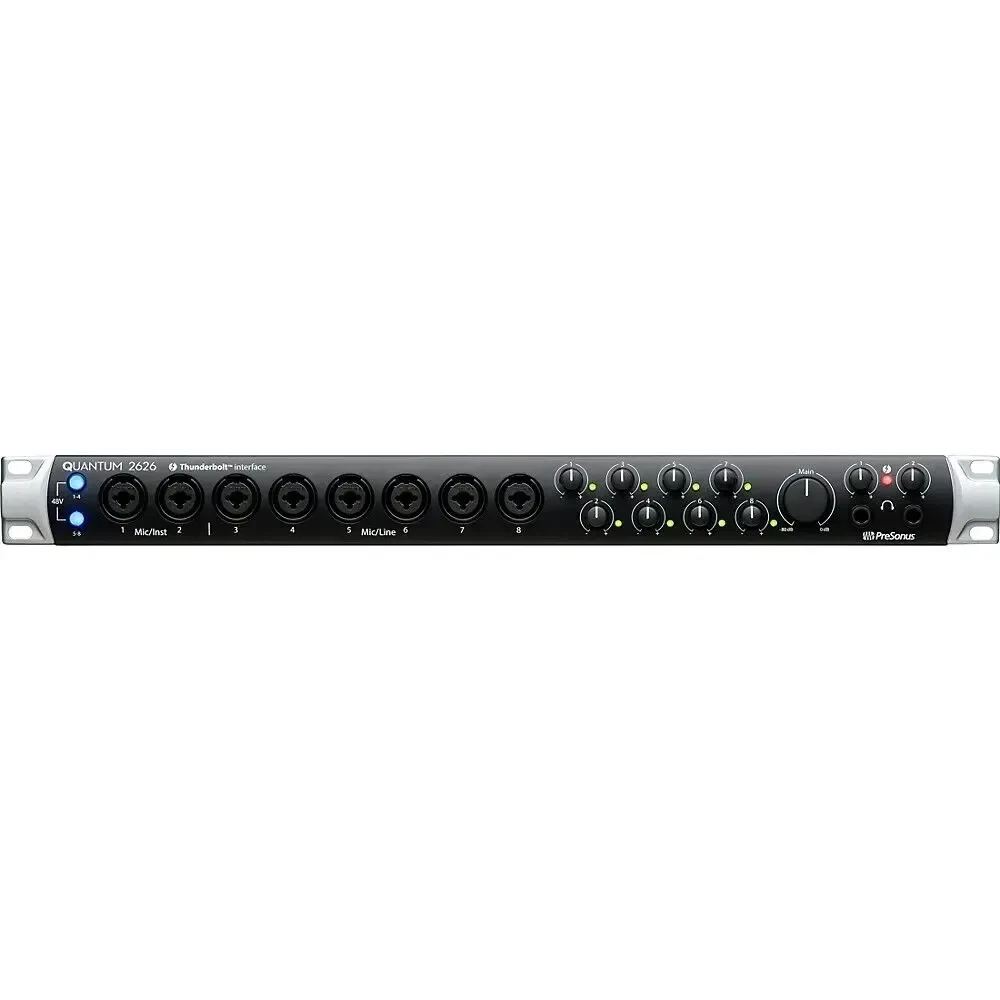

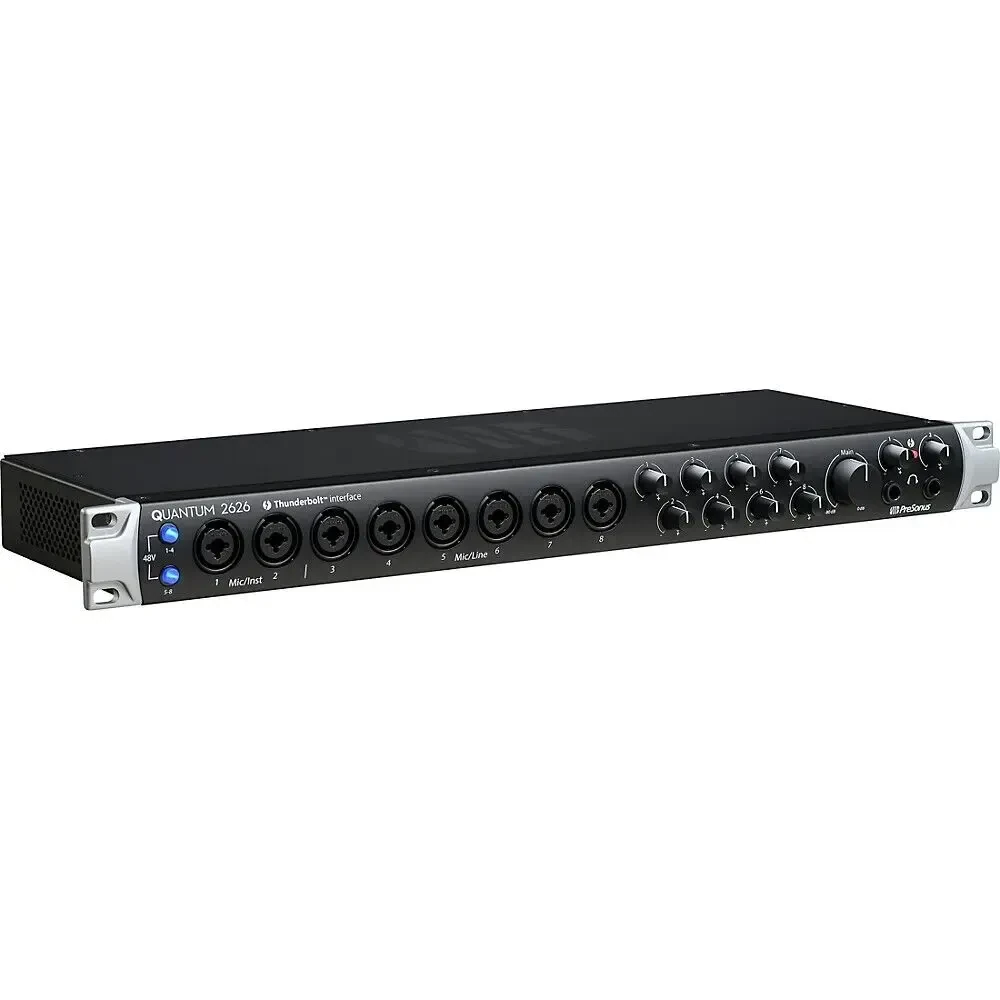

Звуковая карта внешняя PreSonus Quantum 2626 Thunderbolt 3 Audio Interface

Audio Quality
Max bit depth: 24-bit
Max sampling rate: 192kHz
Frequency response: 20Hz–20kHz
Digital Audio
Connection Type: Thunderbolt 3 (Thunderbolt 1 and 2 compatible)
ADC Dynamic Range: 115dB (A-wtd)
DAC Dynamic Range: 115dB (A-wtd)
Bit Depth: 24 bits
Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz
Microphone Preamp
Type: XLR Female (via Combo), Balanced
Maximum Input Level: +10dBu (Balanced, min. gain)
Gain Control Range: 60dB
Dynamic Range: > 110dB (A-wtd, min. gain)
EIN: < -131 dBu (max gain, 40 ohm, 22kHz BW, A-wtd)
Input Impedance: 1.6 kohm
Phantom Power: +48V, > 8 mA per input
Instrument Inputs
Type: ¼” TS Female (via Combo), Unbalanced
Maximum Input Level: +15dBu (Unbalanced, min. gain)
Gain Control Range: 60dB
Dynamic Range: > 106dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.005% (1kHz, min. gain)
Input Impedance: > 1 mohm
Line Inputs
Type: 1/4” TRS Female (via Combo), Balanced
Maximum Input Level: + 18 dBu (Balanced, min. gain)
Dynamic Range: > 118dB (A-wtd, min. gain)
Input Impedance: 10 kohm
Main and Line Outputs
Type: 1/4” TRS Female, impedance balanced, DC Coupled (Line Outputs only)
Maximum Output Level: +18 dBu (Balanced)
Frequency Response: 20Hz to 20kHz (±0.05dB, unity gain, 48kHz)
Dynamic Range: > 118dB (A-wtd)
Output Impedance: 51 ohm
Headphone Outputs
Type: 1/4” TRS Female, Stereo, Unbalanced, x2
Maximum Output Level: 175 mW/channel (56Ω load)
Dynamic Range: > 110 dB (A-wtd)
Headphone Impedance (working range): 16 ohm to 300 ohm
Clock
Jitter: < 70 ps RMS (20Hz–20kHz)
Jitter Attenuation: > 60dB (1 ns in => 1 ps out)
Power
12 VDC, 5A, external power supply
Dimensions
Height: 1.75" (44.45 mm)
Depth: 7" (177.8 mm)
Width: 19" (482.6 mm)
Weight: 6 lb. (2.72 kg)
System Requirements
Mac
Mac OS X 10.11.6 64-bit or later
Intel Core i5 or better
4GB RAM (8 GB or more recommended)
Windows
Windows 10 64-bit or later
Intel Core i5 or better
4GB RAM (8 GB or more recommended)
Mac and Windows Systems
Thunderbolt 1.0, 2.0, or 3.0 port (NOTE: Your computer's motherboard must support Thunderbolt. Thunderbolt 1 and 2 require an adapter, not included.)
Internet connection (required for Studio One Activation and Content download)
Internal or external 7200 RPM storage drive highly recommended
30GB hard disk space
Monitor with 1366x768 resolution
