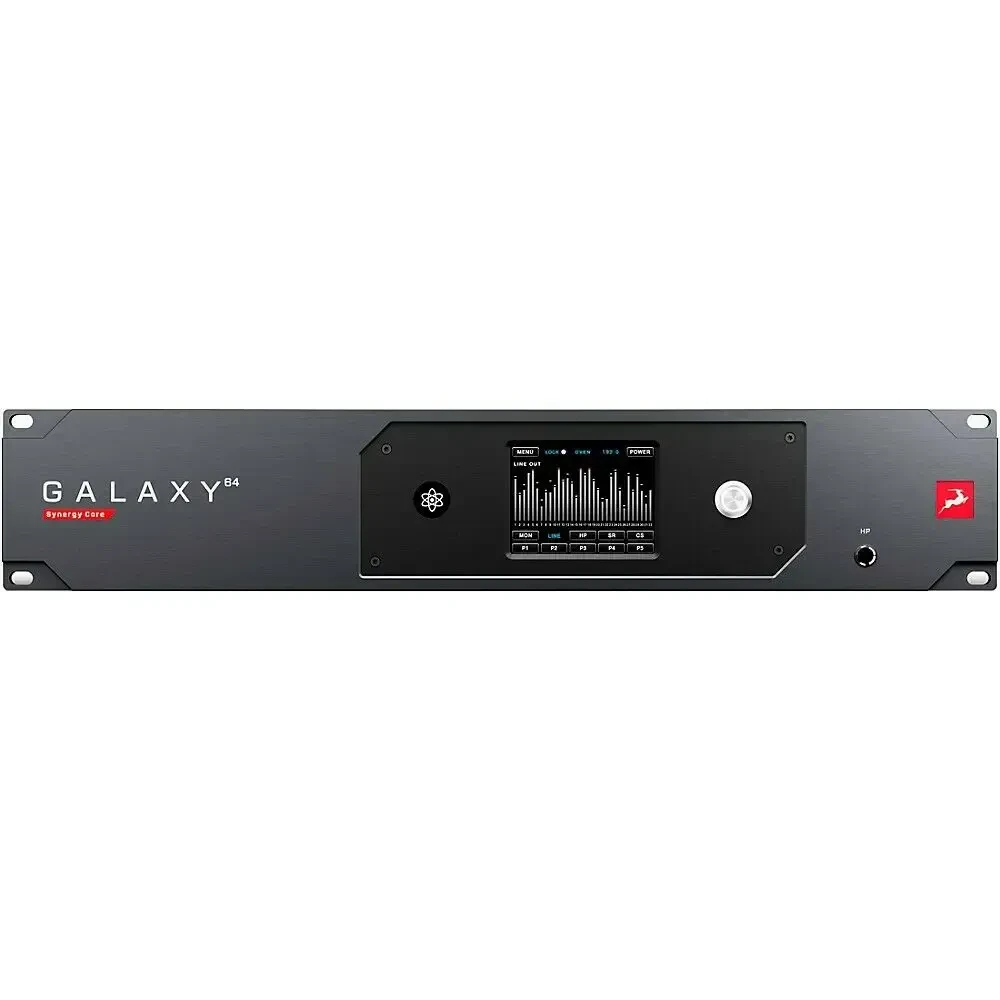

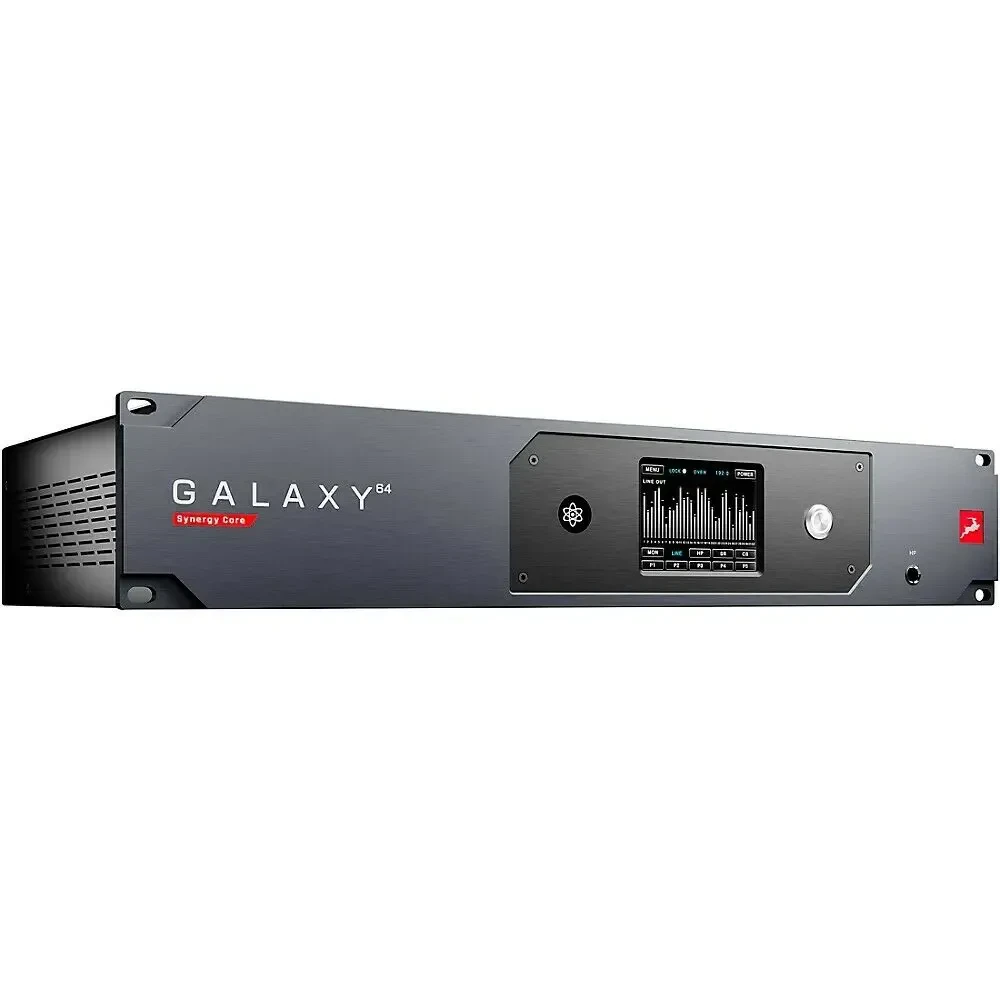

Звуковая карта внешняя Antelope Audio Galaxy 64 Synergy Core USB-C

A/D LINE INPUT
Input Connection: 8 x DC-Coupled D-Sub 25-pin
With AC/DC Coupling Switch (TASCAM Standard)
I/O Channel Count: 64 Channels
Input level trim: 14 dBu to 24 dBu in steps of 1 dB
Dynamic Range: 124 dB
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
THD+N (A): -112 dB
Impedance Load: 11.2 kOhms
D/A LINE OUTPUT
Output Connection: 8 x DC-Coupled D-sub 25-pin
(TASCAM Standard)
I/O Channel Count: 64 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 128 dB
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms
D/A MONITOR OUTPUT
Output Connection: 2 x 1/4” 6.35 mm Jack (3 pin)
Chanel Count: 2 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 130 dB
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms
HEADPHONE OUTPUT
Output Connection: 1 x 1/4” 6.35 mm Jack (3 pin)
Output level: 20dBu
Dynamic Range: 122 dB
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 120 Ohms
DIGITAL INTERFACE – THUNDERBOLT
Interface Connection: 2 x Thunderbolt 3 Ports
I/O Channel Count: 64 Channels
Daisy-chain: Supported
Remote Control: Supported, (Over USB Type-C)
Supported Sample Rates: 44.1 kHz–192 kHz, 24-bit PCM
Control Panel Support: Supported
Thunderbolt Cable: Not Included
DIGITAL INTERFACE – DANTE
Interface Connection: 2 × RJ-45 Ports, I/O
I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
Redundancy: Supported
Connectivity: Dual Ethernet, switched or redundant
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
DIGITAL INTERFACE – HDX
Interface Connection: 4 x HDX Ports
I/O Channel Count: 128 Channels (32 Per Port)
Primary/Secondary ports: 4 Primary
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
Delay Compensation: Supported
Manual Delay Compensation: Supported, (up to 128 samples)
Session I/O Support: Yes (16 x16)
DIGITAL INTERFACE – MADI
Interface Connection: 2 x Optical SC Connectors
MADI Mode: Dual Wire, Optical
SMUX: Supported
MADI Protocol: AES10-2003
I/O Channel Count: 64 Channels @44.1/48.0 kHz
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
DIGITAL INTERFACE – S/PDIF
Interface Connection: 2 x RCA Connectors
S/PDIF SRC: Supported
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
DIGITAL INTERFACE – AES/EBU
Interface Connection: 2 x XLR Connectors
AES Mode: AES/EBU
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
CLOCKING SYSTEM
Clocking Technology
4th Generation Acoustically Focused Clocking
64-Bit Jitter Management DDS
Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC
Word Clock Output: 6 x Output @ 75 Ohms 3Vpp on BNC
Loop-Sync Input: 1 x Input @ 75 Ohms 3Vpp on BNC
Loop-Sync Output: 1 x Output @ 75 Ohms 3Vpp on BNC
10M Atomic Reference Input: 1 x Input @ 75 Ohms 1Vpp on BNC
Supported sample rates: 44.1 kHz–192 kHz, 24-bit PCM
