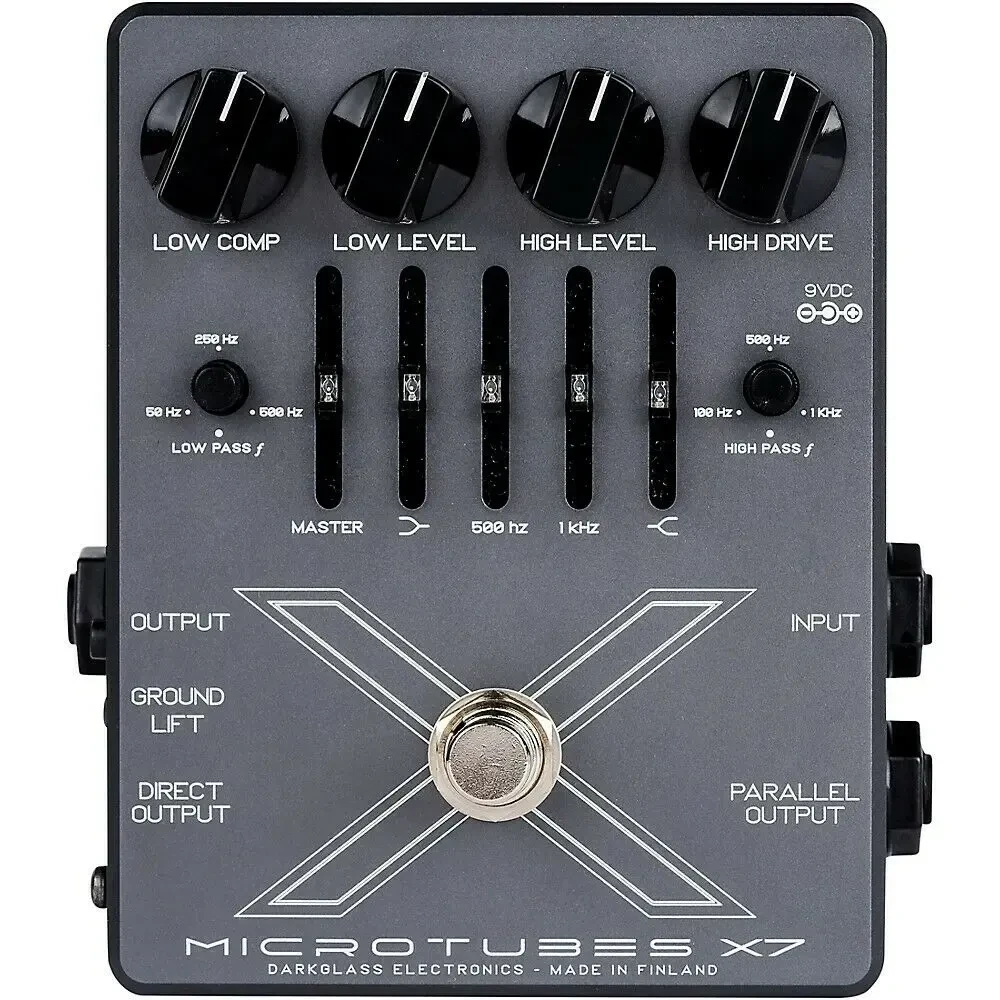

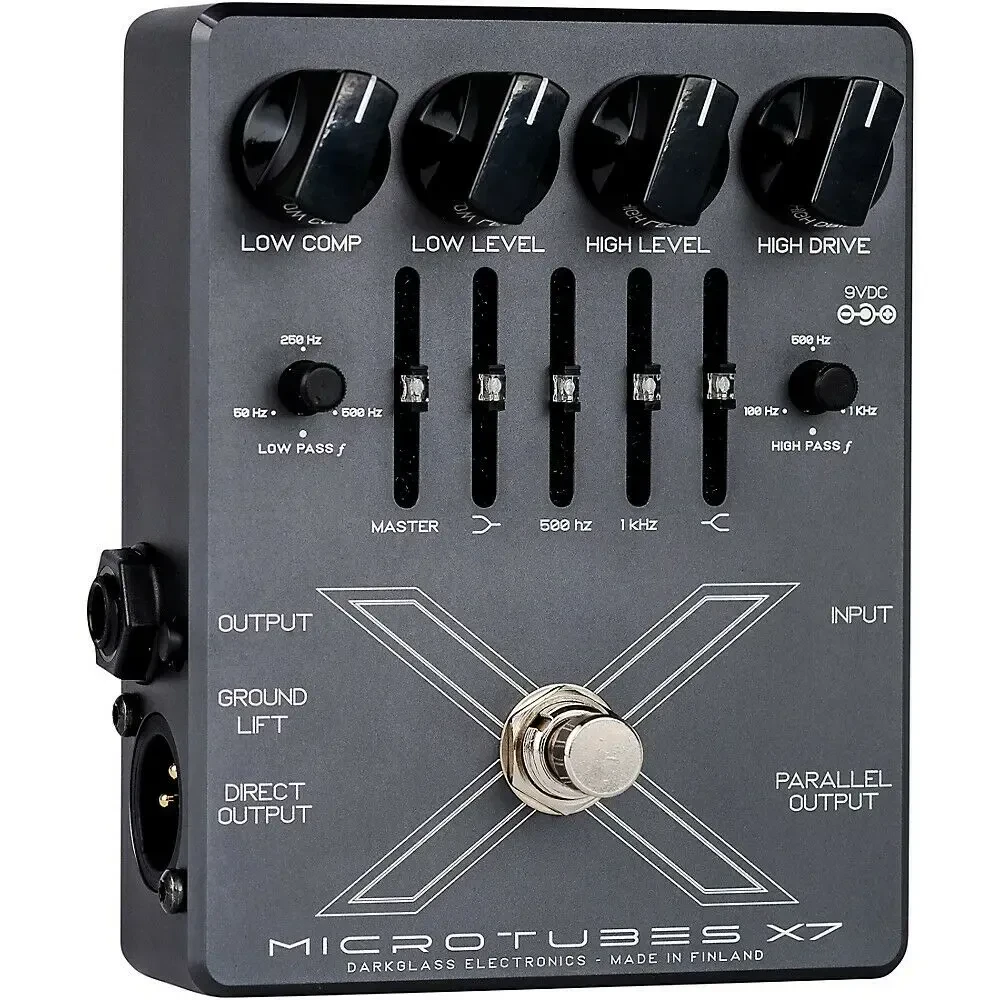

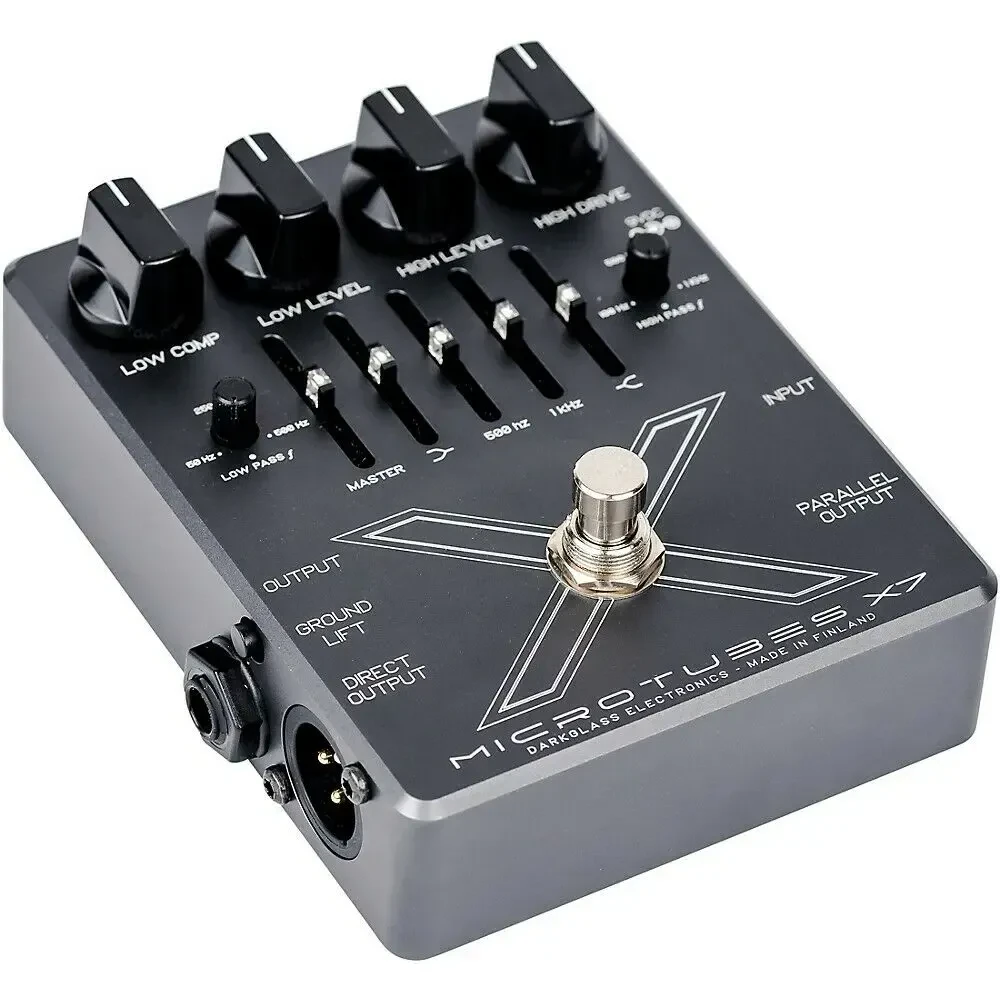

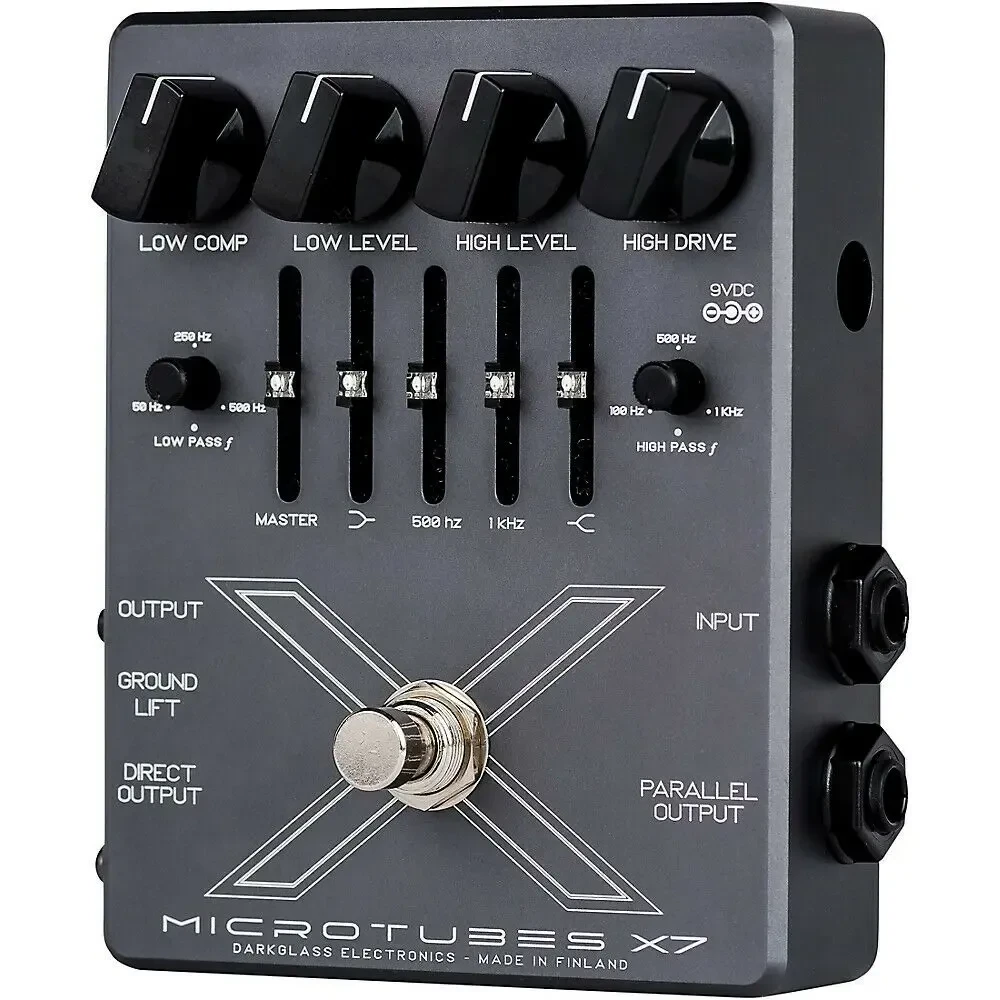

Педаль эффектов для бас-гитары Darkglass Microtubes X7 Distortion

Controls / High Side
High Pass Frequency: controls the cutoff frequency to be
distorted, ranging from 100Hz (for thicker, fuzzier saturation) or
1kHz for ultra-sharp definition.
High Drive: Sets the amount of distortion for the high pass side.
High Level: Sets the output volume of the distorted high-pass
signal.
Low Pass Frequency: controls the cutoff frequency to be mixed
back to the high-pass side. Ranging from 50Hz (for only
sub-bass) and 500Hz to preserve some clean mids.
Low Comp: Sets the amount of compression for the low-pass
signal.
Low Level: Sets the output volume of the low-pass signal.

Controls / Sliders
Master: Sets the overall volume of the unit.
Low shelf: +-12dB @ 80 Hz
500 Hz: +-12dB
1 kHz: +-12dB
High shelf: +-12dB @ 5 kHz
Input: 1/4" connector for the instrument.
Input Impedance: 1M_ impedance.
Parallel Output: hard-wired copy of the input via 1/4" connector.
Output: 1/4" connector for the amplifier or next effect in the chain.
Direct Output: Balanced output via XLR connector. When the
pedal is engaged it features a low pass filter to perfectly sculpt
the distorted signal for direct applications.
Output Impedance: 1k_.
9VDC: Center negative, regulated 9VDC only.
Current Consumption: 70mA
