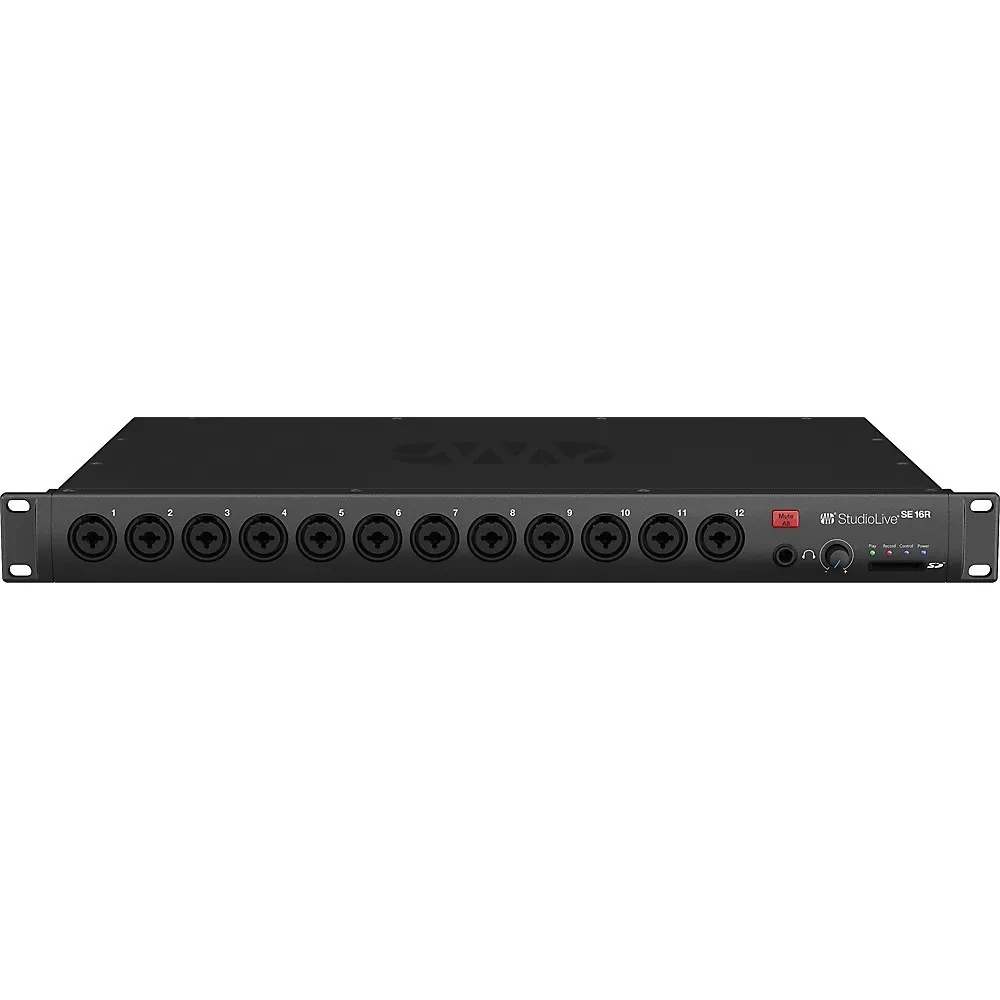

PreSonus StudioLive Series III SE 16R 16-Channel Digital Rack Mixer

General
Product type: Digital rackmount mixer
Model: StudioLive 16R
Series: StudioLive Series III
Digital Audio
Internal processing: 32-bit floating point
Bit depth: 24-bit
Dynamic range: 115dB ADC and DAC A-weighted at 48kHz
Reference level for 0dBFS: +18dBu
Total system latency: 1.9 ms analog in to analog out
Supported sample rates: 44.1kHz and 48kHz
Microphone Preamps
Connection: Combo locking XLR and 1/4" TRS
Gain range: 0dB–60dB
Input impedance: 1 kohm
Maximum input level: +12dBu at unity gain
Frequency response: 20Hz–20kHz ±0.5dB
Common mode rejection ratio: 65dB at 1kHz
Signal-to-noise ratio: 94dB A-weighted
Total harmonic distortion: Less than 0.005% at +4dBu
Phantom power: +48VDC ±2VDC
Line Inputs
Connection: RCA female unbalanced stereo pair
Maximum input level: +12dBu ±0.5dBu
Outputs
Line outputs: 1/4" TRS balanced
Line output level: +18dBu ±0.5dBu
Line output impedance: 100 ohm
XLR outputs level: +24dBu ±0.5dBu
XLR output impedance: 100 ohm
Crosstalk adjacent channels: -87dB 20Hz–20kHz
Headphones
Connection: 1/4" TRS stereo active
Frequency response: 20Hz–20kHz ±0.5dB
Maximum output: 100mW per channel at 60 ohm
Signal-to-noise ratio: 96dB
Total harmonic distortion: 0.01% at 1kHz
Recording
USB recording: USB 2.0 Type-B
Recording file format: Stereo WAV
SD media support: FAT16 SD and FAT32 SDHC
SD capacity: 2GB SD and 32GB SDHC
SD recorder bit depth: 24-bit recording and 16-bit or 24-bit playback
SD recorder sample rate: 44.1kHz or 48kHz
Networking
AVB audio network ports: Locking XLR and Ethernet
Network control port: RJ-45
Power
Voltage requirements: 100–230VAC 50/60Hz
Voltage nominal: 120V
Power consumption: 35W continuous
Power cable: IEC
Environmental
Recommended operating temperature: 32°F–104°F
Dimensions
Dimensions: 19" × 12" × 1.75"
Weight: 8.6 lb.
