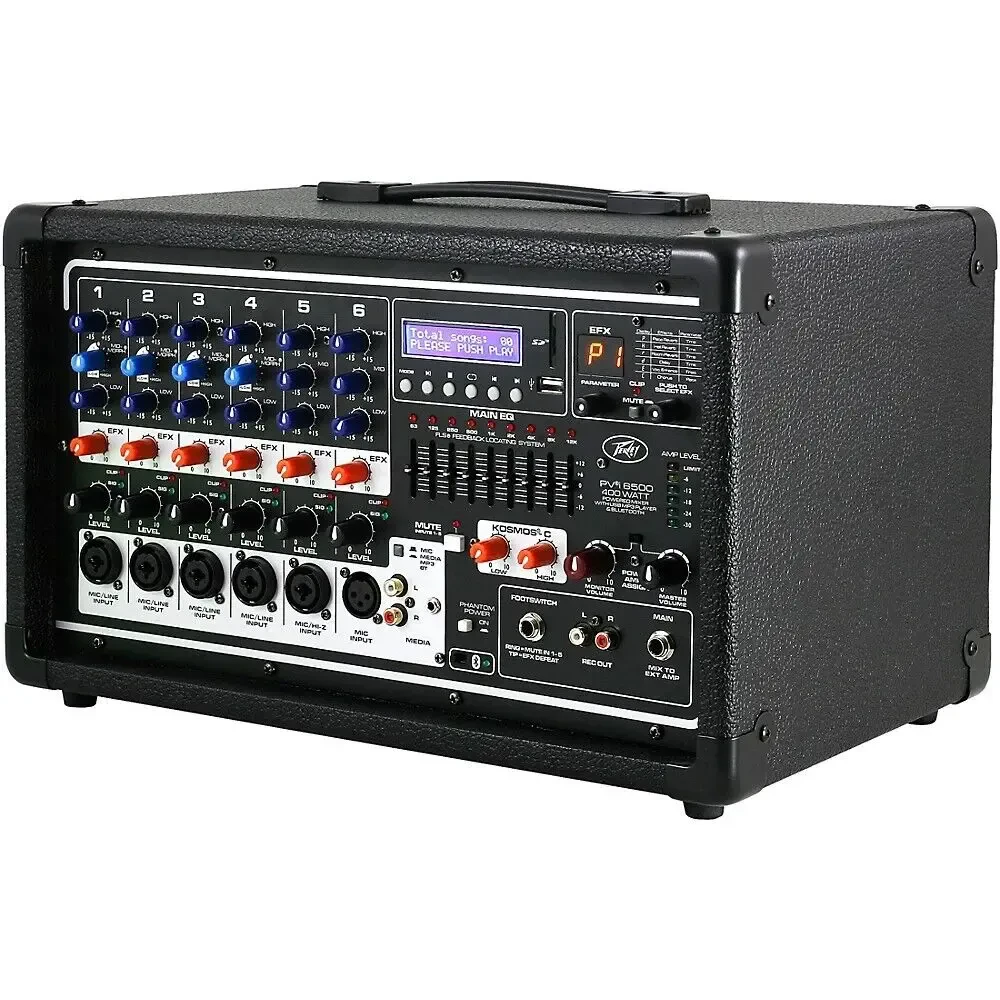

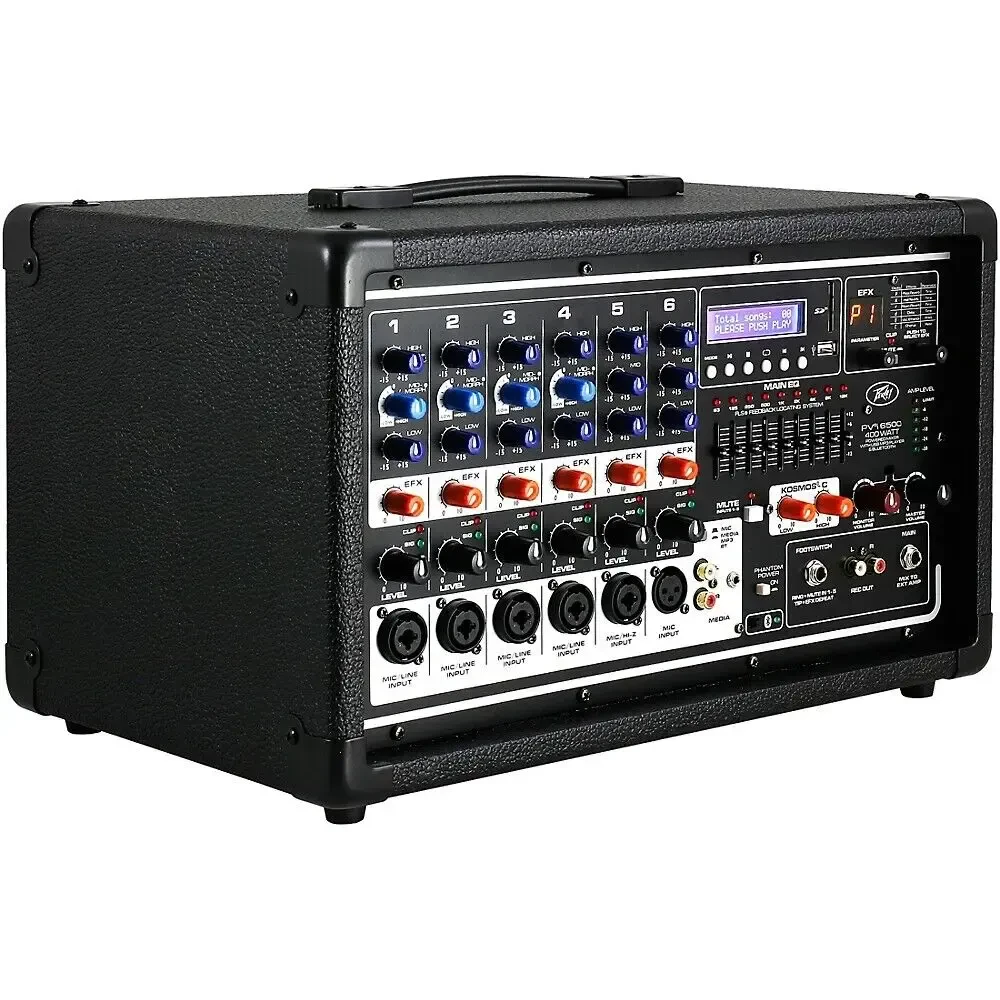

Микшер с усилителем Peavey PVi 6500 400W

INPUT SENSITIVITY
Mic In to full power at the power amp. Master Volume Nom.
Full: -40dBu
Nominal: -22dBu
Line In to full power at the power amp. Master Volume Nom.
Full: -10dBu
Nominal: +8dBu
CHANNEL EQ
Shelving EQ
Low EQ 80Hz ±15dB
Mid-Morph
Low: 250Hz ±15dB
High: 4kHz ±15dB
High EQ :12kHz ±15 dB
CLIP LED:
Clip LEDs come on 3 dB before clipping.

FREQUENCY RESPONSE:
All controls nominal (detent)
Mic to Main 20 Hz - 20 kHz +0, -1 dB
Line to Main 20 Hz - 30 kHz +0, -1 dB
Mic to Amp 50 Hz - 20 kHz +0, -3 dB
Line to Amp 40 Hz - 20 kHz +0, -3 dB

PHANTOM POWER:
+48 VOLTS

NOISE:
Main = Main line output, 22 - 22 kHz filter
Amp 1 = Amplifier output, loaded at 4 Ohms, through AP
AUX-0025 switching amplifier filter
All controls full down.
Main <-95 dBu
Amp 1 <-70 dBu
Master Volume nominal
Main <-88 dBu
Amp 1 <-67 dBu

THD:
All controls nominal
<0.01% @ main line output, -30 dBu in mic input Channel 1
<0.5% @ amp 1 @ 100 Watts into 4 Ohms
All controls nominal
<0.005% @ main line output, +4 dBu in line input Channel 1

MASTER EQ:
63Hz ±12 dB
125Hz ±12 dB
250Hz ±12 dB
500Hz ±12 dB
1kHz ±12 dB
2kHz ±12 dB
4kHz ±12 dB
8kHz ±12 dB
12kHz ±12 dB

METER ARRAY:
LIMIT
-6 dB
-12 dB
-18 dB
-24 dB
-30 dB

AMP LIMITER:
Limits amplifier power just before clipping. The limiter holds the amp power
without clipping and can be driven up to 18 dB past maximum output.

AMPLIFIER OUTPUT POWER:
120VAC
Both channels loaded at 8 ohms: 60 Watts RMS per ch
120 Watts Peak per ch
Both channels loaded at 4 ohms: 100 Watts RMS per ch
200 Watts Peak per ch

POWER REQUIREMENTS:
Domestic: 120VAC 50/60Hz 74 Watts Nominal
Export: 230VAC 50/60Hz 74 Watts Nominal

SIZE:
Dimensions: H x W x D
11.25" x 19.375" x 10.75"
Weigh t: 22.2 lbs.
